 PP Capsule Filter / PP 캡슐 필터 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
F16-61-013 |
CSMF0.45-442 |
PP Capsule Filter 0.45 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-017 |
CSMF0.6-442 |
PP Capsule Filter 0.6 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-021 |
CSMF0.8-442 |
PP Capsule Filter 0.8 um ALpHA |
1/EA |
180,100원 |
3 Day |
4 |
|
|
|
F16-61-025 |
CSMF1.2-442 |
PP Capsule Filter 1.2 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-029 |
CSMF2.4-442 |
PP Capsule Filter 2.4 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-033 |
CSMF5-442 |
PP Capsule Filter 5 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-037 |
CSMF7-442 |
PP Capsule Filter 7 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-041 |
CSMF10-442 |
PP Capsule Filter 10 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-045 |
CSMF20-442 |
PP Capsule Filter 20 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-049 |
CSMF30-442 |
PP Capsule Filter 30 um ALpHA |
1/EA |
180,100원 |
3 Day |
1 |
|
|
|
F16-61-053 |
CSMF40-442 |
PP Capsule Filter 40 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
F16-61-057 |
CSMF70-442 |
PP Capsule Filter 70 um ALpHA |
1/EA |
180,100원 |
7 Day |
0 |
|
|
|
|
 |
|
|
|
|

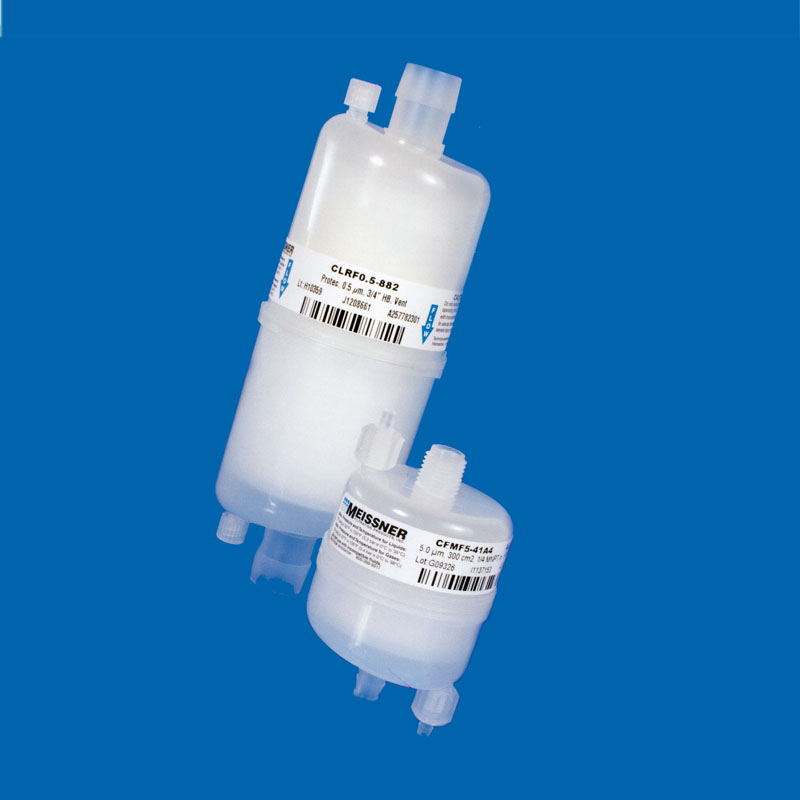

Capsule Filter, MeissNer®
공통 Specification
* Housing Material : PP
* Filtration Media : PVDF, PP, PTFE, PES
* Media Support Component : PP
* Sealing Method : Thermal Bonding
* Maximum Operating Pressure
* Liquid : 5.2 bar at 38℃
* Gas : 3.4 bar at 38℃
* Operating Temperature Range : 0℃~38℃
* Max. Temperature : 71℃ at 2.4 bar
* Vent Port
- Two Luer-Lock Port for Venting, Draining, Sampling
* Inlet Outlet : 1/4" MNPT Standard
* Optional
- 1" Sanitary Flange (Code : 00)
- 3/8" Horsbarb (Code : 22)
- 1/2" Horsbarb (Code : cc)
- 3/8" FNPT (Code : 55)
- 3/8" MNPT (Code : 66)
* Size : Φ70×h114 mm (Standard, Code : CS)
* Optional
- Φ70×h175 mm (Code : CL)
- Φ57×h83 mm (Code : CF)
- Φ32×h140 mm (Code : CM)
- Φ32×h159 mm (Code : CK)
* Sterilization : Autoclave at 121℃ (60 min), 125℃ (45 min)
* 제조 환경 : Cleanroom, 100% Integrity Tested During Manufacture.
상세 규격 표
| Cat. No |
Model |
Pore |
Size |
| F16-61-013 |
CSMF0.45-442 |
0.45 um |
Φ70×h114 mm (Code : CS) |
| F16-61-017 |
CSMF0.6-442 |
0.6 um |
| F16-61-021 |
CSMF0.8-442 |
0.8 um |
| F16-61-025 |
CSMF1.2-442 |
1.2 um |
| F16-61-029 |
CSMF2.4-442 |
2.4 um |
| F16-61-033 |
CSMF5-442 |
5 um |
| F16-61-037 |
CSMF7-442 |
7 um |
| F16-61-041 |
CSMF10-442 |
10 um |
| F16-61-045 |
CSMF20-442 |
20 um |
| F16-61-049 |
CSMF30-442 |
30 um |
| F16-61-053 |
CSMF40-442 |
40 um |
| F16-61-057 |
CSMF70-442 |
70 um |
|
|
|
|
