■ Economical, Premium Quality Filter
■ Removal Rating : 95%
■ Ultraclean : No Binder, No Adhesive, No Surfactant
■ Effective Filtration Area : 0.09 m2
■ 적용분야
- Prefiltration & Clarification of Water, Gas, Solvent, Etchant, Reasent, Photochemical, Ink
■ MeissNer / Vangard® |
|
|
|
|
|
|
|
|
 Nominal PP Capsule Filter / PP 캡슐 필터, 전처리용 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
F16-61-077 |
CSMN0.1-442 |
Nominal PP Capsule Filter 0.1 um Vangard |
1/EA |
163,900원 |
7 Day |
0 |
|
|
|
F16-61-081 |
CSMN0.2-442 |
Nominal PP Capsule Filter 0.2 um Vangard |
1/EA |
163,900원 |
7 Day |
0 |
|
|
|
F16-61-085 |

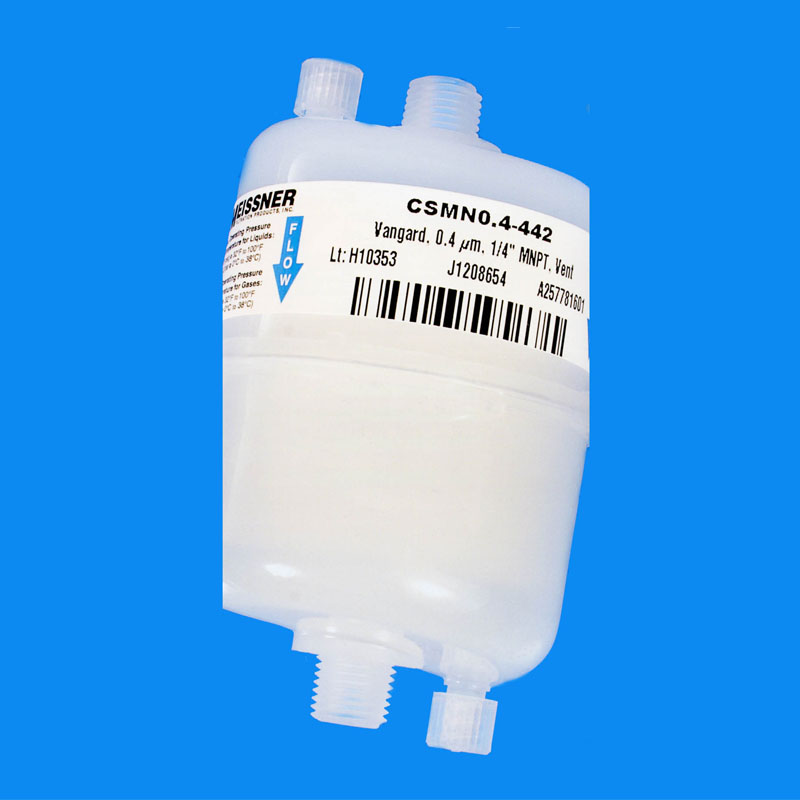

CSMN0.4-442 |
Nominal PP Capsule Filter 0.4 um Vangard |
1/EA |
163,900원 |
7 Day |
0 |
|
|
|
F16-61-089 |
CSMN1-442 |
Nominal PP Capsule Filter 1 um Vangard |
1/EA |
162,200원 |
7 Day |
0 |
|
|
|
F16-61-093 |
CSMN3-442 |
Nominal PP Capsule Filter 3 um Vangard |
1/EA |
162,200원 |
7 Day |
0 |
|
|
|
F16-61-097 |
CSMN5-442 |
Nominal PP Capsule Filter 5 um Vangard |
1/EA |
145,900원 |
7 Day |
0 |
|
|
|
F16-61-101 |
CSMN10-442 |
Nominal PP Capsule Filter 10 um Vangard |
1/EA |
171,100원 |
7 Day |
0 |
|
|
|
F16-61-105 |
CSMN30-442 |
Nominal PP Capsule Filter 30 um Vangard |
1/EA |
153,100원 |
7 Day |
0 |
|
|
|
F16-61-109 |
CSMN60-442 |
Nominal PP Capsule Filter 60 um Vangard |
1/EA |
153,100원 |
7 Day |
0 |
|
|
|
F16-61-113 |
CSMN99-442 |
Nominal PP Capsule Filter 99 um Vangard |
1/EA |
153,100원 |
7 Day |
0 |
|
|
|
|
 |
|
|
|
|
Capsule Filter, MeissNer®
공통 Specification
* Housing Material : PP
* Filtration Media : PVDF, PP, PTFE, PES
* Media Support Component : PP
* Sealing Method : Thermal Bonding
* Maximum Operating Pressure
* Liquid : 5.2 bar at 38℃
* Gas : 3.4 bar at 38℃
* Operating Temperature Range : 0℃~38℃
* Max. Temperature : 71℃ at 2.4 bar
* Vent Port
- Two Luer-Lock Port for Venting, Draining, Sampling
* Inlet Outlet : 1/4" MNPT Standard
* Optional
- 1" Sanitary Flange (Code : 00)
- 3/8" Horsbarb (Code : 22)
- 1/2" Horsbarb (Code : cc)
- 3/8" FNPT (Code : 55)
- 3/8" MNPT (Code : 66)
* Size : Φ70×h114 mm (Standard, Code : CS)
* Optional
- Φ70×h175 mm (Code : CL)
- Φ57×h83 mm (Code : CF)
- Φ32×h140 mm (Code : CM)
- Φ32×h159 mm (Code : CK)
* Sterilization : Autoclave at 121℃ (60 min), 125℃ (45 min)
* 제조 환경 : Cleanroom, 100% Integrity Tested During Manufacture.
상세 규격 표
| Cat. No |
Model |
Pore |
Size |
| F16-61-077 |
CSMN0.1-442 |
0.1 um |
Φ70×h114 mm (Code : CS) |
| F16-61-081 |
CSMN0.2-442 |
0.2 um |
| F16-61-085 |
CSMN0.4-442 |
0.4 um |
| F16-61-089 |
CSMN1-442 |
1 um |
| F16-61-093 |
CSMN3-442 |
3 um |
| F16-61-097 |
CSMN5-442 |
5 um |
| F16-61-101 |
CSMN10-442 |
10 um |
| F16-61-105 |
CSMN30-442 |
30 um |
| F16-61-109 |
CSMN60-442 |
60 um |
| F16-61-113 |
CSMN99-442 |
99 um |
|
|
|
|
