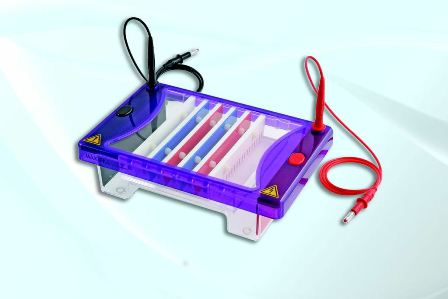

The multiSUB Choice offers a wide degree of versatility. Three tray options are available ??/strong> 15 x 7cm, 15 x 10cm and 15 x 15cm ??allowing the choice of one, two or all three gel length options at the time of purchase. Furtherpurchases of additional accessories are no longer required. Maximising comb and tray options allow up to 210 samples to be resolved per gel. The 15cm total run length allows restriction fragment or other close MW sample bands to be easily separated and identified. Speed loading is accomplished using 10, 14, 16, 18, 28 or 30 sample multi-channel pipette compatible combs. Fabricated multiSUB choice stretch units are available with optional 15 x 20cm and 15 x 25cm gel trays and four 28-sample combs for those researchers wanting to perform higher resolution separation of more samples over a longer distance. multiSUB Choice Trio includes all 3 tray sizes for optimum versatility and value.
mulitSUB Choice Specifications:
Gel dimensions (w x l)
15 x 7cm 15 x 10cm 15 x 15cm 15 x 20cm 15 x 25cm
Unit dimensions (w x l x h)
17.5 x 26.5 x 9cm 17.5 x 41 x 9cm (Stretch models only)
Max. sample capacity
15 x 7cm tray ??70 samples 15 x 10cm tray ??140 samples 15 x 15cm tray ??210 samples 15 x 20cm tray ??280 samples 15 x 25cm tray ??350 samples
