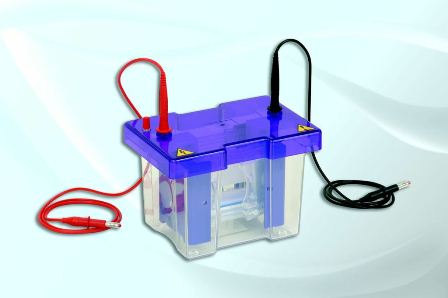

SCILOGEX omniPAGE Mini Vertical Electrophoresis EquipmentThe preferred unit for routine mini protein electrophoresis, the omniPAGE mini is constructed using the latest injection moulding manufacturing techniques. This gives a high quality, low cost product with unsurpassed finish, durability and strength. The unit incorporates a sealing system which is compatible with all major types of 8 x 10cm and 10 x 10cm precast gel. Gel casting and running utilise the same insert, no transfer of glass plates during gel casting is necessary. The insert contains the option of sliding clamps or just one screw per clamping bar side allowing very rapid set up of both hand cast and precast gels. Ultra soft silicone seals and pressure bars which surround the glass plates guarantee leak proof gel casting. 2mm thick glass plates prevent breakage and have bonded spacers for convenience. Accessory electroblotting and tube gel modules are available which use the same outer tank and lid.
Use OmniPAGE mini vertical systems to: ??Run a maximum of 4 gels within an hour ??Perform 2-D and blotting within a day ??Undertake discovery projects ??Screen new samples and evaluate sample preparation conditions
omniPAGE Mini Specifications:
Number of gels
1 - 4
Precast gel compatibility (Up to 2 gels/run)
IDGel?? Novex짰, SERVAGel?? Thermo Precise Pierce Protein Gel
Total buffer Volume for 2 gels
Min: 250mL; Max: 1200mL
Total buffer volume for 4 gels
Min: 250mL; Max: 1200mL
Standard run time for SDS-PAGE
1-2 hours at from 90-225V
Recommended power supplies
NanoPAC-300 CS-300V CS-3AMP for blotting
Handcast gels (Up to 4 gels/run)
Using VS10 glass plates
Plate dimensions (w x h x t)
10 x 10 x 0.2cm
Gel Dimensions (w x h)
8 x 8.5cm
Unit Dimensions (w x d x h)
19 x 13 x 15cm
Weight ( kg )
1.8
omniPAGE Mini Ordering Information:
Cat. No.
Description
CVS10D
omniPAGE Mini, 10 x 10cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 12 sample, 1mm thick combs. CLAMP VERSION
CVS10DSYS
omniPAGE Mini, 10 x 10cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 12 sample, 1mm thick combs including caster. CLAMP VERSION
CVS10PRE
omniPAGE Mini, 10 x 10cm Dual. No accessories. CLAMP VERSION
CVS10DSYS-CU
omniPAGE Mini, 10 x 10cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 12 sample, 1mm thick combs including caster. CLAMP VERSION, External casting upstand
MSMINICP
Cool-Pack and Platform for MSMINI
MS7-x -yLG
Combination Comb and Loading Guide for MSMINI (x = comb well number, y = comb thickness)
MSMINIBSB
Buffer Saver Blocks for MSMINI, pk/2 saves 100ml of buffer
