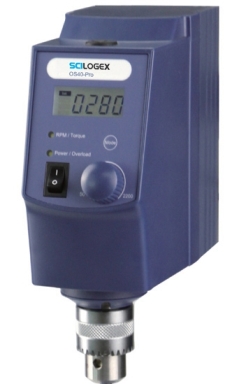

OS40-Pro LCD Digital Overhead Stirrer Features:
- Accurate microprocessor stirring speed control guarantees speed precision
- Anti-spill microprocessor control slow start up prevents sample spills
- A through-shaft design allows for easy adjustment of the impeller position
- Large chuck diameter for many shaft types
- LCD display and control. Set value and actual value can be displayed for real-time monitoring of torque and speed
- Over torque protection automatically stops the motor
- Pass through stirrer rods accepted
- PC control via RS232 interface, for control and documenting all measured values via PC. Parameters can be set to carry out safety monitoring
OS40-Pro LCD Digital Overhead Stirrer Specifications
| Maximum stirring capacity |
: |
40 Liters |
| Maximum torque |
: |
60Ncm |
| Viscosity maximum |
: |
50000mPas |
| Speed range |
: |
50-2200rpm |
| Speed display accuracy |
: |
± 3rpm |
| Speed display resolution |
: |
± 1rpm |
| Chuck diameter range |
: |
0.5-13mm |
| Dimensions |
: |
3.3W x 8.7H x 7.3Dinches |
| Motor rating input |
: |
120W |
| Motor rating output |
: |
100W |
| Weight |
: |
5.5lbs |
| Voltage |
: |
220Volts 60Hz, 130W |
OS40-Pro LCD Digital Overhead Stirrer Accessories:
| Catalog No. |
|
Description |
|
| 18900131 |
: |
Plate stand with support rod and clamp |
|
| 18900071 |
: |
Cross stirrer, 316L stainless steel |
|
| 18900072 |
: |
Straight stirrer, 316L stainless steel |
|
| 18900073 |
: |
Paddle stirrer, 316L stainless steel |
|
| 18900074 |
: |
Centrifugal stirrer, 316L stainless steel |
|
| 18900075 |
: |
Cross stirrer, PTFE coated |
|
| 18900076 |
: |
Straight stirrer, PTFE coated |
|
| 18900077 |
: |
Paddle stirrer, PTFE coated |
|
| 18900078 |
: |
Centrifrugal stirrer, PTFE coated |
|
|
