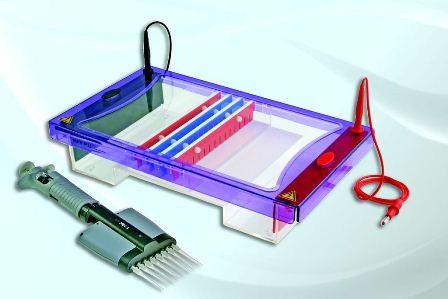

The multiSUB Maxi is primarily designed for resolution of high numbers of samples such as from Cloning or PCR. The multiSUB Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis. Four gel tray sizes are available ??20 x 10cm, 20 x 15cm, 20 x 20cm and 20 x 25cm. Multichannel pipette compatible combs up to 40 sample facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel.Casting dams allow gels to be rapidly cast externally while the MultiSub??unit is in use for running gels.
mulitSUB Maxi Specifications:
Gel dimensions (w x l)
20 x 10cm 20 x 20cm 20 x 15cm 20 x 25cm
Unit dimensions (w x l x h)
23 x 39.5 x 9cm
Max. sample capacity
20 x 10cm - 200 samples 20 x 15cm - 350 samples 20 x 20cm - 450 samples 20 x 25cm - 550 samples
Buffer Volume
1200ml
Combs available,No. of samples
Thicknesses
1, 2, 4, 10, 16, 20MC, 25, 30, 36, 40MC, 50
0.75mm, 1mm, 1.5mm, 2mm
mulitSUB Maxi Ordering Information:
Cat. No.
Description
MSMAXI10
multiSUB Maxi, 20 x 10cm UV Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
MSMAXI15
multiSUB Maxi, 20 x 15cm UV Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
MSMAXI20
multiSUB Maxi, 20 x 20cm UV Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
MSMAXIDUO
multiSUB Maxi, 20 x 10 & 20 x 20cm UV Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
MSMAXI25
multiSUB Maxi 15, 20 x 25cm UV Tray, 2 x 20 sample, 1mm thick combs, casting dams, loading guides
MSMAXICP
Cool-Pack and Platform for MSMAXI
MS20-x -yLG
Combination Comb and Loading Guide for MSMAXI (x = comb well number, y = comb thickness)
MSMAXIBSB
Buffer Saver Blocks for MSMAXI, pk/2 saves 450ml of buffer
