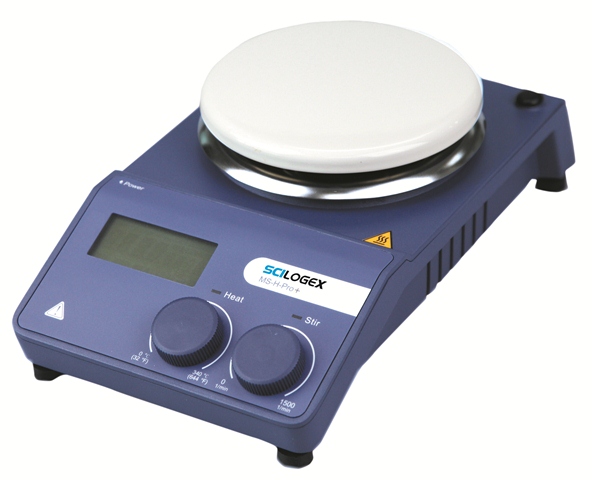

MS-H-Pro-Plus Circular-top Digital Magnetic Hotplate Stirrer Features:
- Easy-to-read backlit LCD display
- Heat only, stir only or heat and stir together functions
- Automatic spin bar retrieval
- Low temperature stability
- Stirring and heating functions can be saved in memory
- Accessory PT-1000 Sensor for medium temperature control available
- Accessory reaction blocks for flasks and vessels available
- Electronic speed control for constant speed even during changes in load
- Maintenance free brushless motor for long life
- High magnetic adhesion
- Free software for control & data logging by PC
- cTUVus approved
- CE Marked
New! Free PC-Software for control & data logging via RS232. Please click here to download.
|
 |
MS-H-Pro-Plus Circular-top Digital Magnetic Hotplate Stirrer Specifications:
| Hotplate/Stirrer |
: |
MS-H-Pro-Plus |
| Temp range |
: |
Ambient - 340 °C |
| Speed range |
: |
100 - 1500 rpm |
| Temp increments |
: |
1 °C |
| Temp control accuracy with PT1000 |
: |
± 0.2 °C |
| Heating rate (1 liter water) |
: |
6K/min |
| Speed/Heat display |
: |
LCD (backlit) |
| Motor type |
: |
Brushless |
| Stirring capacity |
: |
20L |
| Plate diameter |
: |
5.3' |
| Plate material |
: |
Stainless steel or Ceramic
|
| Dimensions |
: |
11'L x 61/4'W x 3'H |
| Weight |
: |
6lbs |
| Voltage |
: |
220Volts 60Hz, 550W |
MS-H-Pro-Plus Circular-top Digital Magnetic Hotplate Stirrer Ordering Information:
| Catalog No. |
: |
Model |
86114201
|
: |
MS-H-Pro-Plus LCD Digital Hotplate Stirrer with S/Steel Plate, 220V 60Hz |
86124201
|
: |
MS-H-Pro-Plus LCD Digital Hotplate Stirrer with Ceramic Plate, 220V 60Hz |
.jpg) |
.jpg) |
| STAINLESS STEEL PLATE |
CERAMIC PLATE
|
MS-H-Pro Plus Circular-top Digital Magnetic Hotplate Stirrer Accessories:
| Catalog No. |
: |
Description |
|
| 18900016 |
: |
SCILOGEX PT1000 Sensor |
 |
| 18900136 |
: |
SCILOGEX PT1000 Sensor with glass protective sleeve for use with corosive chemicals |
|
| 18900001 |
: |
Carrying plate for quarter pie reaction blocks |
 |
| 18900065 |
: |
Containment ring to secure quarter pie reaction blocks in hotplate |
 |
| 18900002 |
: |
Red quarter reaction block, 11 holes 4 ml reaction vessel 15.2mm dia x 20mm depth |
 |
| 18900003 |
: |
Purple quarter reaction block, 4 holes 20 ml reaction vessel 28mm dia x 24mm depth |
 |
| 18900004 |
: |
Blue quarter reaction block, 4 holes 30 ml reaction vessel 28mm dia x 30mm depth |
 |
| 18900005 |
: |
Black quarter reaction block, 4 holes 16ml reaction vessel 28mm dia x 43mm depth |
 |
| 18900048 |
: |
Green quarter reaction block, 6 holes 8ml reaction vessel 17.75mm dia x 26mm depth |
 |
| 18900049 |
: |
Gold quarter reaction block, 4 holes 16ml reaction vessel 21.6mm dia x 31.7mm depth |
 |
| 18900080 |
: |
Reaction block for 50ml round bottom flasks (4 flasks maximum capacity) |
 |
| 18900081 |
: |
Reaction block for 100ml round bottom flask (2 flasks maximum capacity) |
 |
| 18900082 |
: |
Reaction block for 250ml round bottom flask (1 flask maximum capacity) |
 |
| 18900083 |
: |
Reaction block for 500ml round bottom flask (1 flask maximum capacity) |
 |
| 18900016 |
: |
SCILOGEX PT1000 Sensor |
|
