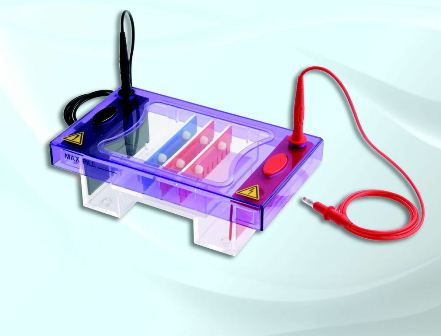

With gel tray options of 10 x 7cm and 10 x 10cm, the multiSUB Midi has been designed for routine horizontal gel electrophoresis. Extending only the width of this unit allows more samples to be resolved per gel than the multiSUB Mini without a significant increase in buffer or gel volumes.
A maximum of 100 samples per gel can be resolved making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths. Loading guides allow easy well identification and sample loading. Scoops available as an option allow safe transfer of gels.
mulitSUB Midi Specifications:
Gel dimensions (w x l)
10 x 7cm 10 x 10cm
Unit dimensions (w x l x h)
12.5 x 22 x 9cm
Max. sample capacity
10 x 7cm tray ??50 samples 10 x 10cm tray ??100 samples
Buffer Volume
300ml
Combs available,No. of samples Thicknesses
1, 2, 4, 8, 10MC, 12, 16, 20MC, 25
0.75, 1, 1.5, 2mm
mulitSUB Midi Ordering Information:
Cat. No.
Description
MSMIDI7
multiSUB Midi, 10 x 7cm UV Tray, 2 x 16 sample combs, loading guides and dams
MSMIDI10
multiSUB Midi, 10 x 10cm UV Tray, 2 x 16 sample combs, loading guides and dams
MSMIDIDUO
multiSUB Midi, 10 x 7cm & 10 x 10cm UV Tray, 2 x 16 sample combs, loading guides and dams
MSMIDICP
Cool-Pack and Platform for MSMIDI
MS10-x -yLG
Combination Comb and Loading Guide for MSMIDI (x = comb well number, y = comb thickness)
MSMIDIBSB
Buffer Saver Blocks for MSMIDI, pk/2 saves 100ml of buffer
