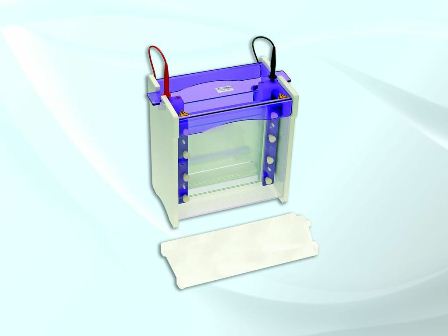

The preferred unit for maxi protein electrophoresis, the omniPAGE maxi unit combines convenient ease of use features with high resolution separations. Simple set up using ultra soft silicone seals guarantees trouble free glass plate loading and gel casting. Dual gaskets on the gel running insert, along with notched and plain glass plates, ensure leak proof gel running. Rapid set up cooling retains resolution in extended separations and also saves on buffer volume without affecting run quality. Glass plates reduce breakage and have bonded spacers for added convenience. A wide range of accessories is available allowing many techniques to be performed using the same unit. Prep combs can be used to maximize sample loading and recovery. Accessory electroblotting and tube gel modules are available which use the same outer tank and lid.
omniPAGE Maxi Specifications:
Plate dimensions, Gel dimensions (w x l)
20 x 20cm 16 x 17.5cm
Unit dimensions (w x l x h)
26 x 16 x 28cm
Max. sample capacity
192 samples, 48 samples per gel
Buffer volume
Min 1200ml; Max 5600ml
Combs available, No. of samples: Thicknesses:
1, 5, 10, 18MC, 24, 30, 36MC, 48
0.75, 1, 1.5, 2mm
omniPAGE Maxi Ordering Information:
Cat. No.
Description
VS20D
omniPAGE Maxi, 20 x 20cm Dual with Glass Plates with bonded 1mm thick spacers, 2x 24 sample combs, cooling pack, dummy plate
VS20DSYS
omniPAGE Maxi, 20 x 20cm Dual with Glass Plates with bonded 1mm thick spacers, 2x 24 sample combs, cooling pack, dummy plate and Casting Base
CVS10PRE
omniPAGE Maxi, 20 x 20cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 24 sample, 1mm thick combs including caster, External casting upstand
VS20WEXCASTER
VS20 External Casting Stand - No Casting Base
VS20CAST
20 x 20cm Casting Base
VS20ICB
Maxi Cooling Pack
VS20-x -LG
Loading guides for omniPAGE mini combs, x = comb well number
