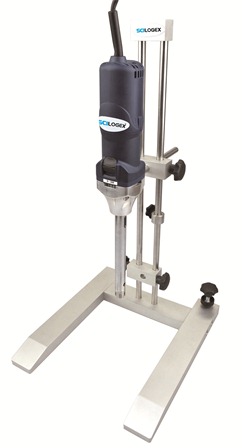

The Scilogex D500 Homogenizer has a maximum speed of 29,000rpm and reduces processing time significantly. The smooth motor drive provides safe and comfortable operation. An overload protection feature increases the life span of the motor. Smooth acceleration also prevents unnecessary spills. A flexible configuration of different generators and rotors make the D500 highly adaptive to most applications. The generator shaft is constructed of 316L stainless steel. Reliable results are assured with extremely high precision and speed. Assembly and disassembly of rotors requires no special tools. For applications/product selection please click here.
D500 Homogenizer Features:
Ideal for mixing, emulsification, shredding, or chopping
Generators and rotors can be combined to suit various applications
Easy to hold and light weight for one hand operation
Generators are made of 316L Stainless Steel with PTFE bushings
Autoclavable stainless steel shafts
All shafts are easily removed for cleanup
High speed motor 10,000 to 29,000 rpm
Suitable for solvents & abrasive substances
D500 Homogenizer Specifications:
Speed range
:
10,000 - 29,000rpm
Sample volume range
:
10 - 5000ml
Speed control
:
6 position control dial
Motor type
:
Universal motor, 500 Watt
pH range
:
2 - 13
Fineness
:
Suspensions & Emulsion 10-15μm & 1-10μm
Noise emission
:
< 72 dB(A) at 29,000 rpm
Dimensions
:
2.5L x 2.5W x 9H inches (drive only)
Weight
:
20lbs (with stand) 1.8lbs (drive only)
Voltage
:
220Volts, 60Hz
D500 HomogenizerOrdering Information:
Cat. No.
Description
85020101
:
SCILOGEX D500 Homogenizer Package - Drive Motor, DS-500/1 20mm dia. generator, with S20C/SR20 flat head-open slot coarse generator, 215mm immerse length, for solid/liquid media, volumes 10-5000ml and with H-600 stand, 220V, 60Hz
85020201
:
SCILOGEX D500 Homogenizer Package - Drive Motor, DS-500/2 20mm dia. generator, with S20F/ER20 flat head-open slot fine generator, 215mm immerse length, for water in oil or oil in water emulsions, volumes 10- 50000ml and with H-600 stand 220V, 60Hz
85020301
:
SCILOGEX D500 Homogenizer Drive Motor, 220V/60Hz
D500 HomogenizerAccessories:
Cat. No.
Description
18900115
:
DS-500/1 20mm dia. generator, with S20C/SR20 flat head-open slot coarse generator, 215 immerse length for solid/liquid media, volumes 10-5000ml
18900116
:
DS-500/2 20mm dia. generator, with S20F/ER20 flat head-open slot fine generator, 215 immerse length for Water in Oil or Oil in Water emulsions, volumes 10-5000ml
