Offers the capacity of two mini gels on a single gel
Rapid gel casting and loading
Optional low or high buffer volumes
Rapid set up cooling
(0개)

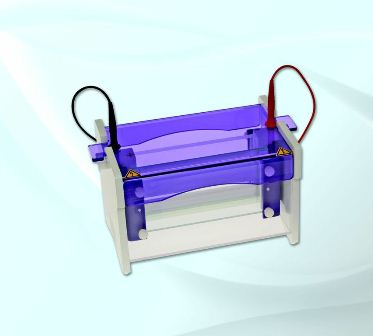

SCILOGEX omniPAGE Mini Wide Vertical Electrophoresis Equipment
The omniPAGE mini wide vertical gel unit with an active gel width of 18cm effectively allows double the number of samples to be resolved as the omniPAGE mini unit. This allows consistency of sample comparison on a single gel and is designed for those with greater than 20 samples to compare and resolve. Simple set up using ultra soft silicone seals guarantees trouble free glass plate loading and gel casting. Dual gaskets on the gel running insert along with notched and plain glass plates ensure leak proof gel running. Rapid set up cooling retains resolution in extended separations and also saves on buffer volume without affecting run quality. 4mm thick glass plates reduce breakage and have bonded spacers for added convenience. A wide range of accessories is available allowing many techniques to be performed using the same unit. Prep combs can be used to maximise sample loading and recovery. Accessory electroblotting and tube gel modules are available which use the same outer tank and lid. Typical Applications include Mini SDS PAGE, Native PAGE, Gradient, Second dimension and Nucleic acid separations
omniPAGE Mini Wide Specifications:
Plate dimensions, Gel dimensions (w x l)
20 x 10cm 18 x 8cm
Unit dimensions (w x l x h)
26 x 16 x 16cm
Max. sample capacity
192 samples, 48 samples per gel
Buffer volume
Min 600ml; Max 2800ml
Combs available, No. of samples: Thicknesses:
1, 5, 10, 18MC, 24, 30, 36MC, 48
0.75, 1, 1.5, 2mm
omniPAGE Mini Wide Ordering Information:
Cat. No.
Description
VS10WD
omniPAGE Mini Wide, 20 x 10cm Dual, 2 sets of Glass Plates with 1mm thick bonded Spacers, 2 x 24 sample, 1mm thick combs, cooling pack
VS10WDSYS
omniPAGE Mini Wide, 20 x 10cm Dual, 2 sets of Glass Plates with 1mm thick bonded Spacers, 2 x 24 sample, 1mm thick combs, cooling pack including caster
CVS10PRE
omniPAGE Mini Wide, 20 x 10cm Dual, 2 sets of Glass Plates, 1mm thick bonded Spacers, 2 x 24 sample, 1mm thick combs including caster, External casting upstand
mulitSUB Mini Wide Accessories Ordering Information:
VS10WEXCASTER
VS10W External Casting Upstand - No Casting Base
VS20CAST
20 x 10cm Casting Base
VS20DCASTM
Replacement Silicone Mat for 20 x 10cm Casting Base
VS10WDIRM
Inner Running Module
VS20-x -LG
Loading guides for omniPAGE mini combs, x = comb well number
VS10WNG
20 x 10cm Notched Glass Plates 4mm thick (pk/2)
VS10WPG
20 x 10cm Plain Glass Plates 4mm thick (pk/2)
VS10WNGS0.75
20 x 10cm Notched Glass Plates with 0.75mm Bonded Spacers (pk/2)
VS10W-IEFKIT
IEF Conversion lit for 2 x 7cm IPG strips or 2 x 8cm Gels
VS10WPGSO.75
20 x 10cm Plain Glass Plates with 0.75mm Bonded Spacers (pk/2)
VS10WNGS1
20 x 10cm Notched Glass Plates with 1mm Bonded Spacers (pk/2)
VS10WPGS1
20 x 10cm Plain Glass Plates with 1mm Bonded Spacers (pk/2)
VS10WPGS1.5
20 x 10cm Plain Glass Plates with 1.5mm Bonded Spacers (pk/2)
VS10WPGS2
20 x 10cm Plain Glass Plates with 2mm Bonded Spacers (pk/2)
