Rotor capacity: 8 x 15ml / 12 x 10ml/7ml/5ml vacutainer
Adapters for various sized tubes
Analog control
(0개)

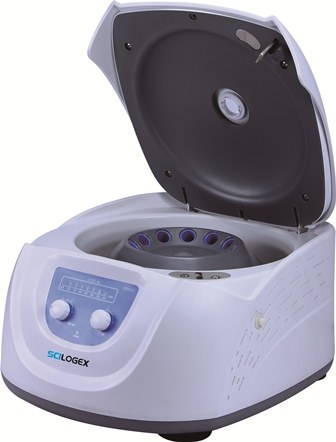

DM0412E Clinical Centrifuge:
The DM0412E Clinical Centrifuge is ideal for the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories.
The DM0412E is the economy version of the DM0412, however this centrifuge still conforms to international safety standards and regulations.
SCILOGEX clinical centrifuges are certified with CE, cTUVus and FCC. MCA test according to IEC/EN61010-2-20 including explosion-proof and bio-safe tests. Passed EN61010-2-101:2002 requirements for invitro diagnostic (IVD) medical equipment.
DM0412E Clinical Centrifuge Features:
Operation can be timed from 0 seconds to 30 minutes or continuous running
Gentle braking at low speeds with efficient separation
Quick spins are possible by pressing and holding PULSE key
Automatic release the lid when operation has stopped to save processing time
Can be pulse accelerated and held at speed
High strength plastic rotor and excellent balance technology for quiet and stable operation
DM0412E Clinical Centrifuge Specifications:
Centrifuge
:
DM0412
Speed
:
0 - 4500 rpm, analog control
Rotor Capacity
:
8 x 15ml centrifuge tubes, 12 x 10ml/7ml/5ml vacutainer
Max. RCF
:
2490 X g
Run Time
:
0secs to 30mins Timer or Continuous Operation
Dimensions
:
(L) 11.0 X (W) 10 X (H) 5.5 inches
Weight
:
14lbs
Voltage
:
110-240V, 50/60Hz
DM0412E Clinical Centrifuge Tube Compatibility:
Tubes
Quantity
Dimensions
Adapters/Plugs Required
Maximum Speed
Radius
Maximum RCF
8 x 15ml
Conical
Centrifuge
Tubes
17mmØ x 120mmL
None
4500rpm
11cm
2490xg
12 x 1.5-5ml Vacu Tubes
13mmØ x 82mmL
4500rpm
9.8cm
2218xg
12 x 4-7ml Vacu Tubes
13mmØ x 106mmL
4500rpm
11cm
2490xg
12 x 4-7ml Vacu Tubes
16mmØ x 75mmL
4500rpm
9.8cm
2218xg
12 x 8.5-10ml
Vacu Tubes
16mmØ x 107mmL
4500rpm
11cm
2490xg
12 x 2.7-3ml
(EU) Collection Tube
11mmØ x 66mmL
4500rpm
9.8cm
2218xg
12 x 7.5-8.2ml (EU) Collection Tube
15mmØ x 92mmL
4500RPM
11CM
2490XG
DM0412E Clinical Centrifuge Ordering Information:
Catalog No.
:
Description
91308343
:
SCILOGEX DM0412E ClinicalCentrifuge, c/w 8 x 15ml Rotor, 110-240V, 50/60Hz
