랩캠퍼스(Labcampus) : Chromatography Column / 크로마토그래피 컬럼, PTFE 콕크, LukeGL®

(0개)

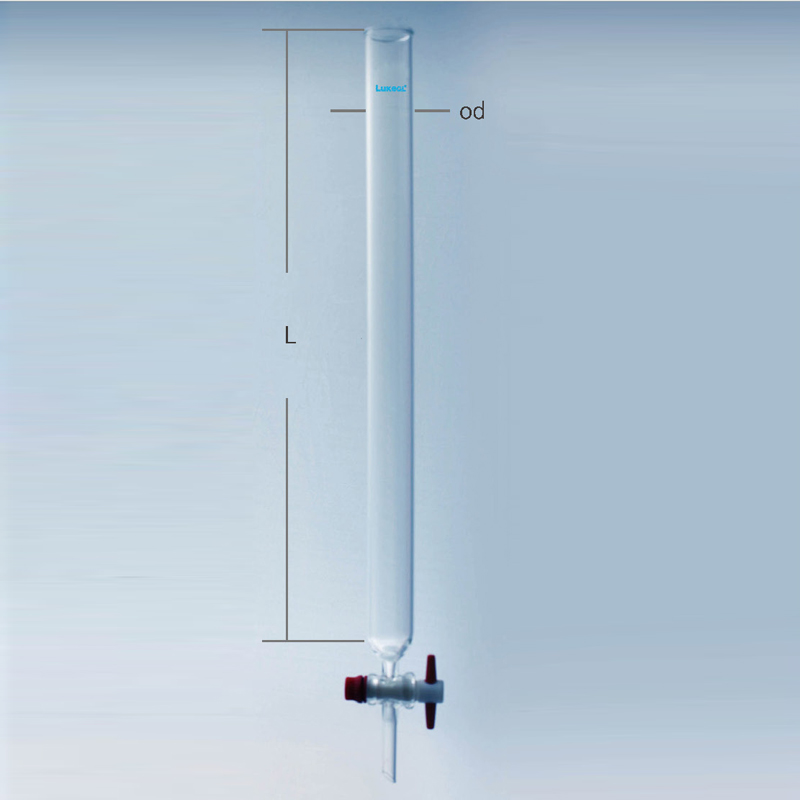

Column, 기본형
Cat. No	Model	Bore	용량	컬럼 O.D.	길이 (L)
C08-10-006	5435701	2.5 mm	7 ml	Φ10 mm	200 mm
C08-10-012	5435702		10 ml		250 mm
C08-10-018	5435703		12 ml		300 mm
C08-10-024	5435704		23 ml	Φ15 mm	250 mm
C08-10-030	5435705		28 ml		300 mm
C08-10-036	5435706		38 ml		400 mm
C08-10-042	5435707		44 ml	Φ19 mm	250 mm
C08-10-048	5435708		52 ml		300 mm
C08-10-054	5435709		70 ml		400 mm
C08-10-060	5435710		85 ml	Φ25 mm	250 mm
C08-10-066	5435711		100 ml		300 mm
C08-10-072	5435712		135 ml		400 mm
C08-10-078	5435713		170 ml		500 mm
C08-10-084	5435714		270 ml	Φ38 mm	300 mm
C08-10-090	5435715		360 ml		400 mm
C08-10-096	5435716		450 ml		500 mm
C08-10-102	5435717	4.0 mm	650 ml	Φ50 mm	400 mm
C08-10-108	5435718		830 ml		500 mm
C08-10-114	5435719		990 ml		600 mm
C08-10-120	5435720	6.0 mm	1130 ml	Φ65 mm	400 mm
C08-10-126	5435721		1690 ml	Φ65 mm	600 mm
C08-10-132	5435722		1530 ml	Φ75 mm	400 mm
C08-10-138	5435723		2300 ml	Φ75 mm	600 mm

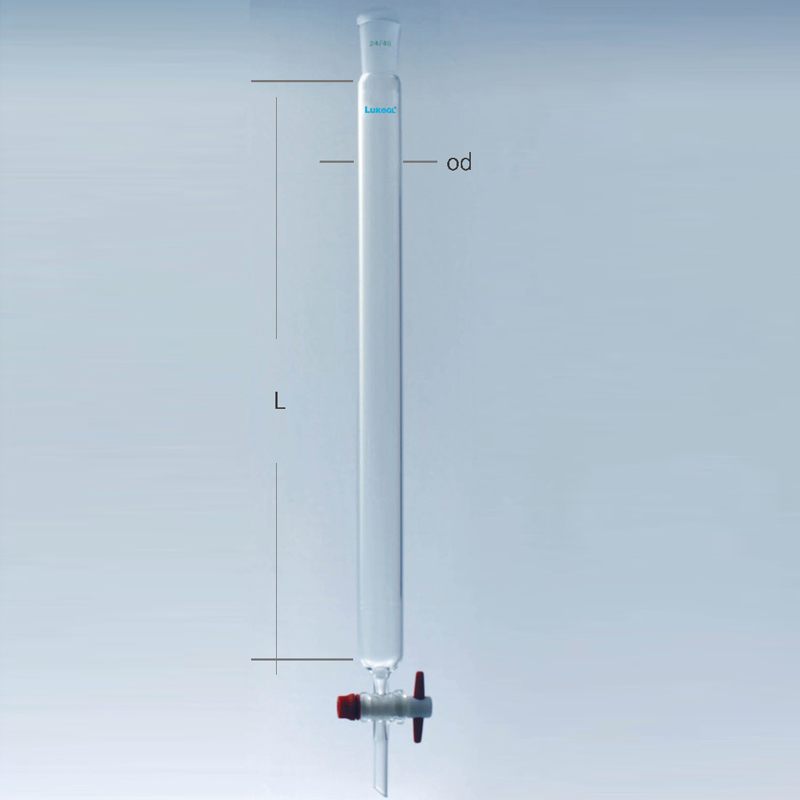

Columns with Top Joint, 상부 죠인트 부착형 (Joint Size 24/40)
Cat. No	Model	Bore	용량	컬럼 O.D.	길이 (L)
C08-10-282	5435901	2.5 mm	7 ml	Φ10 mm	200 mm
C08-10-288	5435902		10 ml		250 mm
C08-10-294	5435903		12 ml		300 mm
C08-10-300	5435904		23 ml	Φ15 mm	250 mm
C08-10-306	5435905		28 ml		300 mm
C08-10-312	5435906		38 ml		400 mm
C08-10-318	5435907		44 ml	Φ19 mm	250 mm
C08-10-324	5435908		52 ml		300 mm
C08-10-330	5435909		70 ml		400 mm
C08-10-336	5435910		85 ml	Φ25 mm	250 mm
C08-10-342	5435911		100 ml		300 mm
C08-10-348	5435912		135 ml		400 mm
C08-10-354	5435913		170 ml		500 mm
C08-10-360	5435914		270 ml	Φ38 mm	300 mm
C08-10-366	5435915		360 ml		400 mm
C08-10-372	5435916		450 ml		500 mm
C08-10-378	5435917	4.0 mm	650 ml	Φ50 mm	400 mm
C08-10-384	5435918		830 ml		500 mm
C08-10-390	5435919		990 ml		600 mm
C08-10-396	5435920	6.0 mm	1130 ml	Φ65 mm	400 mm
C08-10-402	5435921		1690 ml	Φ65 mm	600 mm
C08-10-408	5435922		1530 ml	Φ75 mm	400 mm
C08-10-414	5435923		2300 ml	Φ75 mm	600 mm
