랩캠퍼스(Labcampus) : Chromatography Column with Glass Filter / 크로마토그래피 컬럼, PTFE 콕크, LukeGL®

(0개)

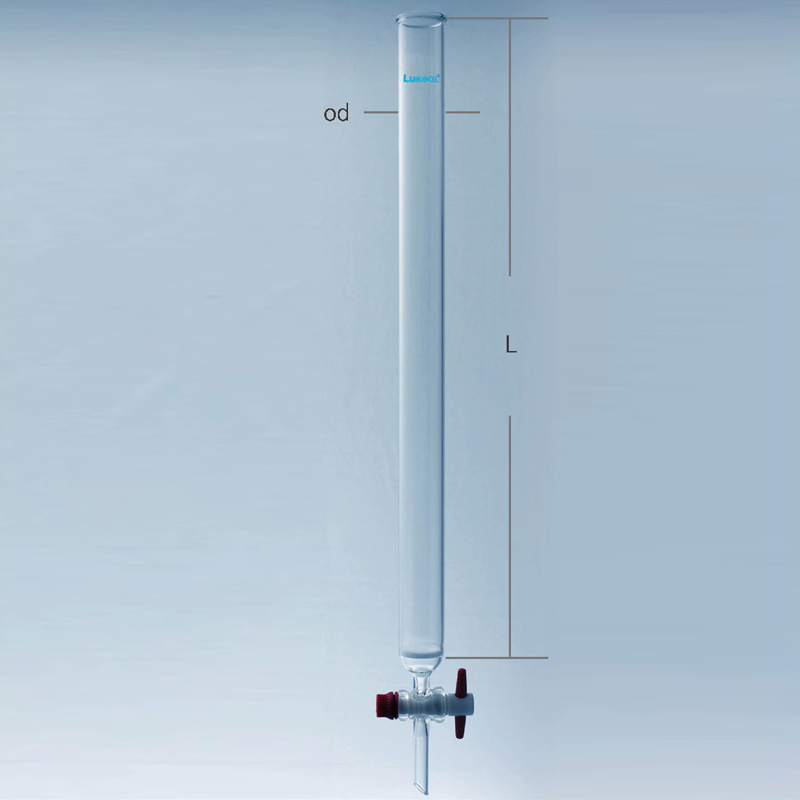

Column, 기본형
Cat. No	Model	Bore	용량	컬럼 O.D.	Length
C08-10-144	5435601	2.5 mm	7 ml	Φ10 mm	200 mm
C08-10-150	5435602		10 ml		250 mm
C08-10-156	5435603		12 ml		300 mm
C08-10-162	5435604		23 ml	Φ15 mm	250 mm
C08-10-168	5435605		28 ml		300 mm
C08-10-174	5435606		38 ml		400 mm
C08-10-180	5435607		44 ml	Φ19 mm	250 mm
C08-10-186	5435608		52 ml		300 mm
C08-10-192	5435609		70 ml		400 mm
C08-10-198	5435610		85 ml	Φ25 mm	250 mm
C08-10-204	5435611		100 ml		300 mm
C08-10-210	5435612		135 ml		400 mm
C08-10-216	5435613		170 ml		500 mm
C08-10-222	5435614		270 ml	Φ38 mm	300 mm
C08-10-228	5435615		360 ml		400 mm
C08-10-234	5435616		450 ml		500 mm
C08-10-240	5435617	4.0 mm	650 ml	Φ50 mm	400 mm
C08-10-246	5435618		830 ml		500 mm
C08-10-252	5435619		990 ml		600 mm
C08-10-258	5435620	6.0 mm	1130 ml	Φ65 mm	400 mm
C08-10-264	5435621		1690 ml	Φ65 mm	600 mm
C08-10-270	5435622		1530 ml	Φ75 mm	400 mm
C08-10-276	5435623		2300 ml	Φ75 mm	600 mm

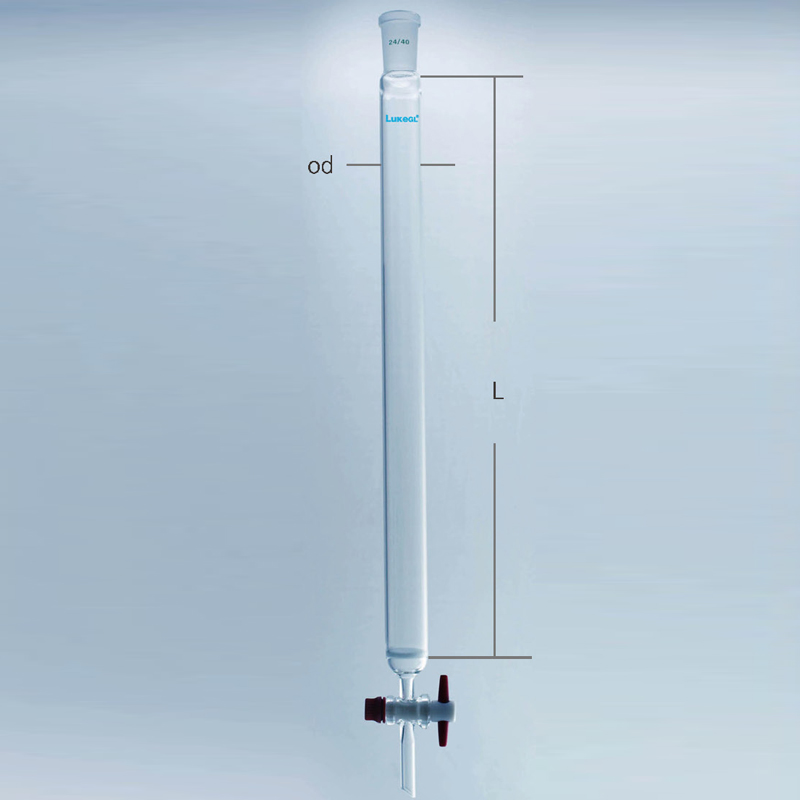

Column with Joint, 죠인트 부착형 (Joint Size 24/40)
Cat. No	Model	Bore	용량	컬럼 O.D.	Length
C08-10-420	5435801	2.5 mm	7 ml	Φ10 mm	200 mm
C08-10-426	5435802		10 ml		250 mm
C08-10-432	5435803		12 ml		300 mm
C08-10-438	5435804		23 ml	Φ15 mm	250 mm
C08-10-444	5435805		28 ml		300 mm
C08-10-450	5435806		38 ml		400 mm
C08-10-456	5435807		44 ml	Φ19 mm	250 mm
C08-10-462	5435808		52 ml		300 mm
C08-10-468	5435809		70 ml		400 mm
C08-10-474	5435810		85 ml	Φ25 mm	250 mm
C08-10-480	5435811		100 ml		300 mm
C08-10-486	5435812		135 ml		400 mm
C08-10-492	5435813		170 ml		500 mm
C08-10-498	5435814		270 ml	Φ38 mm	300 mm
C08-10-504	5435815		360 ml		400 mm
C08-10-510	5435816		450 ml		500 mm
C08-10-516	5435817	4.0 mm	650 ml	Φ50 mm	400 mm
C08-10-522	5435818		830 ml		500 mm
C08-10-528	5435819		990 ml		600 mm
C08-10-534	5435820	6.0 mm	1130 ml	Φ65 mm	400 mm
C08-10-540	5435821		1690 ml	Φ65 mm	600 mm
C08-10-546	5435822		1530 ml	Φ75 mm	400 mm
C08-10-552	5435823		2300 ml	Φ75 mm	600 mm
