TLC Plate / TLC 플레이트

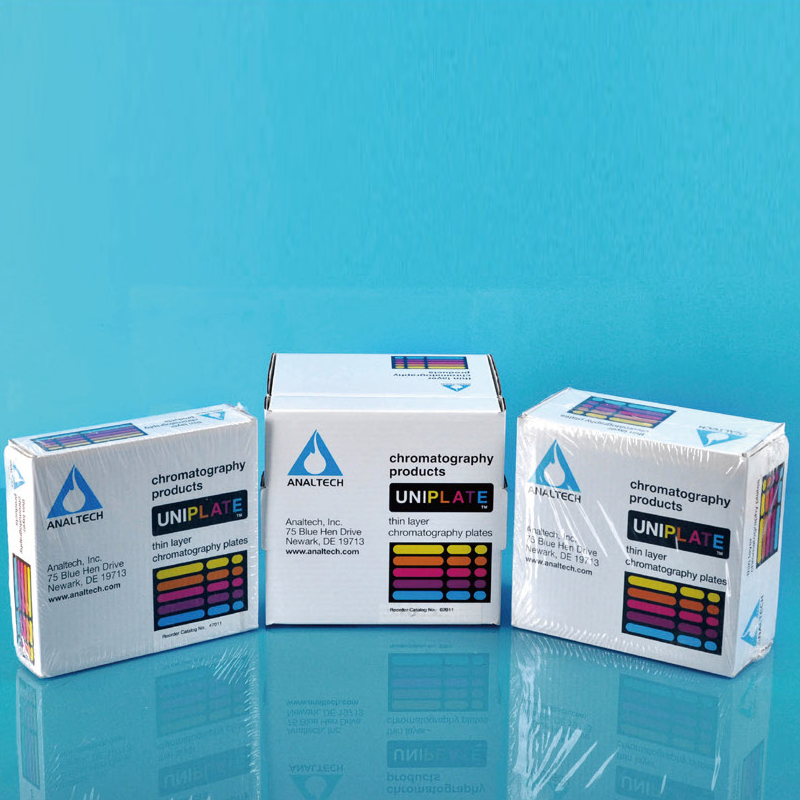

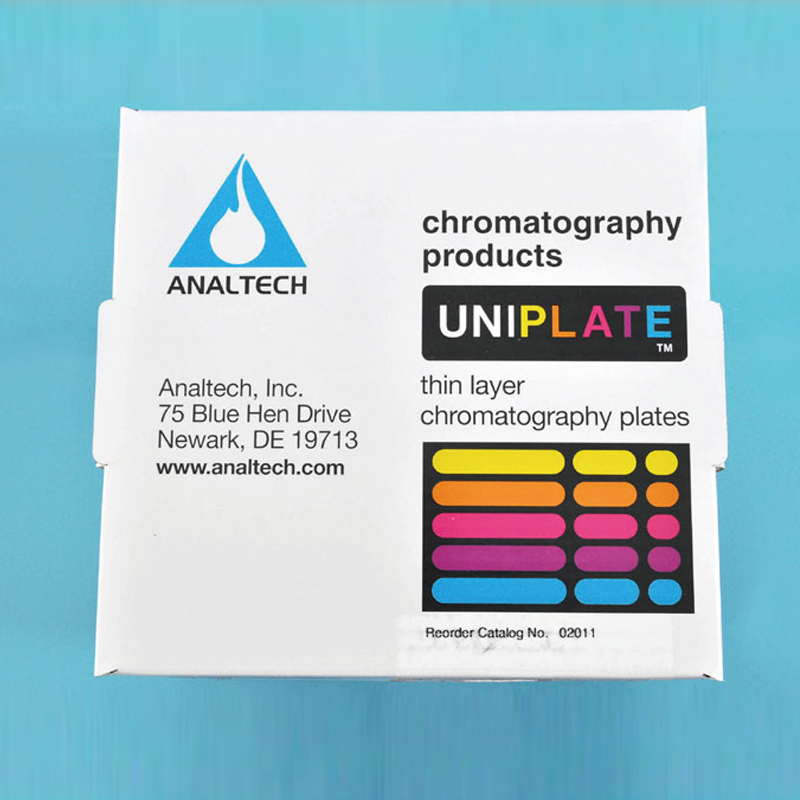

■ UNIPLATE® TLC Plate
① Silicagel G : No Organic Substance
- Water를 20% 이상 포함한 Solution과의 사용은 불가함
- Compatible with Sulfuric Acid Charring Visualization
② Silicagel GF : “G” + Fluorescent Indicator : 250 nm (UV Short Wave)
■ Plate Size : w200×d200 mm
■ Analtech / UNIPLATE®

(0개)

Glass Plate, UNIPLATE®
Cat. No	Model	Baking	형광처리
C08-148-110	01011	Silicagel G	No
C08-148-113	02011	Silicagel GF	Yes

● 250 um Thickness, 10 um Particle, 60Å pore

Glass Plate, Preparative, UNIPLATE®
Cat. No	Model	Baking	두께	형광처리
C08-148-003	01012	Silicagel G	500um	No
C08-148-006	02012	Silicagel GF	500um	Yes
C08-148-009	01013	Silicagel G	1000um	No
C08-148-012	02013	Silicagel GF	1000um	Yes
C08-148-015	01014	Silicagel G	1500um	No
C08-148-018	02014	Silicagel GF	1500um	Yes
C08-148-021	01015	Silicagel G	2000um	No
C08-148-024	02015	Silicagel GF	2000um	Yes

● Large Quantify Material의 Separation용

Aluminum Plate, UNIPLATE®
Cat. No	Model	Baking	형광처리
C08-148-506	156017	Silicagel G	No
C08-148-509	157017	Silicagel GF	Yes

● 200 um Thickness

Polyester Plate, UNIPLATE®
Cat. No	Model	Baking	형광처리
C08-148-706	158017	Silicagel G	No
C08-148-709	159017	Silicagel GF	Yes

● 200 um Thickness
