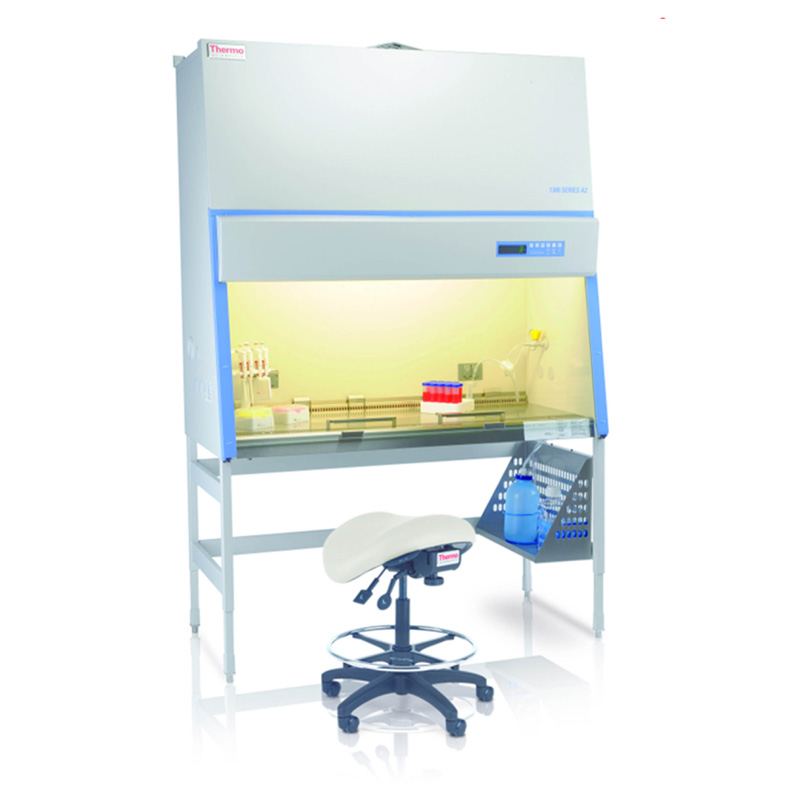

 Biological Safety Cabinet / 생물 안전 작업대, Class Ⅱ Type A2 |
|
| Optional Accessory |
|
|
 |
|
|
|
|
● Work Application Using
- Particulate contamination and hazard including biological agents (viruses and bacteria) at Biosafety Levels 1, 2, 3, or BSL4 suit laboratories
● 구성 : Stainless Steel interior cabinet walls, manual adjustable height stand, factory installed UV light and one set of armrest
● Single Piece Stainless Steel Work Tray : 세척이 용이함
● Sloped Front (10˚), Reduced Noise Level

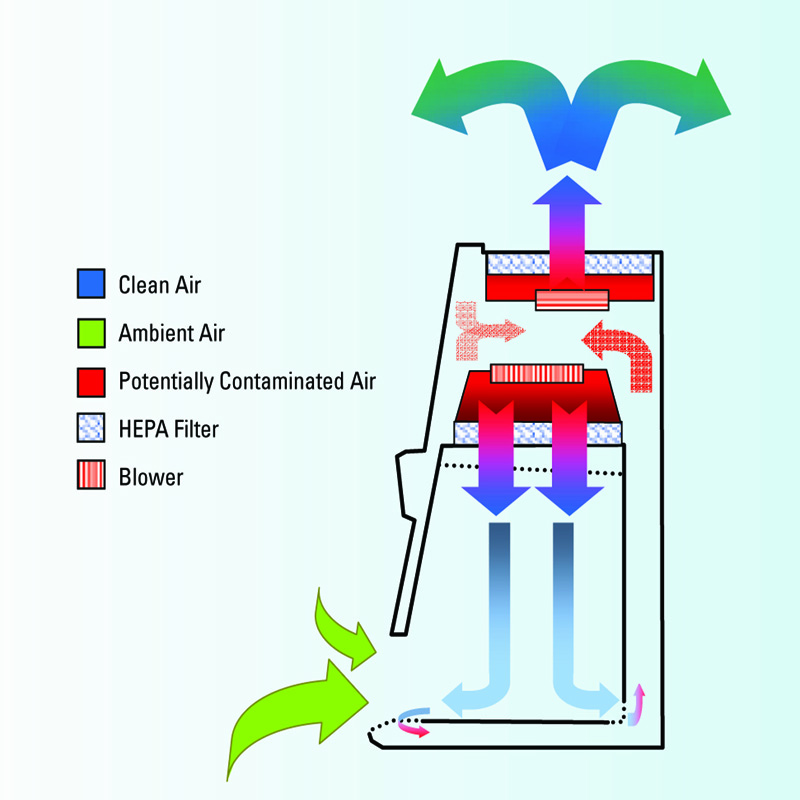

● Inflow (유입량) 및 Downflow (하강 기류)의 최적화 된 Balance Control를 위한 독립된 각각의 D/C모터 (Inflow Blower, Downflow Blower) 및 센서 장착
● 독립된 2개의 DC Motor가 Inflow와 Downflow를 각각 담당하여 Airflow의 효율이 좋고 필터의 수명을 획기적으로 향상시키고 (필터 교체 주기 : 5년) 획기적으로 소음을 줄임
● Ventillation System (Exhaust Volume): 582 m3/h
● Inflow 및 Downflow에 부착 된 각각 Sensor는 자동으로 Airflow를 Control함 타사방식인 Damper에 의한 수동 Airflow조절이 필요 없음
● Inflow(Exhaust Motor) Sensor는 HEPA Filter의 수명을 자동으로 감지, Filter 용량에 맞게 배기량으로 자동 보정함
● Digital Airflow Verification (DAVe) : 최적화 된 Balance Control를 위한 사용자 경고 System
- HEPA Filter의 효율저하 및 기기 오작동으로 인한 성능저하시 자동 경고 메세지 기능
- 독립된 Pressure Sensor는 Exhaust (Inflow)와 Downflow간의 압력변화를 자동으로 감지
- Exhaust (Inflow) 또는 Downflow의 설정값 변화시 자동 알림기능
상세 규격 표
| Cat. No |
Model |
Wide |
내부재질 |
| C10-55-100 |
TS1376 |
4 ft (1200 mm) |
Stainless
Steel |
| C10-55-150 |
TS1383 |
5 ft (1500 mm) |
| C10-55-200 |
TS1378 |
6 ft (1800 mm) |
Optional Accessory
| Cat. No |
Model |
Description |
| C10-55-911 |
1911308 |
Combustible Glas Valve (LPG) |
| C10-55-914 |
1911309 |
Non-combustible Gas Valve |
| C10-55-917 |
1911310 |
Vacuum Valve |
| C10-55-920 |
1911311 |
Water Valve |
| C10-55-923 |
1911316 |
Thimble Duct for 4 ft Cabinet |
| C10-55-930 |
1911317 |
Thimble Duct for 6 ft Cabinet |
-
● Thimble Duct
- Allows the biological safety cabinet to be connected to an external exhaust
for the removal of volatile toxic chemicals or radionuclides used in the cabinet
- The thimble duct exhaust connection is the method recommeded by
NSF/ANSI 49 for externally exhausting the class Ⅱ, Type A2 biological
safety cabinet
상세 규격 표
| Cat. No. |
C10-55-100 |
C10-55-150 |
C10-55-200 |
| Model |
TS1376 |
TS1383 |
TS1378 |
| Size |
Internal |
w1200×d630×h780 mm |
w1500×d630×h780 mm |
w1800×d630×h780 mm |
| External |
w1300×d800×h1568 mm |
w1600×d800×h1568 mm |
w1900×d800×h1568 mm |
| Maximum Load |
50 kg (Work Tray) |
| Exhaust/Inflow Air Vol. |
585 ㎥/h |
732 ㎥/h |
878 ㎥/h |
| Heat Emission |
200 W |
310 W |
400 W |
| Filter |
H14 HEPA EN 1822 99.995% at the most penetrating particle size (mini-pleated) |
| Certification |
NSF/ANSI 49, UL |
| Sound |
63 dB |
65 dB |
| Light Power |
> 120 fc |
| Electric Power |
230V, 50/60 Hz, 200W, 1.2A |
230V, 50/60 Hz, 310W, 1.5A |
230V, 50/60 Hz, 400W, 1.9A |
| Protection |
T15 Amp fuse or Class B 15 circuit breaker is required. The local electrical regulations |
| Access Ports (Φ24 mm) |
6 (3 on each side) |
| Valve |
Up to 6ea (Installed through side wall access ports) |
| Receptacles (Rear Wall) |
Sigle, Right Side |
Two Singe, Left & Right Side |
| Warranty |
3 Years |
|
|
|
|
