Graham Condenser / 나사관 냉각기, LukeGL®

● Borosilicate Glass 3.3
● Joint Size는 요청에 의해 변경 가능함
● LukeGL®

(0개)

상세 규격 표
Cat. No	Model	Length	Socket / Cone NS	Water Connection

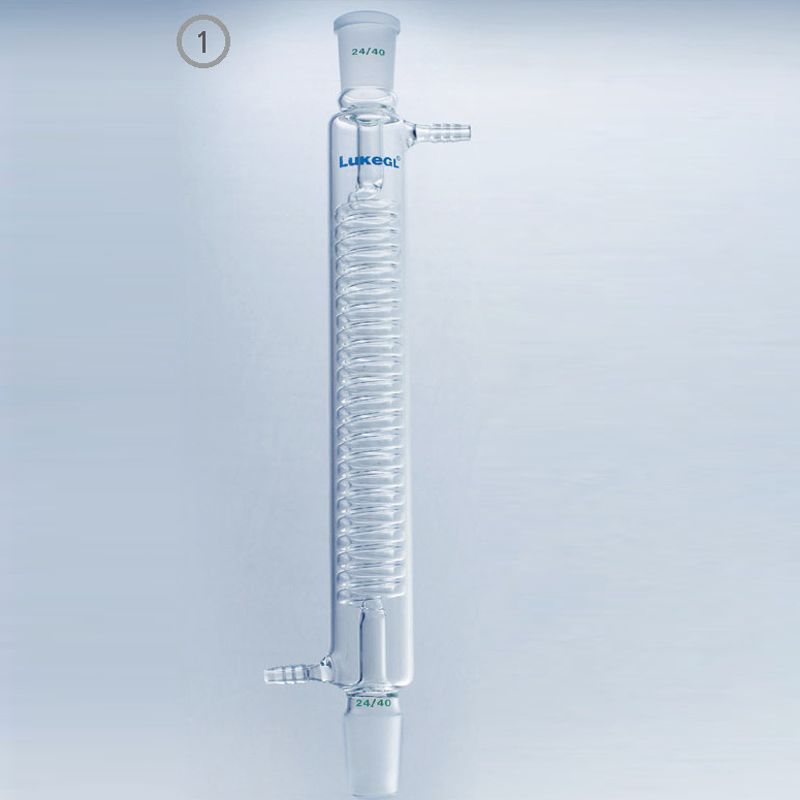

C18-10-006	5240201	150 mm	14/23	Nozzle ①
C18-10-008	5240229	200 mm	14/23
C18-10-012	5240202	150 mm	24/40
C18-10-018	5240203	200 mm
C18-10-022	5240231	250 mm
C18-10-024	5240204	300 mm
C18-10-030	5240205	400 mm
C18-10-036	5240206	500 mm

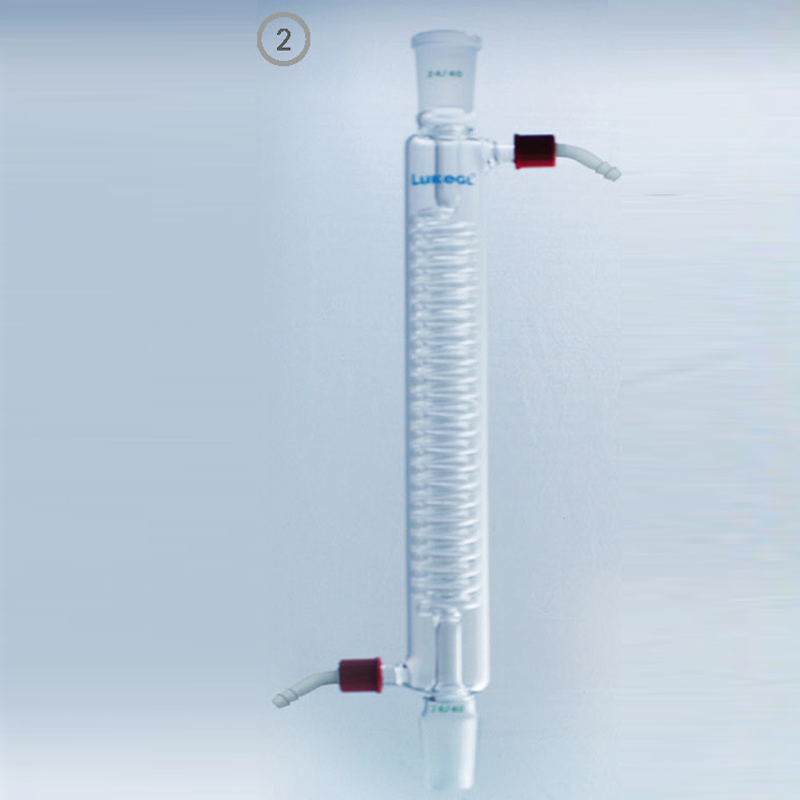

C18-10-048	5240211	150 mm	14/23	GL14 with PP Connectors ②
C18-10-054	5240212	150 mm	24/40
C18-10-060	5240213	200 mm
C18-10-062	5340241	250 mm
C18-10-066	5240214	300 mm
C18-10-072	5240215	400 mm
C18-10-078	5240216	500 mm
