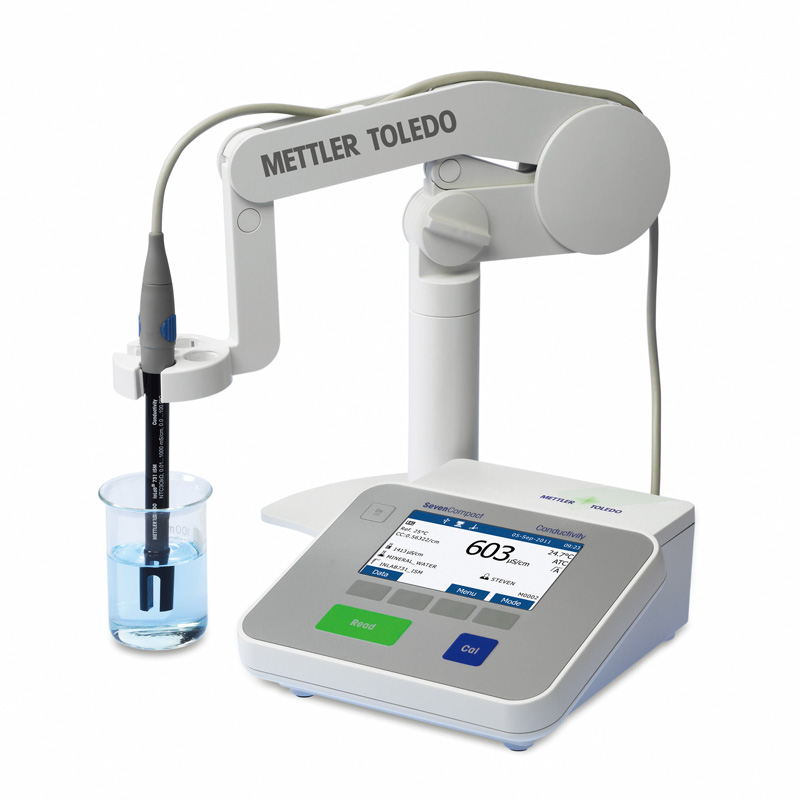

 Precise Benchtop Conductivity Meter / 정밀형 전도도 미터 |
|
| Conductivity Cell |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
C19-162-522 |
30014092 |
Conductivity Cell InLab731-ISM |
1/EA |
1,212,000원 |
7 Day |
0 |
|
|
|
C19-162-542 |
30014094 |
Conductivity Cell InLab741-ISM |
1/EA |
1,639,000원 |
7 Day |
0 |
|
|
|
C19-162-555 |
30014097 |
Conductivity Cell Inlab Trace |
1/EA |
2,550,000원 |
7 Day |
0 |
|
|
|
C19-162-558 |
30014099 |
Trace Kit(Sencer & Cell) for Inlab Trace |
1/EA |
4,390,000원 |
7 Day |
0 |
|
|
|
C19-162-560 |
30014098 |
Flow-Cell for Inlab Trace |
1/EA |
2,201,000원 |
7 Day |
0 |
|
|
|
| Optional Accessory |
|
|
 |
|
|
|
|
● 구성
1) S230-Basic : Meter, Electrode Stand, Protect Cover, Manual, Quick Guide Power Supply, Declaration of Conformity and Test Certificate
2) S230-Kit : “S230-Basic” 기본구성품, InLab731-ISM 전극, Guide to Conductivity & DO, 1회용 buffer 2개 (1413 uS/cm, 12.88 mS/cm)
3) S230-USP/EP : “S230-Kit” 기본구성품과 같으나 전극은 Inlab741-ISM, 1회용 Buffer는 1413 uS/cm 한종류 들어 있음
● 5개의 측정 모드 : Conductivity, TDS, Resistivity, Salinity, Temperature
● 수정 가능한 Cell Constant 및 자동, 수동 온도 보상 가능
● PC나 Printer 연결을 위한 RS232 인터 페이스 기본 내장
● Conductivity Cell 등 악세사리에 대한 자세한 내용은 Accessory란 참조
상세 규격 표
| Cat. No. |
Model |
구분 |
전극 |
| C19-162-009 |
S230-Basic |
Instrument |
X (포함 안됨) |
| C19-162-016 |
S230-Kit |
4 Pole Cell, InLab731-ISM |
| C19-162-019 |
S230-USP/EP |
2 Pole Cell, InLab741-ISM |
상세 규격 표
| S230 |
Range |
Resolution |
Accuracy |
| Conductivity
| 0.001 uS/cm ~ 1000 mS/cm |
0.001 ~1 |
±0.5% |
| TDS
| 0.00 mg/L ~ 1000 g/L |
0.01 ~ 1 |
±0.5% |
| Salinity
| 0.00 ~ 80.00 psu |
0.00 ~ 1.0 |
±0.5% |
| Resistivity
| 0.00 ~ 100.00 ㏁ ·㎝ |
0.00 ~ 1.0 |
±0.5% |
| Conductivity
ash
| 0.000 ~ 2022% |
0.001 ~ 1 |
±0.5% |
| Temp. MTC
| -30℃ ~ 130℃ |
0.1℃ |
±0.1℃ |
| Temp. ATC
| -5℃ ~ 130℃ |
0.1℃ |
±0.1℃ |
| Calibration
| Points : 1
Temperature Capture : Automatic and Manual
Manual Input of Cell Constant : Yes |
| Regulation
| Pure & Ultra-pure Water : USP/EP Compliant |
| System and
GLP
| Time and Date : 2 Time Formats, 4 Date Formats
PIN Protection : Login, Deletion of Data, System Settings
Instrument Modes : Routine Mode / Expert Mode
ID Input : User ID, Sample ID, Sensor ID, Sensor SN |
| Data
Processing
| Data Storage : 1000 Measurements
Print Formats : Short, Normal, GLP |
| Connector
| Mini-DIN |
Conductivity Cell
| Cat. No. |
Model |
Description |
| C19-162-522 |
30014092 |
“Inlab731-ISM” Epoxy, 4 Graphite Pole |
| C19-162-542 |
30014094 |
“Inlab741-ISM” Steel, 2 Steel Pole |
| C19-162-555 |
30014097 |
“Inlab Trace” Titanium, 2 Titanium Pole |
| C19-162-560 |
30014098 |
Flow-Cell for Inlab Trace |
| C19-162-558 |
30014099 |
Trace Kit (Sensor & Cell) for Inlab Trace |
-
● InLab731-ISM : 4 Graphite Poles, Epoxy Body, Cell constant 0.57, Mini-DIN,
0.01 mS/cm ~ 1000 mS/cm
● InLab741-ISM : 2 Steel Poles, Stainless Steel Body, Cell constant 0.105,
Mini-DIN, 0.001 us/cm ~ 500 us/cm
● InLab Trace : High-accuracy Sensor for Low Conductivities, ATC
Optional Accessory
| Cat. No. |
Model |
Description |
| B02-162-712 |
RS-P25/02 |
Printer with RS232 Cable |
| C19-162-801 |
51191926 |
USB A-B Cable 1.8 M |
| C19-162-810 |
51302876 |
“LabX direct” PC Software |
|
|
|
|
