General instrument > 제품별 분류 > Reactor > 제품상세정보

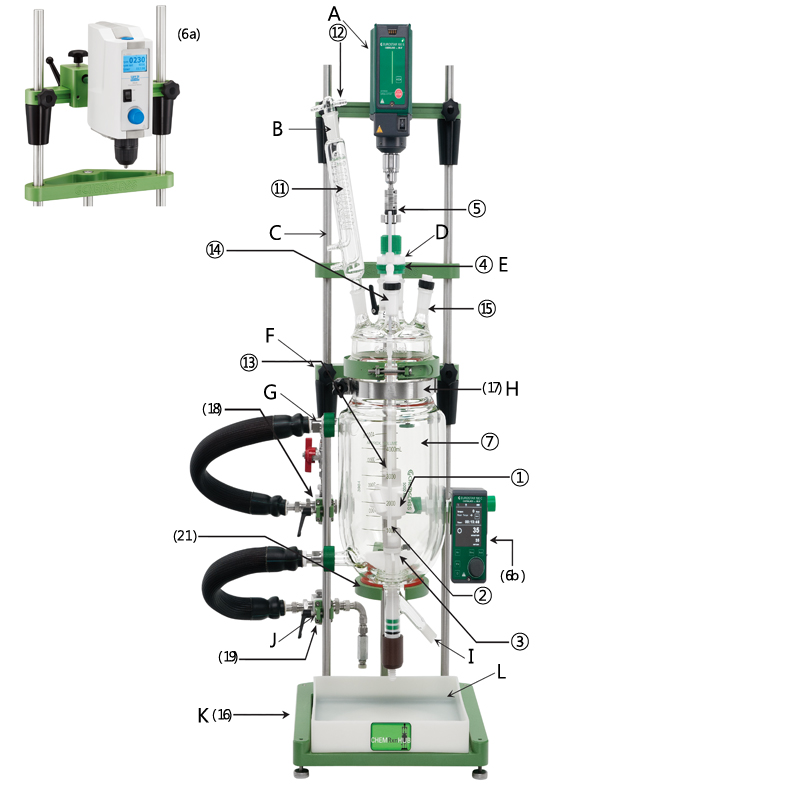

Small Scale Process Jacketed Reactor, Bench-Top / 자켓식 소형 반응 시스템, 2 L & 5 L
● ChemRxnHub Process System
● 기본구성 : Bench top Reactor kit, Complete with Glassware and Stand
● Manifold 및 모터의 종류에 따라 구분 되어짐
● Remote Control이 안되는 제품은 Digital Overhead Stirrer (6a)제품으로 구성됨
● Benchtop Hood 안에 설치 가능
● Stand Size : w390×d440×h1020 mm
● Chemglass

(0개)
Small Scale Process Jacketed Reactor, Bench-Top / 자켓식 소형 반응 시스템, 2 L & 5 L
Cat. No Model Description Unit Price
(VAT별도)		 납기 재고 주문/견적
R08-132-101 1949-X -2D  Jacketed Reactor System 2L 1/EA 22,252,000원 30 Day 0
R08-132-105 1949-X -2L  Jacketed Reactor System, Remote 2L 1/EA 25,344,100원 30 Day 0
R08-132-109 1949-X -2DM  Jacketed Reactor System, Manifold 2L 1/EA 28,421,800원 30 Day 0
R08-132-113 1949-X -2LM  Jacketed Reactor System, Remote, Manifold 2L 1/EA 31,423,200원 30 Day 0
R08-132-117 1949-X -5D  Jacketed Reactor System 5L 1/EA 23,497,200원 30 Day 0
R08-132-121 1949-X -5L  Jacketed Reactor System, Remote 5L 1/EA 26,589,000원 30 Day 0
R08-132-125 1949-X -5DM  Jacketed Reactor System, Manifold 5L 1/EA 29,315,200원 30 Day 0
R08-132-129 1949-X -5LM  Jacketed Reactor System, Remote, Manifold 5L 1/EA 32,668,200원 30 Day 0
Standard Component, 구성품
Cat. No Model Description Unit Price
(VAT별도)		 납기 재고 주문/견적
R02-132-153 1929-X18  Jacketed Reactor only 2L 1/EA 3,628,700원 30 Day 0
R02-132-173 1929-X28  Jacketed Reactor only 5L 1/EA 5,099,200원 30 Day 0
R02-132-526 1949-X -10  Reactor Support Frame w/ Drip Tray for Small Scale 1/EA 8,283,700원 30 Day 0
R02-132-562 1213-J-01  Condenser Coil, Reflux for Small Scale 1/EA 773,000원 30 Day 0
R02-132-566 2077-G-21  Adapter Inlet, Gas for Small Scale 1/EA 722,200원 30 Day 0
R02-132-571 2044-C-16  Tru-stir Shaft Coupling 19mm for Small Scale 1/EA 556,300원 3 Day 1
R02-132-572 2024-10  Digital Overhead Stirrer for Small Scale 1/EA 3,351,600원 30 Day 0
R02-132-573 1971-M-10  PTFE Jacketed Baffle 410mm S.S, 1 L용 1/EA 586,300원 30 Day 0
  R02-132-574 2035-20  Overhead Stirrer Remote for Small Scale 1/EA 0원 30 Day 0 문의
R02-132-577 1971-M-12  PTFE Jacketed Baffle 515mm S.S 1/EA 608,200원 30 Day 0
R02-132-578 1971-M-20  Micro Baffle Adapter PTFE for Small Scale 1/EA 249,200원 30 Day 0
R02-132-584 3002-L-45  Safe-Lab Stopper PTFE 45/50 1/EA 307,100원 0 Day 0
R02-132-587 1947-B150  SS Reactor Clamp 150mm for Small Scale 1/EA 740,000원 30 Day 0
  R02-132-590 1969-X -12  Outlet Manifold Assembly for Small Scale 1/EA 0원 30 Day 0 문의
  R02-132-594 1969-X -14  Inlet Manifold Assembly for Small Scale 1/EA 0원 30 Day 0 문의
R02-132-598 1969-V-10  Flat Flange 30mm for Small Scale 1/EA 618,900원 3 Day 2
R02-132-602 1949-X -13  Reactor Low Support for 2L & 5L 1/EA 554,000원 30 Day 0
R02-132-616 2077-G-24  PTFE Stirrer Bearing 19mm Flake- Free 45/50 1/EA 1,394,600원 0 Day 0
R02-132-624 141-T-14  Release Clamp PTFE Coated 150mm 1/EA 537,700원 0 Day 0
R02-132-628 147-77  Encapsulated O-ring FEP 150mm 1/EA 338,600원 0 Day 0
R02-132-632 2095-04  Impeller Angle PTFE, 60˚ 4inch OD 1/EA 1,225,100원 0 Day 0
R02-132-636 2097-08  Stirring Shaft, Polished 19mm 21-1/2 OAL 1/EA 752,700원 0 Day 0
R02-132-640 2096-07  PTFE Agitator High Viscosity 5inch OD 1/EA 966,500원 0 Day 0
R02-132-C31 1946-D-11  Lid for Reactor 150mm 1/EA 1,181,900원 30 Day 0
