Large Scale Unjacketed Reactor System / 대용량 반응 시스템, 30 & 50 L
Cat. No
Model
Description
Unit
Price
납기
재고
주문/견적
R02-132-108
1972-630
Reactor System Unjacketed, 30Lit. 2150mm
1/EA
64,413,500원
30 Day
0
R02-132-112
1974-630
Reactor System Unjacketed, 30Lit. 2060mm
1/EA
58,880,600원
30 Day
0
R02-132-116
1972-650
Reactor System Unjacketed, 50Lit. 2360mm
1/EA
68,424,900원
30 Day
0
R02-132-120
1974-650
Reactor System Unjacketed, 50Lit. 2270mm
1/EA
62,418,100원
30 Day
0
Scale Standard Component
Cat. No
Model
Description
Unit
Price
납기
재고
주문/견적
R02-132-836
2033-11
Electric Stir Motor 1/4Hp, 500RPM
1/EA
0원
30 Day
0
문의
R02-132-708
2025-20
Air Motor 3/8Hp
1/EA
2,421,300원
30 Day
0
R02-132-712
2025-10
Regulato Air Motor Only
1/EA
739,300원
30 Day
0
R02-132-796
2097-31
Stirrer Shaft 25.4mm h1080mm
1/EA
1,395,400원
30 Day
0
R02-132-800
2097-53
Stirrer Shaft 25.4mm h1330mm
1/EA
1,511,800원
30 Day
0
R02-132-804
2077-H-06
PTFE Stir Bearing 25.4mm
1/EA
1,177,300원
30 Day
0
R02-132-848
2033-31
Stir Motor Controller (Electric Only)
1/EA
0원
30 Day
0
문의
R02-132-744
1042-E-10
Thermocouple Adapter 45/50
1/EA
174,600원
30 Day
0
R02-132-860
2093-21
Catching Cup PTFE, 25.4mm
1/EA
641,800원
30 Day
0
R02-132-820
1968-G-01
Envelope Gasket 300mm
1/EA
641,800원
30 Day
0
R02-132-880
1968-X-12
Support Frame 1910mm 30L용
1/EA
16,530,100원
30 Day
0
R02-132-884
1968-X-14
Support Frame 2120mm 50L용
1/EA
16,843,100원
30 Day
0
R02-132-960
10013-30
Heating Mantle 30L Fabric 115V
1/EA
4,259,000원
30 Day
0
R02-132-964
10013-50
Heating Mantle 50L Favric 115V
1/EA
5,794,300원
30 Day
0
R02-132-968
1972-67
Long Dual Thermocouple, inchTinch 1/4inch Diameter x 915mm 30L용
1/EA
528,400원
30 Day
0
R02-132-972
1972-68
Long Dual Thermocouple, inchTinch 1/4inch Diameter x 1140mm 50L용
1/EA
593,600원
30 Day
0
R02-132-976
2095-17
PTFE Agitator 60˚ 152mm OD
1/EA
1,288,000원
30 Day
0
R02-132-410
1968-67
2inch Beaded Pipe Coupling
1/EA
418,200원
30 Day
0
R02-132-792
1215-C-10
Condenser 45/50
1/EA
2,535,900원
30 Day
0
R02-132-840
2046-90
Shaft Coupling, (Electric) 25.4mm
1/EA
865,300원
30 Day
0
R02-132-844
2046-91
Shaft Coupling, (Air) 25.4mm
1/EA
865,300원
30 Day
0
R02-132-984
CG-1042-46
Adapter Thermometer Inlet 45/50 Thread #15, h95mm
1/EA
129,500원
30 Day
0
R02-132-988
1972-66
Dual Element Extension Cord, inchTinch
1/EA
251,200원
30 Day
0
R02-132-808
149-06
Glass Cap 80mm
1/EA
346,500원
30 Day
0
R02-132-812
141-T-10
Quick Release Clamp PTFE Coated 80mm
1/EA
413,400원
30 Day
0
R02-132-816
147-79
S.S. Spring O-ring FEP Coated 80mm
1/EA
274,600원
30 Day
0
R02-132-C72
1968-A-01
Vessel Cover, 7-Neck Flange 300mm 45/50
1/EA
8,207,700원
30 Day
0
R02-132-350
1972-07
Cooling Coil PTFE Coated 30L S.S.
1/EA
3,561,900원
30 Day
0
R02-132-354
1972-17
Cooling Coil PTFE Coated 50L S.S.
1/EA
4,163,700원
30 Day
0
R02-132-358
1972-61
Reaction Vessel 30L Unjacketed
1/EA
7,202,000원
30 Day
0
R02-132-362
1972-81
Reaction Vessel 50L Unjacketed
1/EA
9,091,700원
30 Day
0
R02-132-736
1972-65
Temperature Controller Digital, inchTinch
1/EA
5,356,700원
30 Day
0
R02-132-740
1968-X-50
Side Shelf For 1972-65 Controller
1/EA
2,405,800원
30 Day
0
R02-132-366
12012-30
Heating Mantle Aluminum 115V
1/EA
3,669,200원
30 Day
0
R02-132-370
1968-X-56
Lower Mantle Base
1/EA
0원
30 Day
0
문의
R02-132-780
1968-Q-01
Drain Valve Zero Dead Space 2inch BP
1/EA
0원
30 Day
0
문의
R02-132-584
3002-L-45
Safe-Lab Stopper PTFE 45/50
1/EA
307,100원
0 Day
0
R02-132-606
145-09
Clamp, Keck, Brown, Standard Taper, Fits Joint Size 45/50 10/pk
1/EA
162,000원
30 Day
0
R02-132-504
3498-03
1/2inch OD S.S Rod Bent 90˚
1/EA
202,800원
3 Day
1
R02-132-852
9253-20
Universal Kwik Mount klamp (2ea)
1/EA
276,100원
3 Day
1
R02-132-888
2048-03
Teflon Gasket Safety Collar 25.4mm
1/EA
185,400원
3 Day
2
R02-132-784
1963-B-10
Beam Torque Wrench
1/EA
236,000원
3 Day
1
R02-132-788
1963-B-14
7/16inch Deep Socket 6 Point, 1/4inch Drive
1/EA
16,900원
30 Day
0
상세 규격 표
Cat. No.
Model
용량
Motor
전체높이
R02-132-108
1972-630
30 L
Electric
2150 mm
R02-132-112
1974-630
Air
2060 mm
R02-132-116
1972-650
50 L
Electric
2360 mm
R02-132-120
1974-650
Air
2270 mm

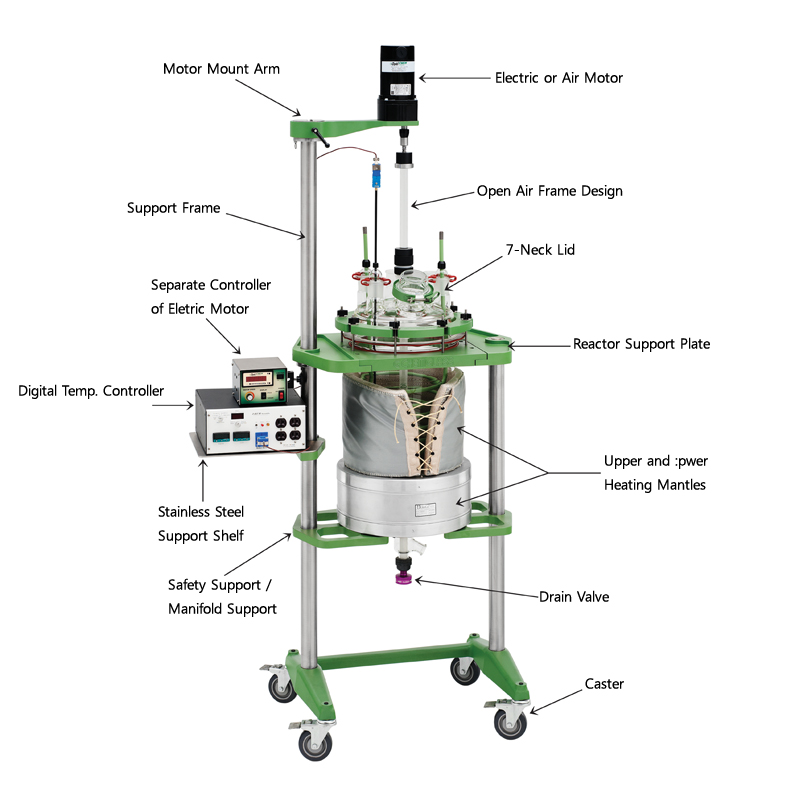

Standard Component, 구성품
Cat. No.
Model
Description
R02-132-836
2033-11
Electric Stir Motor, 1/ 4Hp, 500 RPM, ①
R02-132-708
2025-20
Air Motor, 3/8 Hp
R02-132-712
2025-10
Filter-Regulator-Lubricator (Air Motor Only)
R02-132-796
2097-31
30L용 25.4mm Stirrer Shaft, L1080mm
R02-132-800
2097-53
50L용 25.4mm Stirrer Shaft, L1330mm, ②
R02-132-804
2077-H-06
25.4 mm Teflon Stir Bearing, ③
R02-132-848
2033-31
Stir Motor Controller (Electric Motor만), ④
R02-132-744
1042-E-10
Thermocouple Adapter, 45/50, ⑤
R02-132-860
2093-21
Teflon Flake Catching Cup, 25.4mm, ⑥
R02-132-820
1968-G-01
300 mm Envelope Gasket, ⑦
R02-132-880
1968-X-12
Support Frame, 1910 mm OAH
R02-132-884
1968-X-14
Support Frame, 2120 mm OAH, ⑧
R02-132-960
10013-30
30L Fabric Heating Mantle, 115V
R02-132-964
10013-50
50L Fabric Heating Mantle, 115V, ⑨
R02-132-968
1972-67
1/4” Diameter×915 mm Long Dual Thermocouple, “T”
R02-132-972
1972-68
1/4” Diameter×1140 mm Long Dual Thermocouple, “T”, ⑩
R02-132-976
2095-17
152mm OD Teflon Agitator, 60°(2ea), ⑪
R02-132-410
1968-67
2” Beaded Pipe Coupling, ⑫
R02-132-792
1215-C-10
High Efficiency Condenser, 45/50, ⑬
R02-132-840
2046-90
25.4 mm Shaft Coupling, (Electric), ⑭
R02-132-844
2046-91
25.4 mm Shaft Coupling, (Air)
R02-132-984
1042-46
Adapter, 45/50 to #15 Thread (2ea), ⑮
R02-132-988
1972-66
Dual Element Extension Cord, “T”, (16)
R02-132-808
149-06
80mm Glass Cap,(17)
R02-132-812
141-T-10
80 mm S.S. Clamp, Teflon Coated, (18)
R02-132-816
147-79
80 mm FEP Eneased S.S. Spring O-Ring, (19)
R02-132-C72
1968-A-01
7Neck Lid, 300mm, (20)
R02-132-350
1972-07
30L S.S. Teflon Coated Cooling Coil
R02-132-354
1972-17
50L S.S. Teflon Coated Cooling Coil, (21)
R02-132-358
1972-61
30L Unjacketed Reaction Vessel
R02-132-362
1972-81
50L Unjacketed Reaction Vessel, (22)
R02-132-736
1972-65
Digital Temperature Controller, “T”, (23)
R02-132-740
1968-X-50
Side Shelf For 1972-65
Temperature Controller, (24)
R02-132-366
12012-30
Heating Mantle, Aluminum, 115V, (25)
R02-132-370
1968-X-56
Lower Mantle Base, (26)
R02-132-780
1968-Q-01
Zero Dead Space Drain Valve, (27)
R02-132-584
3002-L-45
45/50 PTFE Stopper W/Loosening Ring
R02-132-606
145-09
45/50 Keck Clips (10/PK)
R02-132-504
3498-03
1/2” OD Rod, 90°Bend
R02-132-852
9253-20
Universal Kwik Mount Klamp
R02-132-888
2048-03
25.4mm Safety Collar with Tef. Gasket
R02-132-784
1963-B-10
Beam Torque Wrench
R02-132-788
1963-B-14
7/16” Deep Socket, 6 Point, 1/4” Drive
● 시스템 용량에 따라 Reaction Vessel과 Stirring Shaft가 변경되어짐
