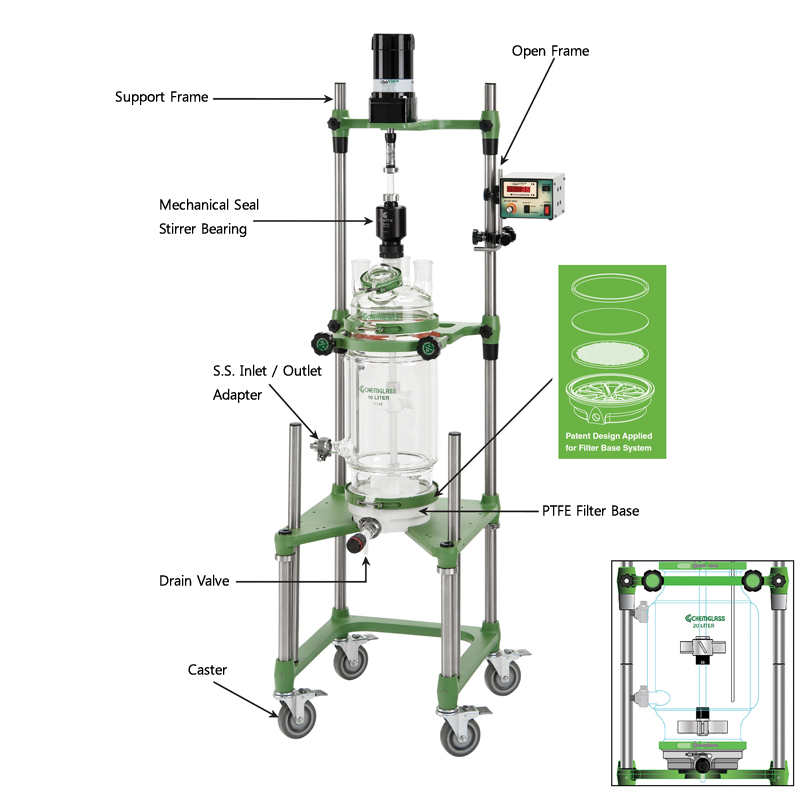

 Large Process Filter Reactor Sytem, Jacketed / 자켓식 대형 반응 시스템, 필터부착형 |
|
| Standard Component, 구성품 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
R02-132-654 |
2097-16 |
Glass Stirrer Shaft 19mm h830mm |
1/EA |
850,000원 |
30 Day |
0 |
|
|
|
R02-132-347 |
2077-M-03 |
Mechanical seal Vacuum & pressure seal Bearing Body, Φ19 mm |
1/EA |
5,614,000원 |
30 Day |
0 |
|
|
|
R02-132-811 |
2077-M-32 |
Mechanical seal Vacuum & pressure seal Lower Joint, Φ10,Φ19,Φ25.4 mm |
1/EA |
1,245,700원 |
30 Day |
0 |
|
|
|
R02-132-664 |
149-01 |
Glass Cap 60mm |
1/EA |
296,100원 |
30 Day |
0 |
|
|
|
R02-132-668 |
141-T-11 |
Release Clamp PTFE Coated 60mm |
1/EA |
339,400원 |
30 Day |
0 |
|
|
|
R02-132-672 |
147-80 |
Perfluoro O-ring 60mm |
1/EA |
698,200원 |
30 Day |
0 |
|
|
|
R02-132-676 |
147-84 |
Perfluoro O-ringe 200mm |
1/EA |
1,584,700원 |
30 Day |
0 |
|
|
|
R02-132-682 |
1959-10 |
Filter Reactor Jacketed 10L |
1/EA |
8,426,500원 |
30 Day |
0 |
|
|
|
R02-132-690 |
1959-20 |
Filter Reactor Jacketed 20L |
1/EA |
10,332,500원 |
30 Day |
0 |
|
|
|
R02-132-692 |
1969-A-05 |
S.S. Adapter 1 M16 x 1 Male |
1/EA |
212,400원 |
30 Day |
0 |
|
|
|
R02-132-692C |
HN10HM16PF |
Hose Nipple 10mm Hose-F/16mmPF 1969-A-05 용 |
1/EA |
48,200원 |
3 Day |
6 |
|
|
|
R02-132-696 |
1968-66 |
1inch Beaded Pipe Coupling |
1/EA |
321,700원 |
30 Day |
0 |
|
|
|
R02-132-836 |
2033-11 |
Electric Stir Motor 1/4Hp, 500RPM |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R02-132-708 |
2025-20 |
Air Motor 3/8Hp |
1/EA |
2,421,300원 |
30 Day |
0 |
|
|
|
R02-132-712 |
2025-10 |
Regulato Air Motor Only |
1/EA |
739,300원 |
30 Day |
0 |
|
|
|
R02-132-518 |
2044-30 |
Shaft Coupling 19mm for Electric |
1/EA |
611,800원 |
3 Day |
1 |
|
|
|
R02-132-720 |
2044-16 |
Shaft Coupling (Air) 19mm |
1/EA |
611,800원 |
30 Day |
0 |
|
|
|
R02-132-508 |
3499-02 |
Extension Cord, Standard Female to Mini Male Plug Type "T" |
1/EA |
106,100원 |
0 Day |
0 |
|
|
|
R02-132-732 |
3498-01 |
Digital Temperature Monitor, Type "T" |
1/EA |
2,175,500원 |
3 Day |
1 |
|
|
|
R02-132-848 |
2033-31 |
Stir Motor Controller (Electric Only) |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R02-132-504 |
3498-03 |
1/2inch OD S.S Rod Bent 90˚ |
1/EA |
202,800원 |
3 Day |
1 |
|
|
|
R02-132-512 |
9253-10 |
Kwik Klamp ∥ 4 |
1/EA |
157,000원 |
3 Day |
2 |
|
|
|
R02-132-744 |
1042-E-10 |
Thermocouple Adapter 45/50 |
1/EA |
174,600원 |
30 Day |
0 |
|
|
|
R02-132-C68 |
1946-50 |
Vessel Cover, 5-Neck Flange 200mm 45/50 |
1/EA |
3,204,100원 |
30 Day |
0 |
|
|
|
R02-132-752 |
141-T-15 |
Release Clamp PTFE Coated 200mm |
1/EA |
609,600원 |
30 Day |
0 |
|
|
|
R02-132-762 |
3498-122 |
Thermocouple 6.4x560mm T |
1/EA |
339,000원 |
30 Day |
0 |
|
|
|
R02-132-760 |
3498-106 |
Long Thermocouple, inchTinch 1/4inch Diameter x 660 mm |
1/EA |
349,500원 |
30 Day |
0 |
|
|
|
R02-132-764 |
2095-05 |
PTFE Agitator 60˚ 127mm OD |
1/EA |
1,262,500원 |
30 Day |
0 |
|
|
|
R02-132-766 |
2096-F-08 |
PTFE Agitator 90도 od127mm |
1/EA |
984,300원 |
30 Day |
0 |
|
|
|
R02-132-754 |
1959-F200 |
Filter Support Assembly 200mm |
1/EA |
8,785,300원 |
30 Day |
0 |
|
|
|
R02-132-994 |
1959-F201 |
Hold Down Ring 200mm |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R02-132-996 |
1959-F203 |
PTFE Filter 30um 200mm |
1/EA |
1,021,800원 |
30 Day |
0 |
|
|
|
R02-132-998 |
1959-F205 |
Filter Base Perforated 200mm |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R02-132-999 |
1959-F209 |
Filter Base Side Outlet 200mm |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R02-132-776 |
1965-X-150 |
Support Frame 1610mm OAH |
1/EA |
10,914,000원 |
30 Day |
0 |
|
|
|
R08-132-836 |
1964-A-10 |
PTFE Drain Adapter Glass Filled for Filter Reactor System |
1/EA |
218,900원 |
30 Day |
0 |
|
|
|
R02-132-782 |
1959-A-01 |
Drain Valve 0-14mm 1/2inch Side Arm |
1/EA |
561,800원 |
30 Day |
0 |
|
|
|
R02-132-784 |
1963-B-10 |
Beam Torque Wrench |
1/EA |
236,000원 |
3 Day |
1 |
|
|
|
R02-132-788 |
1963-B-14 |
7/16inch Deep Socket 6 Point, 1/4inch Drive |
1/EA |
16,900원 |
30 Day |
0 |
|
|
|
|
 |
|
|
|
|
상세 규격 표
| Cat. No. |
Model |
용량 |
Motor |
전체높이 |
| R02-132-304 |
1959-F610 |
10 L |
Electric |
1830 mm |
| R02-132-308 |
1958-F611 |
Air |
1750 mm |
| R02-132-312 |
1959-F620 |
20 L |
Electric |
1830 mm |
| R02-132-316 |
1958-F621 |
Air |
1750 mm |
Standard Component, 구성품
| Cat. No. |
Model |
Description |
| R02-132-654 |
2097-16 |
19mm Stirrer Shaft, h830mm ① |
| R02-132-347 |
2077-M-03 |
19 mm Teflon Stir Bearing (2a) |
| R02-132-811 |
2077-M-32 |
45/50 Lower Joint Adapter (2b) |
| R02-132-664 |
149-01 |
60 mm Glass Cap ③ |
| R02-132-668 |
141-T-11 |
60 mm S.S. Clamp, Teflon Coated, ④ |
| R02-132-672 |
147-80 |
60 mm Perfluoro O-Ring, ⑤ |
| R02-132-676 |
147-84 |
200 mm Perfluoro O-Ring (2ea) ⑥ |
| R02-132-682 |
1959-10 |
10L Jacketed Filter Reaction Vessel ⑦ |
| R02-132-690 |
1959-20 |
20L Jacketed Filter Reaction Vessel ⑦ |
| R02-132-692 |
1969-A-05 |
S.S. Adapter, 1” Beaded Pipe to M16×1Male (2ea) ⑧ |
| R02-132-692C |
HN10HM16PF |
1969-A-05 용 Hose Nipple, 10mm Hose-F & 16mmPF |
| R02-132-696 |
1968-66 |
1” Beaded Pipe Coupling (2ea) ⑨ |
| R02-132-836 |
2033-11 |
Electric Stir Motor, 1/4Hp, 500 RPM (10a) |
| R02-132-708 |
2025-20 |
Air Motor, 3/8HP, (10b) |
| R02-132-712 |
2025-10 |
Filter-Regulator-Lubricator
(Air Motor Only) (10c) |
| R02-132-518 |
2044-30 |
19 mm Tru-Stir® Shaft Coupling, (Electric), (11a) |
| R02-132-720 |
2044-16 |
19 mm Tru-Stir® Shaft Coupling, (Air) (11b) |
| R02-132-508 |
3499-02 |
3 m Coiled Extension Cord, “T” ⑫ |
| R02-132-732 |
3498-01 |
Temperature Monitor, “T” ⑬ |
| R02-132-848 |
2033-31 |
Stir Motor Controller (Electric Only) ⑭ |
| R02-132-504 |
3498-03 |
1/2” OD Rod, 90°Bend ⑮ |
| R02-132-512 |
9253-10 |
Universal Kwik Mount Klamp, (16) |
| R02-132-744 |
1042-E-10 |
Thermocouple Adapter, 45/50, (17) |
| R02-132-C68 |
1946-50 |
5-Neck Lid, 200 mm (18) |
| R02-132-752 |
141-T-15 |
200 mm S.S Clamp, Teflon Coated, (19) |
| R02-132-762 |
3498-122 |
1/4” Diameter×560 mm Long Thermocouple, “T” (20) |
| R02-132-760 |
3498-106 |
1/4” Diameter×660 mm Long Thermocouple, “T” (20) |
| R02-132-764 |
2095-05 |
127 mm OD Teflon Agitator, 60° (21a) |
| R02-132-766 |
2096-F-08 |
127 mm OD Teflon Agitator, 90° (21b) |
| R02-132-754 |
1959-F200 |
Filter Support Assembly, 200 mm (22) |
| R02-132-994 |
1959-F201 |
Hold Down Ring, 200 mm |
| R02-132-996 |
1959-F203 |
PTFE Filter 30um, 200 mm |
| R02-132-998 |
1959-F205 |
Filter Base, Perforated, 200 mm |
| R02-132-999 |
1959-F209 |
Filter Base, Side Outlet, 200 mm |
| R02-132-776 |
1965-X-
150 |
Auto-Center Support Frame, 1610 mm OAH (23) |
| R08-132-836 |
1964-A-10 |
1” Beaded Pipe to 1/2” NPT M, Glass Filled PTFE (24) |
| R02-132-782 |
1959-A-01 |
Drain Valve, 0-14, 1/2” Side Arm (25) |
| R02-132-784 |
1963-B-10 |
Beam Torque Wrench |
| R02-132-788 |
1963-B-14 |
7/16” Deep Socket, 6 Point, 1/4” Drive |
- ● 시스템 용량에 따라 Reaction Vessel과 Stirring Shaft가 변경되어짐
|
|
|
|
