 Small Scale Filter Reactor Sytem, Unjacketed / 소형 반응 시스템, 필터부착형 |
|
| Standard Component, 1 L 반응기 구성품 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
R08-132-800 |
2095-X -102 |
PTFE Agitator 50mm for Filter Reactor System |
1/EA |
1,045,100원 |
30 Day |
0 |
|
|
|
R08-132-804 |
2075-U10 |
Stirring Shaft 10mm for Filter Reactor System |
1/EA |
515,600원 |
30 Day |
0 |
|
|
|
R02-132-566 |
2077-G-21 |
Adapter Inlet, Gas for Small Scale |
1/EA |
722,200원 |
30 Day |
0 |
|
|
|
R02-132-570 |
2044-C-14 |
Tru-stir Shaft Coupling for Small Scale |
1/EA |
526,600원 |
30 Day |
0 |
|
|
|
R02-132-574 |
2035-20 |
Overhead Stirrer Remote for Small Scale |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R08-132-808 |
2035-100 |
Wireless Remote Holder for Filter Reactor System |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R08-132-783 |
2040-C-01 |
Clamp Holder Heavy Duty for Distillation Cart System |
1/EA |
95,400원 |
3 Day |
1 |
|
|
|
R08-132-816 |
1959-U02 |
Filtration Vessel unjacketed 1L |
1/EA |
783,100원 |
30 Day |
0 |
|
|
|
R08-132-820 |
1946-B-01 |
5-N Lid 100mm for Filter Reactor System |
1/EA |
834,500원 |
30 Day |
0 |
|
|
|
R02-132-576 |
141-T-12 |
Release Clamp PTFE Coated 100mm |
1/EA |
450,200원 |
3 Day |
2 |
|
|
|
R08-132-824 |
147-82 |
Perfluoro o-ring 100mm for Filter Reactor System |
1/EA |
820,100원 |
30 Day |
0 |
|
|
|
R08-132-828 |
1949-F100 |
Filter Support Assembly 100mm, w/o filter for Filter Reactor System |
1/EA |
3,993,500원 |
30 Day |
0 |
|
|
|
R08-132-832 |
1949-F103 |
PTFE Filter 100mm, 30um for Filter Reactor System |
1/EA |
320,400원 |
30 Day |
0 |
|
|
|
R08-132-836 |
1964-A-10 |
PTFE Drain Adapter Glass Filled for Filter Reactor System |
1/EA |
218,900원 |
30 Day |
0 |
|
|
|
R02-132-782 |
1959-A-01 |
Drain Valve 0-14mm 1/2inch Side Arm |
1/EA |
561,800원 |
30 Day |
0 |
|
|
|
R02-132-696 |
1968-66 |
1inch Beaded Pipe Coupling |
1/EA |
321,700원 |
30 Day |
0 |
|
|
|
R02-132-584 |
3002-L-45 |
Safe-Lab Stopper PTFE 45/50 |
1/EA |
307,100원 |
0 Day |
0 |
|
|
|
R08-132-844 |
3059-F100 |
Filter Support Assembly jack 100mm for Filter Reactor System |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R02-132-526 |
1949-X -10 |
Reactor Support Frame w/ Drip Tray for Small Scale |
1/EA |
8,283,700원 |
30 Day |
0 |
|
|
|
R02-132-586 |
1947-B100 |
SS Reactor Clamp 100mm for Small Scale |
1/EA |
701,200원 |
30 Day |
0 |
|
|
|
| Standard Component, 5 L 반응기 구성품 |
|
|
Cat. No |
Model |
Description |
Unit |
Price
(VAT별도) |
납기 |
재고 |
주문/견적 |
|
|
R02-132-632 |
2095-04 |
Impeller Angle PTFE, 60˚ 4inch OD |
1/EA |
1,225,100원 |
0 Day |
0 |
|
|
|
R08-132-806 |
2097-U50 |
Stirring Shaft 19mm for Filter Reactor System |
1/EA |
982,600원 |
30 Day |
0 |
|
|
|
R02-132-616 |
2077-G-24 |
PTFE Stirrer Bearing 19mm Flake- Free 45/50 |
1/EA |
1,394,600원 |
0 Day |
0 |
|
|
|
R02-132-571 |
2044-C-16 |
Tru-stir Shaft Coupling 19mm for Small Scale |
1/EA |
556,300원 |
3 Day |
1 |
|
|
|
R02-132-574 |
2035-20 |
Overhead Stirrer Remote for Small Scale |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R08-132-808 |
2035-100 |
Wireless Remote Holder for Filter Reactor System |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R08-132-783 |
2040-C-01 |
Clamp Holder Heavy Duty for Distillation Cart System |
1/EA |
95,400원 |
3 Day |
1 |
|
|
|
R08-132-818 |
1959-U05 |
Filtration Vessel unjacketed 5L |
1/EA |
1,279,500원 |
30 Day |
0 |
|
|
|
R08-132-825 |
1946-B-11 |
5-N Lid 150mm for Filter Reactor System |
1/EA |
1,141,100원 |
30 Day |
0 |
|
|
|
R02-132-624 |
141-T-14 |
Release Clamp PTFE Coated 150mm |
1/EA |
537,700원 |
0 Day |
0 |
|
|
|
R08-132-826 |
147-83 |
Perfluoro o-ring 150mm for Filter Reactor System |
1/EA |
1,392,300원 |
30 Day |
0 |
|
|
|
R08-132-830 |
1949-F150 |
Filter Support Assembly 150mm, w/o filter for Filter Reactor System |
1/EA |
5,191,100원 |
30 Day |
0 |
|
|
|
R08-132-834 |
1949-F153 |
PTFE Filter 150mm, 30um for Filter Reactor System |
1/EA |
573,900원 |
30 Day |
0 |
|
|
|
R08-132-836 |
1964-A-10 |
PTFE Drain Adapter Glass Filled for Filter Reactor System |
1/EA |
218,900원 |
30 Day |
0 |
|
|
|
R02-132-782 |
1959-A-01 |
Drain Valve 0-14mm 1/2inch Side Arm |
1/EA |
561,800원 |
30 Day |
0 |
|
|
|
R02-132-696 |
1968-66 |
1inch Beaded Pipe Coupling |
1/EA |
321,700원 |
30 Day |
0 |
|
|
|
R02-132-584 |
3002-L-45 |
Safe-Lab Stopper PTFE 45/50 |
1/EA |
307,100원 |
0 Day |
0 |
|
|
|
R08-132-846 |
3059-F150 |
Filter Support Assembly jack 150mm for Filter Reactor System |
1/EA |
0원 |
30 Day |
0 |
문의 |
|
|
R02-132-526 |
1949-X -10 |
Reactor Support Frame w/ Drip Tray for Small Scale |
1/EA |
8,283,700원 |
30 Day |
0 |
|
|
|
R02-132-587 |
1947-B150 |
SS Reactor Clamp 150mm for Small Scale |
1/EA |
740,000원 |
30 Day |
0 |
|
|
|
|
 |
|
|
|
|
상세 규격 표
| Cat. No. |
Model |
용량 |
Motor |
| R08-132-200 |
1959-U1000 |
1 L |
Electric |
| R08-132-204 |
1959-U5000 |
5 L |

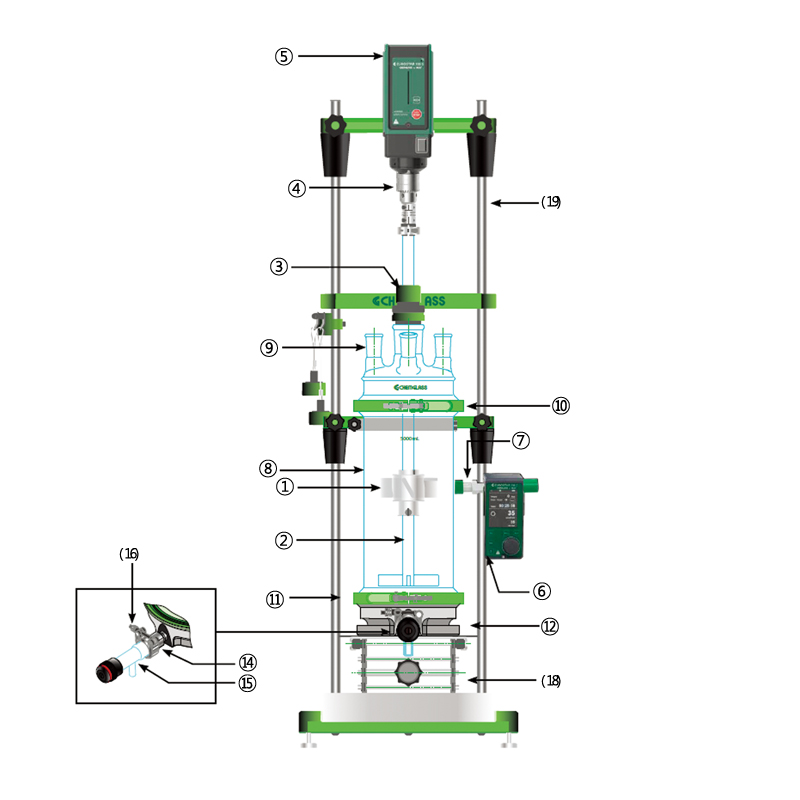

Standard Component, 1 L 반응기 구성품
| Cat. No. |
Model |
Description |
| R08-132-800 |
2095-X-102 |
50 mm PTFE Agitator,
60°Impeller Angle ① |
| R08-132-804 |
2075-U10 |
10 mm Stirring Shaft,
480 mm OAL, 4 Blade ② |
| R02-132-566 |
2077-G-21 |
10 mm PTFE Stirrer Bearing 24/40 ③ |
| R02-132-570 |
2044-C-14 |
Compact Stirrer Shaft Coupling ④ |
| R02-132-574 |
2035-20 |
Digital Overhead Stirrer ⑤ |
| R08-132-808 |
2035-100 |
Wireless Remote Holder ⑥ |
| R08-132-783 |
2040-C-01 |
Heavy Duty Clamp Holder ⑦ |
| R08-132-816 |
1959-U02 |
1 L UnJacketed Filtration Vessel ⑧ |
| R08-132-820 |
1946-B-01 |
Lid, 5-Neck, 100 mm Flange, 24/40 ⑨ |
| R02-132-576 |
141-T-12 |
Quick Release Clamp,
100 mm Flange, PTFE Coated ⑩ |
| R08-132-824 |
147-82 |
100 mm Perfluoro O-ring ⑪ |
| R08-132-828 |
1949-F100 |
100 mm Filter Support Assembly,
w/o Filter ⑫ |
| R08-132-832 |
1949-F103 |
100 mm PTFE Filter, 30 um ⑬ |
| R08-132-836 |
1964-A-10 |
Glass-Filled PTFE Drain Adapter ⑭ |
| R02-132-782 |
1959-A-01 |
Drain Valve ⑮ |
| R02-132-696 |
1968-66 |
1” Beaded Pipe Coupling (16) |
| R02-132-584 |
3002-L-24 |
PTFE Stopper,
24/40 w/Loosening Ring (17) |
| R08-132-844 |
3059-F100 |
100 mm Filter Support Assembly Jack (18) |
| R02-132-526 |
1949-X-10 |
Reactor Support Frame (19) |
| R02-132-586 |
1947-B100 |
100 mm SUS Reactor Clamp (20) |
Standard Component, 5 L 반응기 구성품
| Cat. No. |
Model |
Description |
| R02-132-632 |
2095-04 |
4” PTFE Agitator,
60°Impeller Angle ① |
| R08-132-806 |
2097-U50 |
19 mm Stirrer Shaft, 4 Blade Glass ② |
| R02-132-616 |
2077-G-24 |
19 mm PTFE Stirrer Bearing, 45/50 ③ |
| R02-132-571 |
2044-C-16 |
Compact Stirrer Shaft Coupling ④ |
| R02-132-574 |
2035-20 |
Digital Overhead Stirrer ⑤ |
| R08-132-808 |
2035-100 |
Wireless Remote Holder ⑥ |
| R08-132-783 |
2040-C-01 |
Heavy Duty Clamp Holder ⑦ |
| R08-132-818 |
1959-U05 |
5 L UnJacketed Filtration Vessel ⑧ |
| R08-132-825 |
1946-B-11 |
5-Neck Lid, 150mm Flange, 45/50 ⑨ |
| R02-132-624 |
141-T-14 |
150 mm S.S Clamp, PTFE Coated ⑩ |
| R08-132-826 |
147-83 |
150 mm Perfluoro O-ring ⑪ |
| R08-132-830 |
1949-F150 |
150 mm Filter Support Assembly,
w/o Filter ⑫ |
| R08-132-834 |
1949-F153 |
150 mm PTFE Filter, 30um ⑬ |
| R08-132-836 |
1964-A-10 |
Glass-Filled PTFE Drain Adapter ⑭ |
| R02-132-782 |
1959-A-01 |
Drain Valve ⑮ |
| R02-132-696 |
1968-66 |
1” Beaded Pipe Coupling (16) |
| R02-132-584 |
3002-L-24 |
PTFE Stopper,
24/40 w/Loosening Ring (17) |
| R08-132-846 |
3059-F150 |
150 mm Filter Support Assembly Jack (18) |
| R02-132-526 |
1949-X-10 |
Reactor Support Frame (19) |
| R02-132-587 |
1947-B150 |
150 mm SUS Reactor Clamp (20) |
|
|
|
|
