랩캠퍼스(Labcampus) : Automatic Digital Refractometer / 정밀형 디지털 굴절계, RI & % Sugar scale

General instrument > 제품별 분류 > Refractometer > 제품상세정보

Automatic Digital Refractometer / 정밀형 디지털 굴절계, RI & % Sugar scale

● Water Resistant Housing과 Easy to Clean Prism
● 700개 이상의 측정 값 Memory 기능이 있음
● 온도변화 후 Sample이 안정화 되었을때에만 측정 값을 읽음
● Digital LCD Display
● Bellingham+Stanley

(0개)

General Type

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
R09-105-173	RFM330+	Refractometer RI Range 1.32~1.58 0~100 (0.1)˚ brix	1/EA	0원	30 Day	0	문의
R09-105-180	RFM340+	Refractometer RI Range 1.32~1.58 0~100 (0.01)˚ brix	1/EA	0원	30 Day	0	문의

High Precision Type

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
R09-105-204	RFM960	Refractometer RI Range 1.30~1.70 0~100 (0.1)˚ brix	1/EA	0원	30 Day	0	문의
R09-105-211	RFM970	Refractometer RI Range 1.30~1.70 0~100 (0.01)˚ brix	1/EA	0원	30 Day	0	문의

(0개)

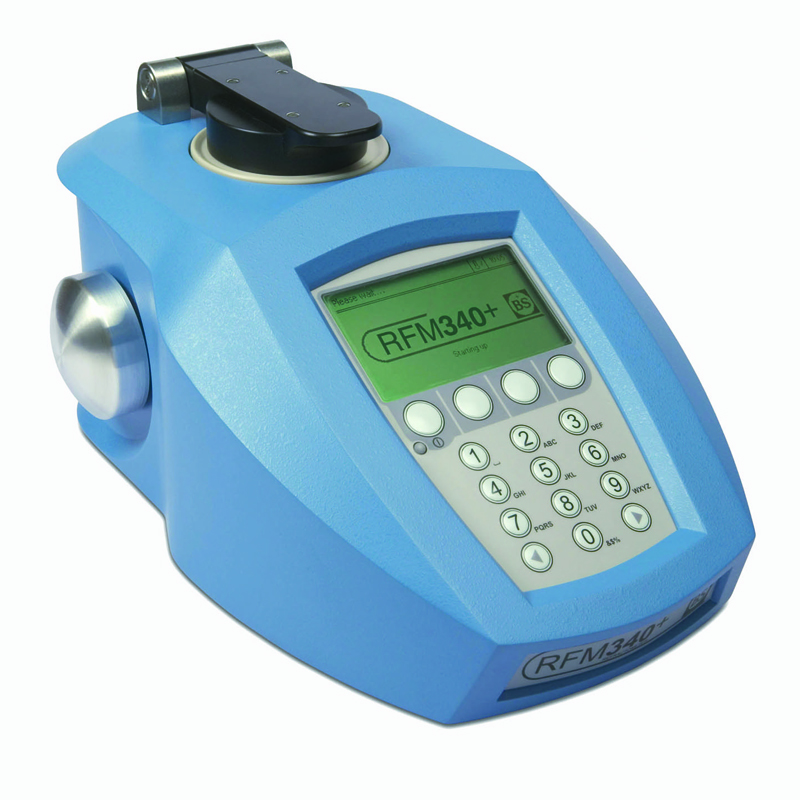

General Type
Cat. No.	Model	굴절율 (분해능)	。Brix (분해능)
R09-105-173	RFM330+	1.32~1.58 (0.0001)	0 ~ 100 (0.1)
R09-105-180	RFM340+	1.32~1.58 (0.00001)	0 ~ 100 (0.01)

● 항온을 위해 온도 조절 기능을 가지고 있는 정밀형 굴절계
● Standard Scale : RI and Sugar % (Based automatic temp. compensation)
● User Defined : 100 Scales Configurable
● Single Sapphire Prism과 316 Stainless Steel Dish
● Prism Seal 재질 : Silicon Resin

상세 규격 표
Physical Specification
Cat. No.		R09-105-173	R09-105-180
Model		RFM330+	RFM340+
Range	RI	1.32 ~ 1.58
	Resolution	0.0001	0.00001
	Accuracy	±0.0001	±0.00004
	Sugar %	0 ~ 100
	Resolution	0.1	0.01
	Accuracy	±0.1	±0.03
Presser type		Polyacetal
Reading time		Minimum 4 sec
Measuring Temperature Range		10℃ Below Ambient to 70℃
Temperature Sensor Accuracy		±0.03℃
Sample Temperature Stability		±0.05℃
Temperature Compensation Sucrose ( Brix) AG Fluids User-defined		5 ~ 70℃ Simple Coefficient (units/℃) or Polynomial Function
Temperature Stability Checks		Independently Selectable by Method
Prism		Artificial Sapphire, Φ12 mm
Prism Dish		316 Stainless Steel / PEEK
Prism Seal		Silicon / Resin (RFM330+, 340+) Kalrez® (RFM 390+, 390+5D)
Interface		1 Parallel (Printer), 2 Serial (RS232)
Illumination		Light Emitting Diode (100,000 Hours)
Temp. Control		Peltier
Power		100 ~ 240V, 50/60Hz

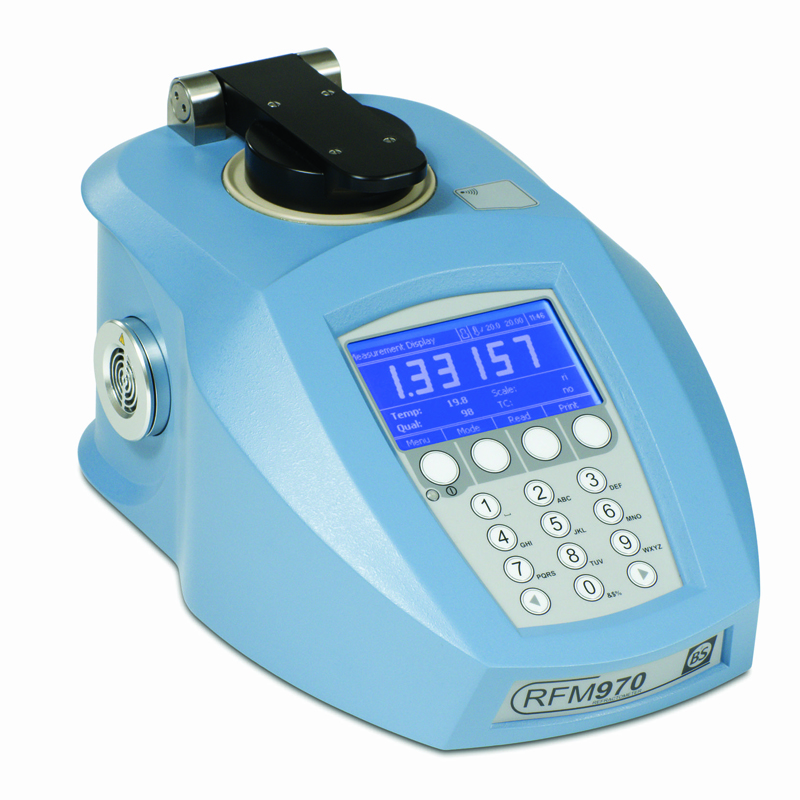

High Precision Type
Cat. No	Model	굴절률 (분해능)	。Brix (분해능)
R09-105-204	RFM960	1.30~1.70 (0.0001)	0 ~ 100 (0.1)
R09-105-211	RFM970	1.30~1.70 (0.00001)	0 ~ 100 (0.01)

● GLD, OIML, USP/EP/BP, ASTM D 5006, 1747, 2140, 1218
● FDA Regulation 21 CFR Part 11
● Peltier Temperature Control을 통한 온도조절
● RFID (Radio Frequency Identification) User Identity
● Kalrez® gasket and sapphire prism
● 환경, 제약, 석유화학, 아로마, 식품 등 High RI Sector 분야에 많이 쓰임

상세 규격 표
Physical Specification
Cat. No.		R09-105-204	R09-105-211
Model		RFM960	RFM970
Range	RI	1.32~1.58 / 1.30~1.70	1.32~1.58 / 1.30~1.70
	Resolution	0.0001	0.00001
	Accuracy	±0.0001	±0.00002
	Sugar %	0 ~ 100
	Resolution	0.1	0.01
	Accuracy	±0.1	±0.02
Presser type		Polyacetal / Peek	Polyacetal / Peek
Reading time		Minimum 4 sec
Measuring Temperature Range		0℃ Below Ambient to 80℃
Temperature Sensor Accuracy		±0.03℃
Sample Temperature Stability		±0.05℃
Temperature Compensation Sucrose ( Brix) User-defined		5 ~ 80℃ Simple Coefficient (units/℃) or Polynomial Function with Offset
Temperature Stability Checks		Independently Selectable by Method
Prism		Artificial Sapphire
Prism Dish		316 Stainless Steel / PEEK
Prism Seal		Kalrez®
Interface		1 Parallel (Printer), 2 Serial (RS232)
Illumination		Light Emitting Diode (100,000 Hours)
Temp. Control		Peltier
Power		100 ~ 240V, 50/60Hz
