랩캠퍼스(Labcampus) : 2 inch Chip Tray / 2인치 칩 트레이

(0개)

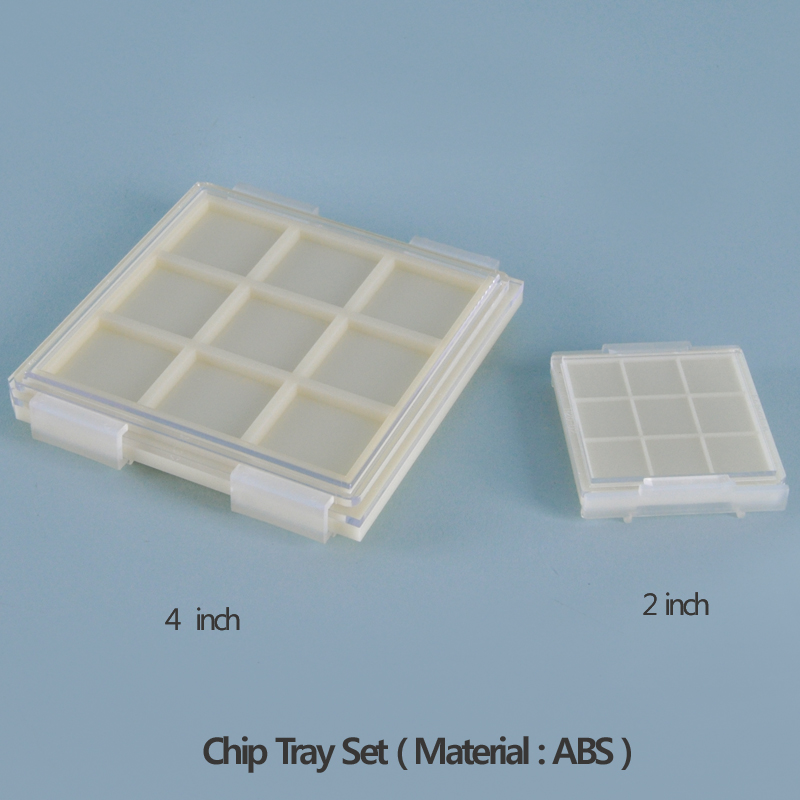

2” Chip Tray Set (Material : ABS - Ivory Tray)

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
T12-34-604	H20-080-Set	2 inch Chip Tray Set 2.01mm 100칸 Cover, Clip	1/EA	10,600원	3 Day	648
T12-34-608	H20-100-Set	2 inch Chip Tray Set 2.54mm 100칸 Cover, Clip	1/EA	11,200원	3 Day	71
T12-34-612	H20-287-Set	2 inch Chip Tray Set 7.29mm 25칸 Cover, Clip	1/EA	10,400원	7 Day	0	단종
T12-34-616	H20-411-Set	2 inch Chip Tray Set 9.58mm 16칸 Cover, Clip	1/EA	13,100원	3 Day	620
T12-34-620	H20-551-Set	2 inch Chip Tray Set 14.00mm 9칸 Cover, Clip	1/EA	9,600원	3 Day	357
T12-34-622	H20-426-Set	2 inch Chip Tray Set 10.77mm 9칸 Cover, Clip	1/EA	10,900원	3 Day	648
T12-34-624	H20-710830-Set	2 inch Chip Tray Set Blue 18.00mm 4칸 Cover, Clip	1/EA	8,000원	7 Day	0	단종

2” Chip Tray (Matearial : ABS) - Ivory Color

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
T12-34-056	H20-080	2 inch Chip Tray Ivory ABS 100칸, 2.01 x d0.86mm	1/EA	4,000원	3 Day	839
T12-34-063	H20-100	2 inch Chip Tray Ivory ABS 100칸, 2.54 x d0.86mm	1/EA	5,500원	3 Day	71
T12-34-070	H20-287	2 inch Chip Tray Ivory ABS 25칸, 7.29 x 0.81mm	1/EA	5,500원	0 Day	0	단종
T12-34-077	H20-411	2 inch Chip Tray Ivory ABS 16칸, 9.58 x 1.02mm	1/EA	6,500원	3 Day	619
T12-34-084	H20-551	2 inch Chip Tray Ivory ABS 9칸, 14.00 x 0.99mm	1/EA	3,000원	3 Day	356
T12-34-088	H20-426	2 inch Chip Tray Ivory ABS 9칸, 10.77 x 0.77mm	1/EA	5,800원	3 Day	1469
T12-34-150	H20-710830	2 inch Chip Tray Blue ABS 4칸, 18.00 x 0.64mm	1/EA	3,900원	7 Day	0	단종

2” Chip Tray Set (Material : ChipSentry® - Black Tray)

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
T12-34-650	H20-414B-Set	2 inch Chip Tray Set (Black) 3.56mm 100칸 Cover, Clip	1/EA	11,600원	3 Day	62
T12-34-654	H20-426B-Set	2 inch Chip Tray Set (Black) 10.77mm 9칸 Cover, Clip	1/EA	11,600원	3 Day	649
T12-34-658	H20-854B-Set	2 inch Chip Tray Set (Black) 21.69mm 4칸 Cover, Clip	1/EA	12,000원	3 Day	240
T12-34-662	H20-063651B-Set	2 inch Chip Tray Set (Black) 30칸(15x2열) Cover, Clip	1/EA	~~12,000원~~ 7,200원	3 Day	648

2” Chip Tray (Material : ChipSentry®) - Black Color

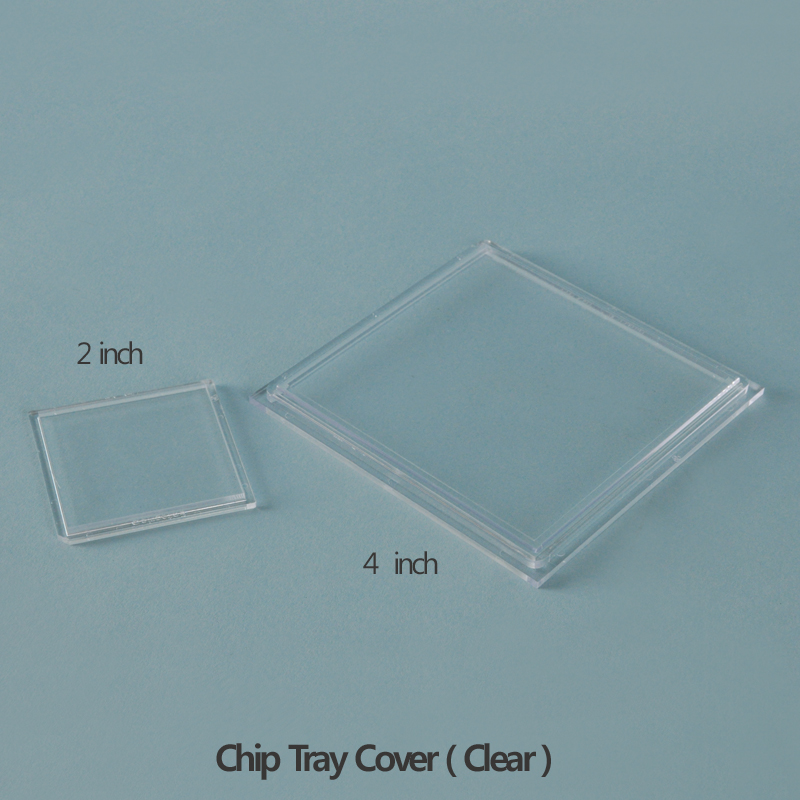

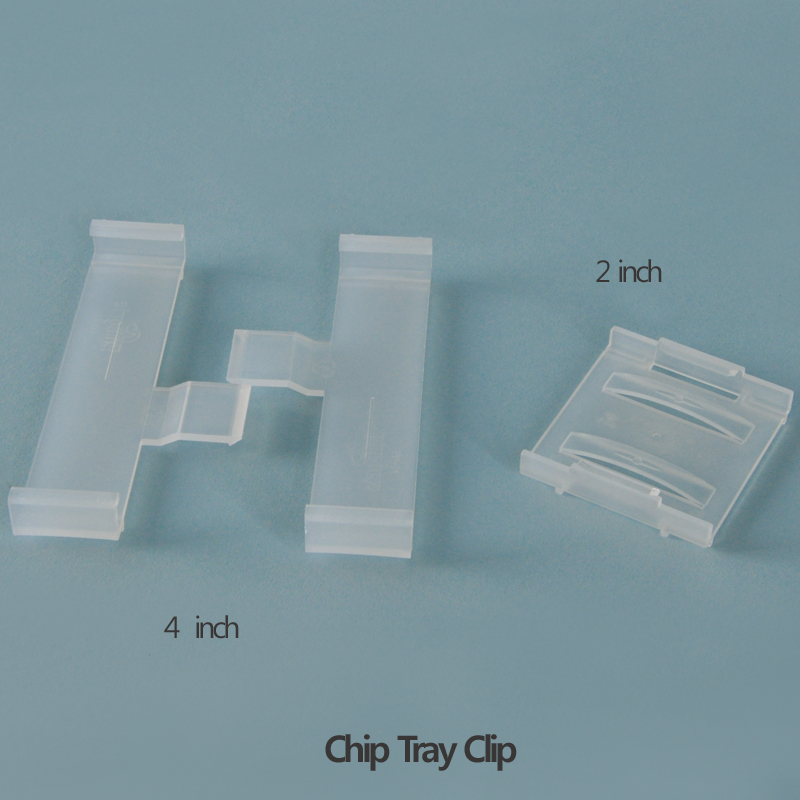

2” Chip Tray Cover & Clip

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
T12-34-189	H20-04B-0615	2 inch Chip Tray Clip Natural PP	1/EA	1,600원	3 Day	972
T12-34-196	H20-02-1216	2 inch Chip Tray Cover Clear styrene	1/EA	5,300원	3 Day	651
T12-34-203	H22-02-1415	2 inch Chip Tray Cover Ivory ABS	1/EA	2,700원	0 Day	0	단종
T12-34-210	H20-02-66C02	2 inch Chip Tray Cover Black PC ChipSentry®	1/EA	3,300원	3 Day	281

(0개)

Technical Data
Material	Code	Description	Description Color	Static Protective	Surface Resistivity (ohms/sq.)	Static Decay Time (sec.)	Dimensional Stability	Chemical Resistance	Temp. Limit	For Applications Requiring
ChipSentry, SRAT-PRO 500	-66C02	Polycarbonate with carbon powder	Black	Yes	10(3) - 10(6)	<0.01	Excellent	Poor	70℃	Static protection and dimensional stability
ABC	1412	Acrylonitrile butadiene styrene with a color additive	Ivory	No	-	-	Good	Poor	70℃	Dimensional stability, not static protection

2” Chip Tray Set (재질 : ABS - Ivory Tray)
Cat. No.	Model	칸수	Description
T12-34-604	H20-080-Set	100	Tray + Cover + Clip
T12-34-608	H20-100-Set	100
T12-34-612	H20-287-Set	25
T12-34-616	H20-411-Set	16
T12-34-620	H20-551-Set	9
T12-34-622	H20-426-Set	9

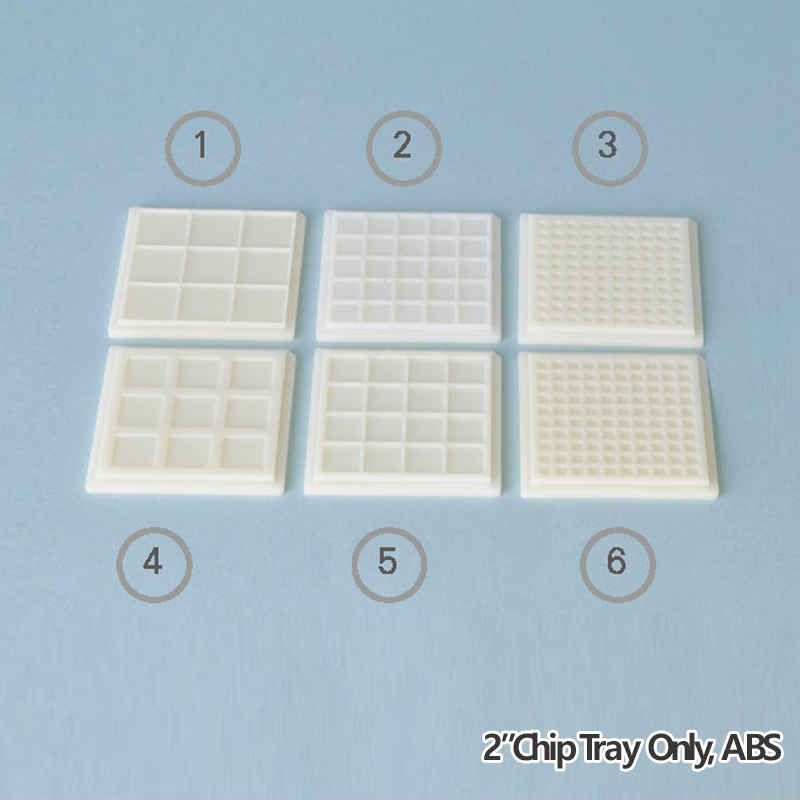

2” Chip Tray (재질 : ABS) - Ivory Color
Cat. No.	Model	칸수	Pocket Size
T12-34-056	H20-080	100	2.01sq×d0.86mm③
T12-34-063	H20-100	100	2.54sq×d0.86mm⑥
T12-34-070	H20-287	25	7.29sq×d0.81mm②
T12-34-077	H20-411	16	9.58sq×d1.02mm⑤
T12-34-084	H20-551	9	14.00sq×d0.99mm①
T12-34-088	H20-426	9	10.77sq×d0.77mm④

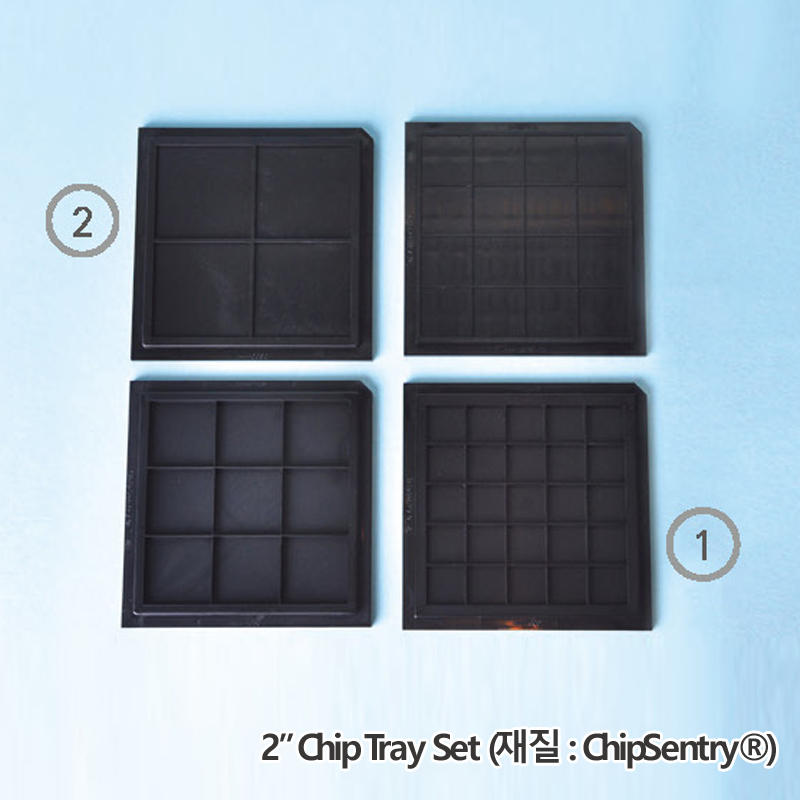

2” Chip Tray Set (재질 : ChipSentry® - Black Tray)
Cat. No.	Model	칸수	Description
T12-34-650	H20-414B-Set	100	Tray + Cover + Clip
T12-34-653	H20-414B6-Set	100
T12-34-654	H20-426B-Set	9
T12-34-658	H20-854B-Set	4
T12-34-662	H20-063651B-Set	30 (15×2)

● 구성 : Tray (ChipSentry® - Black Color), Cover (H20-02-1216), Clip (H20-04B-0615)

2” Chip Tray (재질 : ChipSentry®) - Black Color
Cat. No.	Model	칸수	Pocket Size
T12-34-133	H20-414	100	3.56sq×d0.44mm①
T12-34-135	H20-414-6	100	3.56sq×d1.52mm
T12-34-140	H20-426	9	10.77sq×d0.77mm
T12-34-147	H20-854	4	21.69sq×d1.02mm ②
T12-34-154	H20-063651	30 (15×2)	1.60×16.51×d0.30mm
