Digital Orbital Shaker / 디지털 오비탈 쉐이커

● Digital Speed & Time Control
● 저소음 반복 균일 운동
● 다양한 Attachment로 거의 모든 모양의 Flask 등 용기 사용 가능
● Over Speed Detection & Protection
● Shaker 본체만의 구성이며, Attachment는 별도 구매해야 함
● DLAB

(0개)

중형 Digital 오비탈 쉐이커 Only
Cat. No.	Model	Max. Road	Speed
S04-35-100	SKO330-PRO	7.5 kg	100 ~ 500 rpm

소형 Digital 오비탈 쉐이커 Only
Cat. No.	Model	Max. Road	Speed
S04-35-200	SKO180-PRO	2.5 kg	100 ~ 800 rpm

Optional Platform for SKO330
Cat. No.	Model	Description

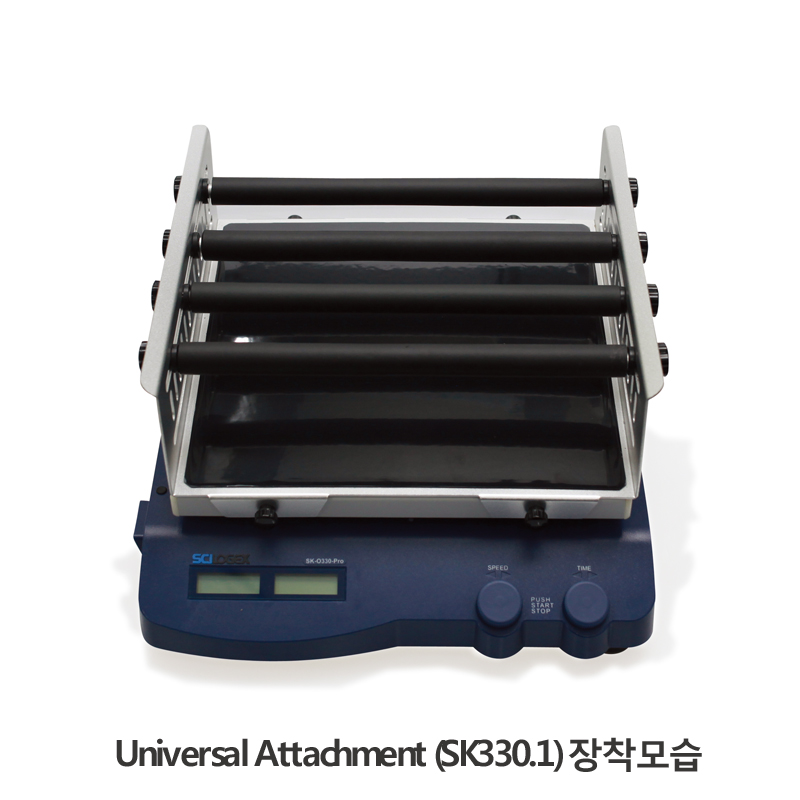

S04-35-150	SK330.1	Universal Attachment

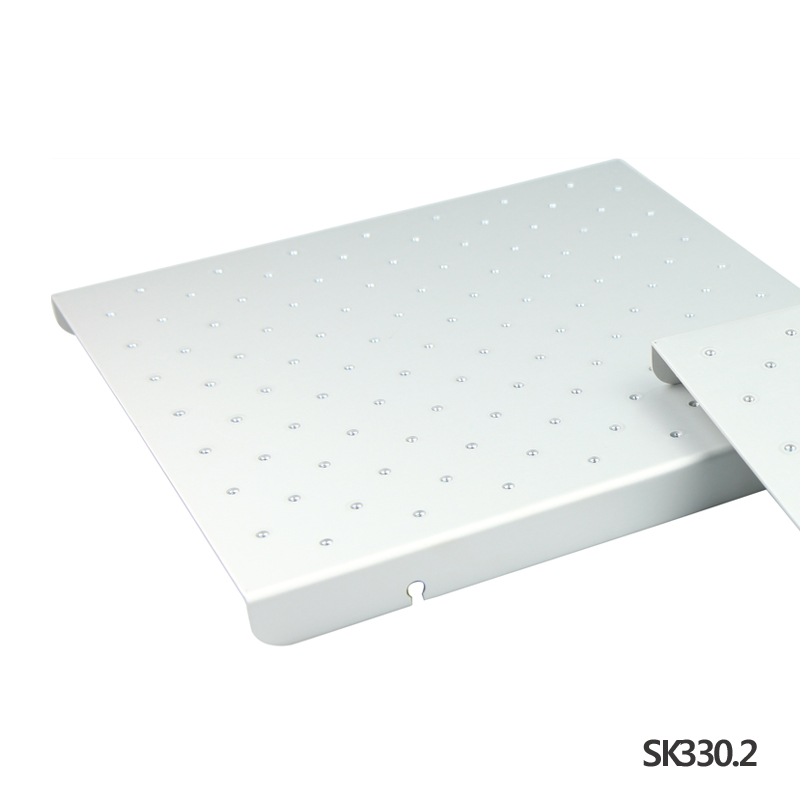

S04-35-154	SK330.2	Fixing Clip Attachment w/o Holder

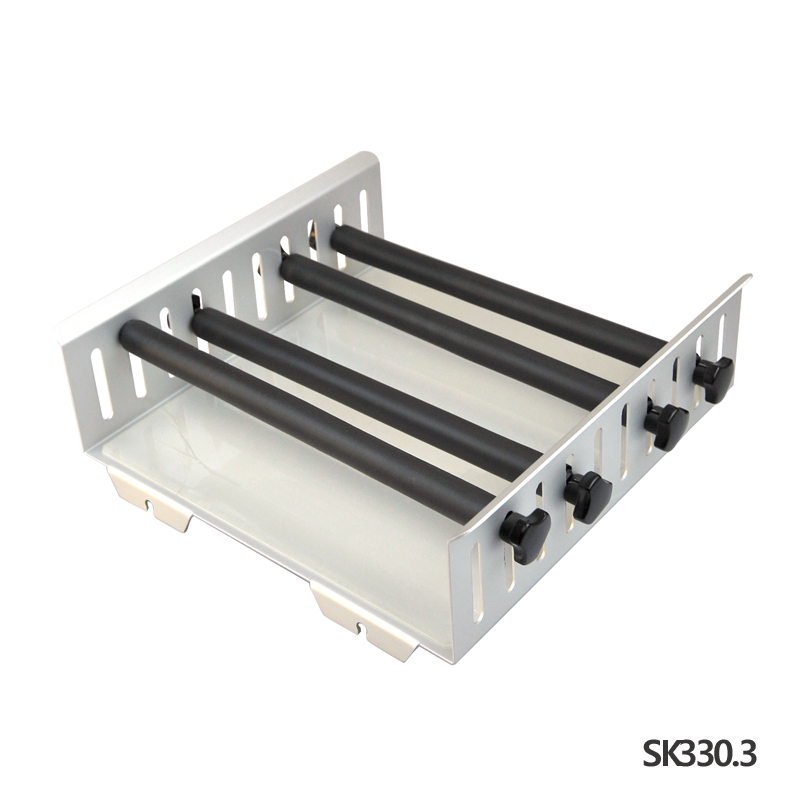

S04-35-155	SK330.3	Lengthway Roller Attachment

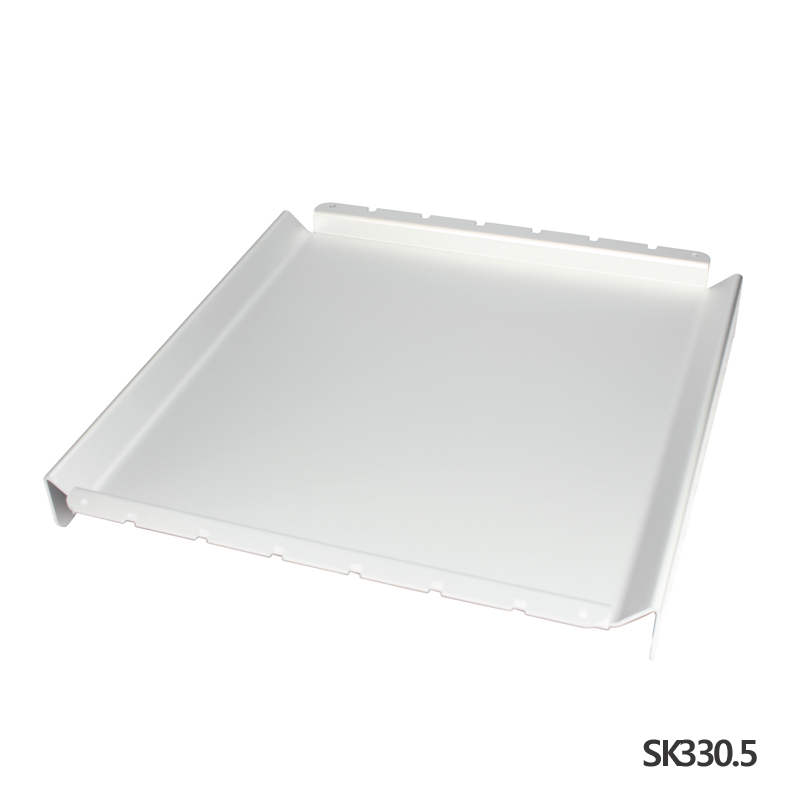

S04-35-158	SK330.5	Dish Attachment Non-Slip Mat

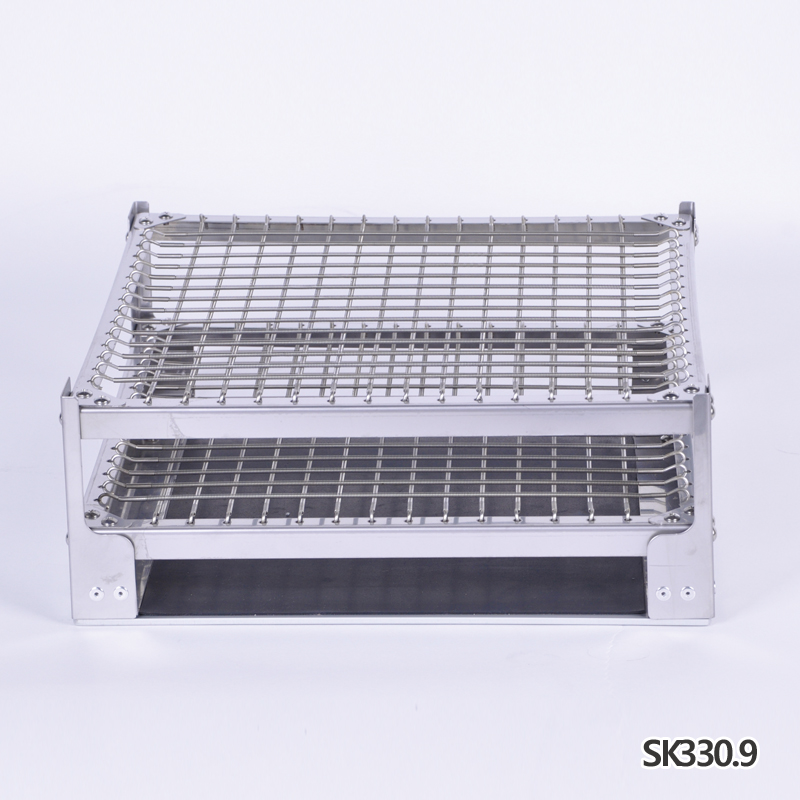

S04-35-162	SK330.9	Wire Spring Attachment

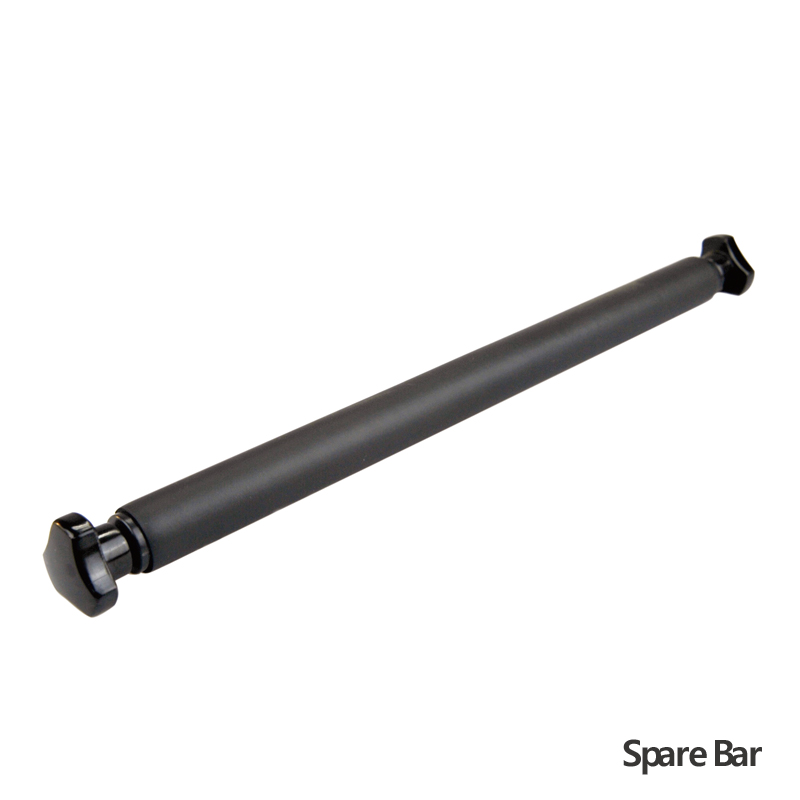

S04-35-186	H-703301	Spare Bar for SK330.1

Optional Platform for SKO180
Cat. No.	Model	Description
S04-35-250	SK180.1	Universal Attachment
S04-35-254	SK180.2	Fixing Clip Attachment w/o Holder
S04-35-255	SK180.3	Lengthway Roller Attachment
S04-35-258	SK180.4	Dish Attachment Non-Slip Mat
S04-35-262	SK180.9	Wire Spring Attachment
S04-35-286	H-701801	Spare Bar for SK180.1

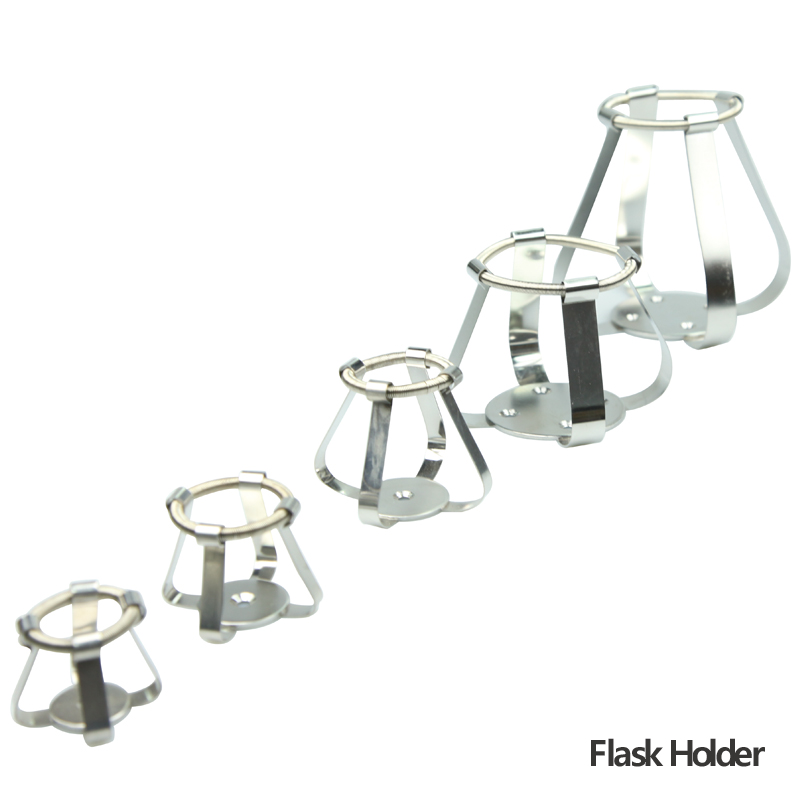

Optional Flask Holder
Cat. No.	Model	Description
S04-35-266	H-702210	Flask Clip for 25 ml
S04-35-270	H-702220	Flask Clip for 50 ml
S04-35-274	H-702230	Flask Clip for 100 ml
S04-35-278	H-702240	Flask Clip for 250 ml
S04-35-282	H-702250	Flask Clip for 500 ml

상세 규격 표
Cat. No.	S04-35-100	S04-35-200
Model	SKO330-PRO	SKO180-PRO
Orbital Diameter	10 mm	4 mm
Max. Load(with Attachment)	7.5 Kg	2.5 Kg
Motaor Rating Input / Output	28 / 15 W	28 / 15 W
Speed Range	100 ~ 500 rpm	100 ~ 800 rpm
Timer	Yes	Yes
Overall Size	d420×w370×h100 mm	d340×w300×h100 mm
Permissble Temp / Humidity	5 ~ 40℃ / 80%	5 ~ 40℃ / 80%
Protection Class acc. to Din EN 60529	IP 21	IP 21
전기 규격	100 ~ 240 V, 50/60 Hz
