랩캠퍼스(Labcampus) : IKA Rocking Shaker / 2D 락커, Rocker 2D Series

General instrument > 제품별 분류 > Shaker > 제품상세정보

IKA Rocking Shaker / 2D 락커, Rocker 2D Series

● Touch Keypad를 이용하여 쉽게 조작 가능
● 시소 궤적으로 Rocking
● Dual Platform Option을 통하여 2가지 악세사리를 동시 사용가능
● Speed 조절 가능
● Protection Class Acc. to DIN EN 60529: IP21
● IKA

(0개)

상세 규격 표
Cat. No.	Model	Type	Angle

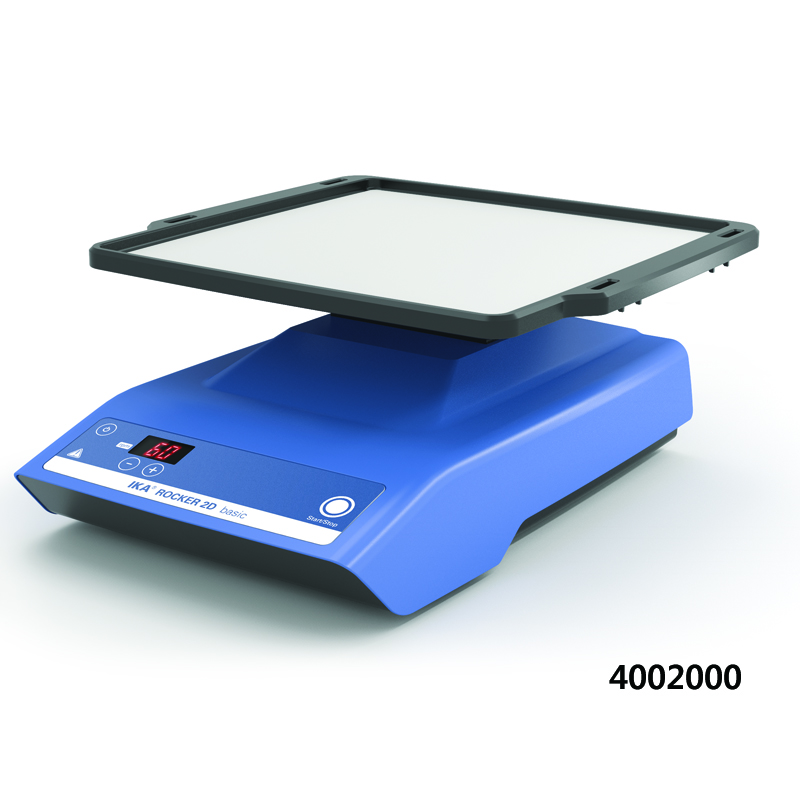

S04-05-187	4002000	Rocker 2D basic	8°

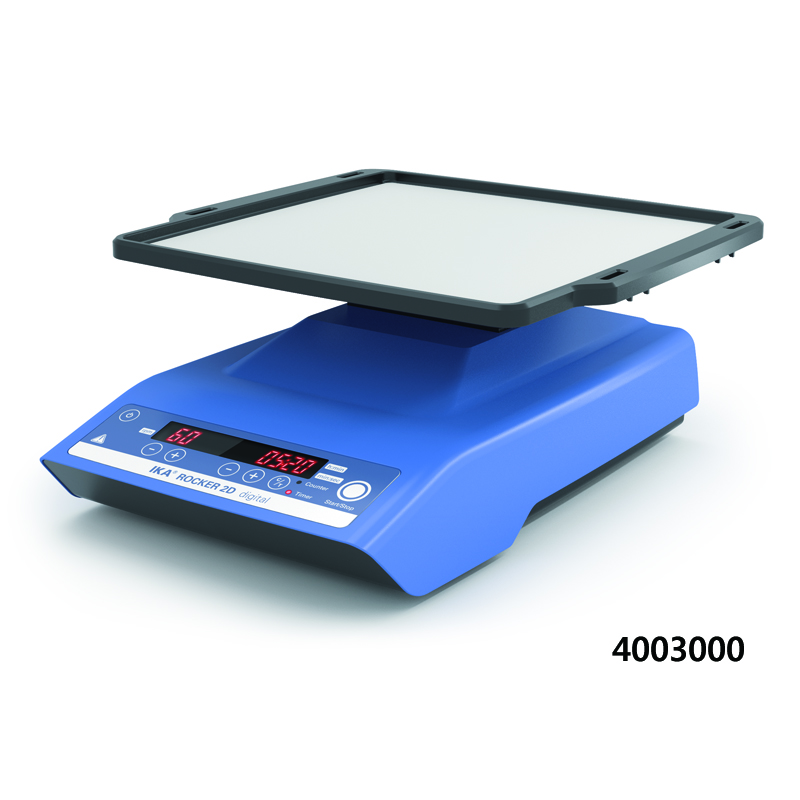

S04-05-194	4003000	Rocker 2D digital	0 ~ 15°

상세 규격 표
Cat. No.	S04-05-187	S04-05-194
Type	Rocker 2D basic	Rocker 2D digital
Max. Shaking weight	2 kg
Motor 입출력	16/9 W
Speed Range	5 ~ 80 rpm
Speed Display	N/A	가능
Timer	N/A	1 sec ~ 99 hr 55 min
Size	w280×d330×150mm
Weight	2.2 kg
전기규격	110 ~ 240 V, 50/60 Hz
DC Voltage	24 V

Optional Accessory
Cat. No.	Model	Type	Application

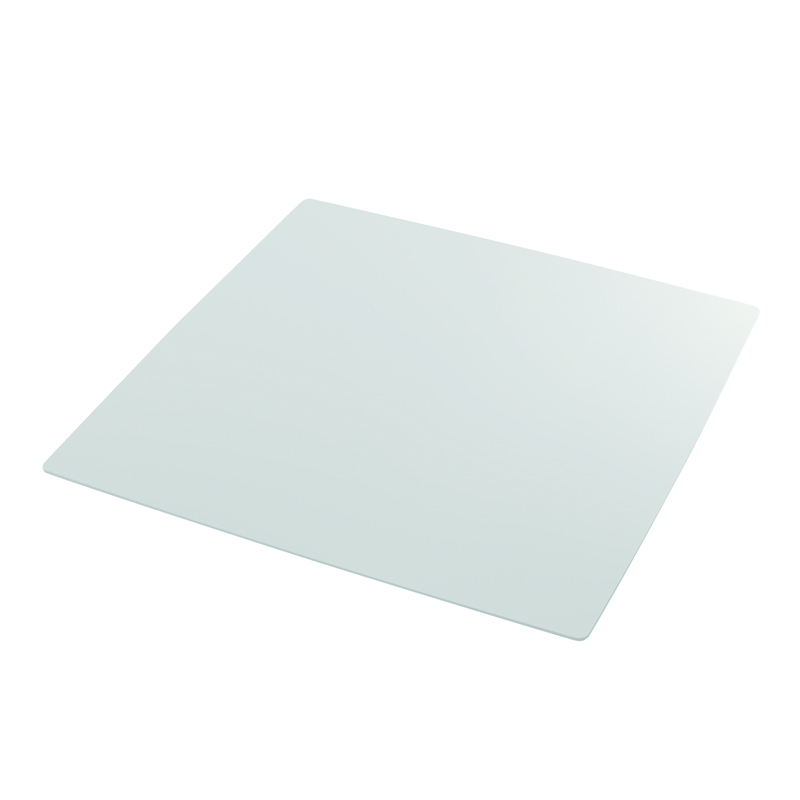

S04-05-770	4532000	RD1 Mat	Universal

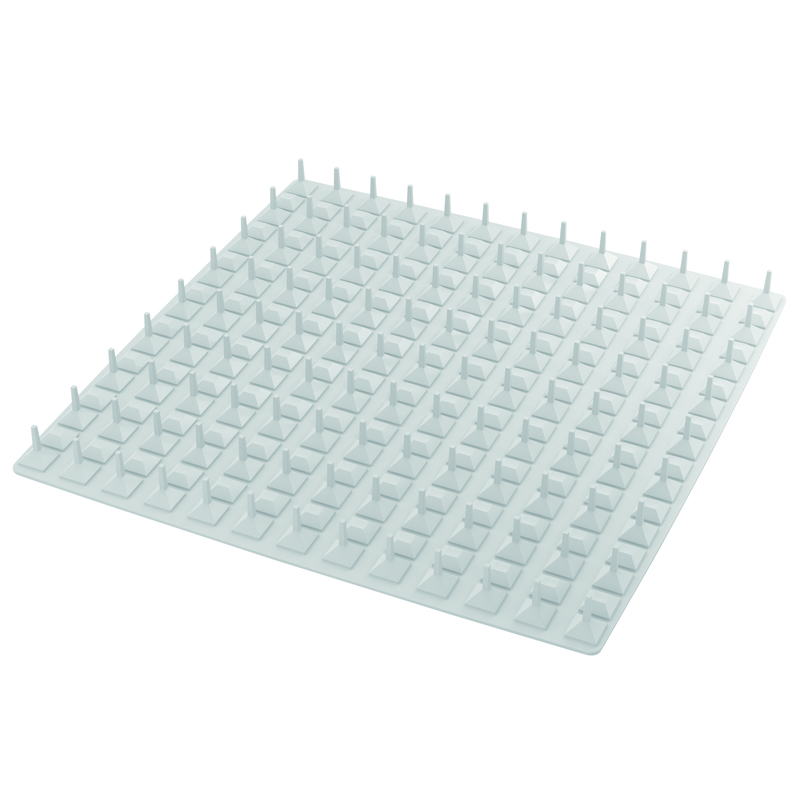

S04-05-777	4532100	RD2 burled Mat	Universal

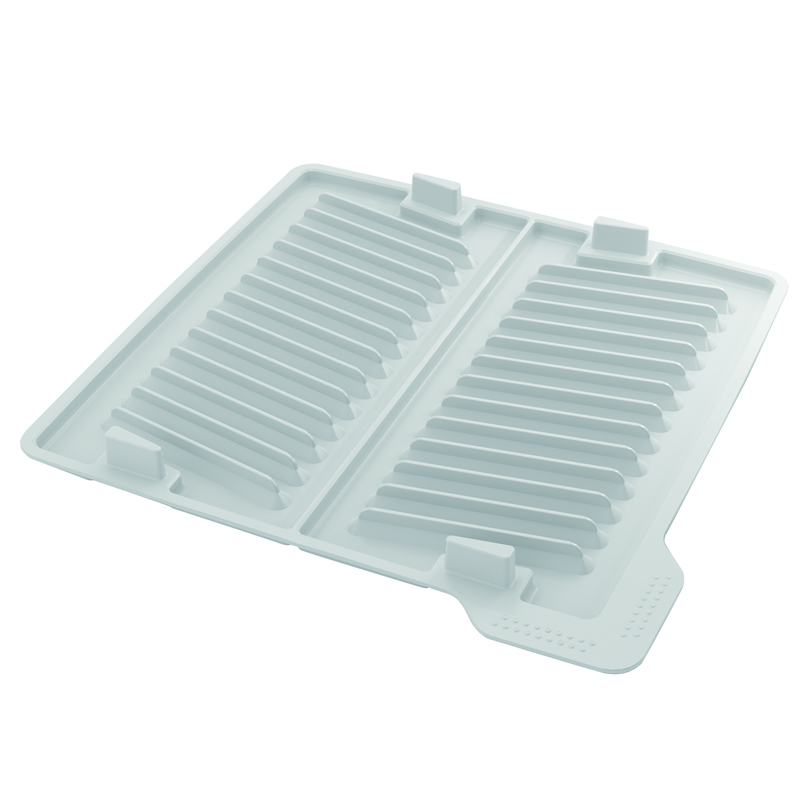

S04-05-784	4532200	TB1 Tray	5 ml(Φ12 mm)×28

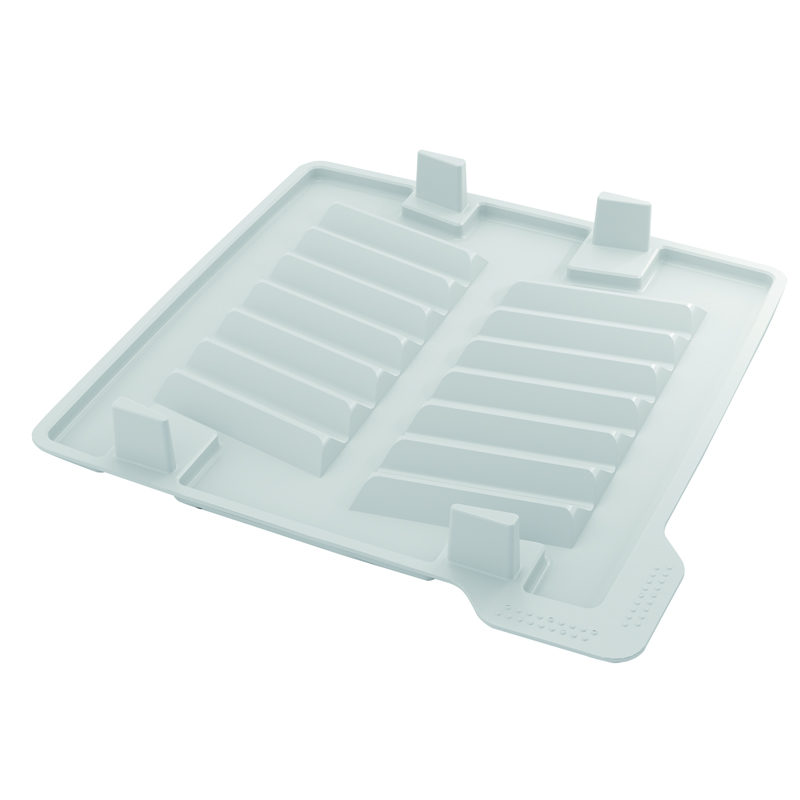

S04-05-791	4532300	TB2 Tray	15 ml(Φ16 mm)×16

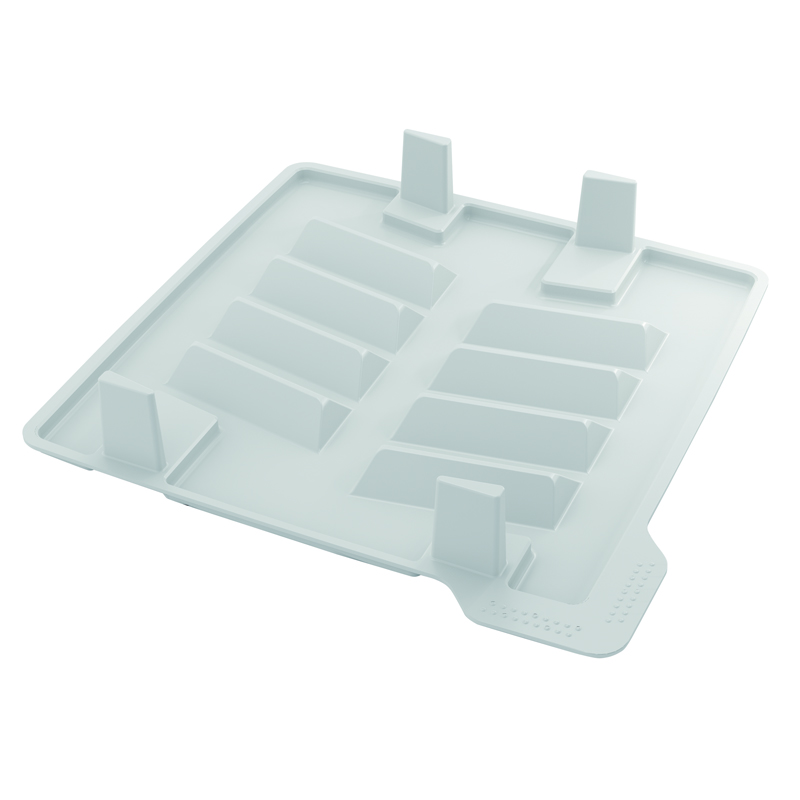

S04-05-798	4532400	TB3 Tray	30 ml(Φ25 mm)×14
S04-05-805	4532500	TB4 Tray	50 ml(Φ28 mm)×10
