Bottle Top Dispenser, Dispensette®S TA / 불산 및 고순도용 바틀 탑 디스펜서

● Trace Analysis를 위한 High-Purity Acids, Alcalis or Hydrogen Peroxide 용
● Hydrofluorid acid (HF) 용으로 사용 (Platinum-Iridium Valve Spring)
● Analog Adjustment
● 내부에 Sealing Ring이 없어 유지 보수 및 세척이 간단함
● IS09001과 GLP에 따른 보정 작업이 가능
● 2가지 Valve Spring
- Platinum-Iridium : Not Suitable Hydrofluoric Acid and Sodium hydroxide.30%
- Tantal : Not Suitable Hydrogen Peroxide
● 공통 구성품 : Dispenser with GL45 Thread, Conformity Certified,
Performance Certificate, Discherging Tube,
Telescoping Fillting Tube, Mounting Tool,
Adapter (GL25, GL28, GL32, GL38, S40 용)
● Not Autoclavable, Not Suitable for Organic Solvent
● Brand GmBH

(0개)

Without Recirculation Valve

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적

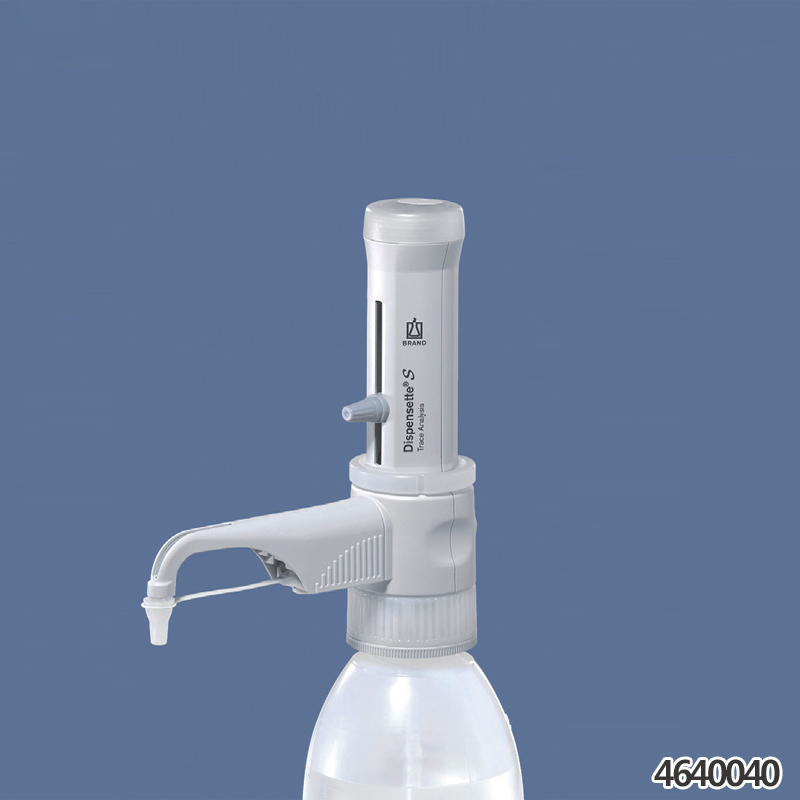

D03-59-600	4640040	Dispensette® S TA Bottle Top Dispenser Analog, w/o Valve spring Plat./Ir., 1-10ml	1/EA	1,469,200원	30 Day	0
D03-59-604	4640240	Dispensette® S TA Bottle Top Dispenser Analog, w/o Valve spring Tantal, 1-10ml	1/EA	1,469,200원	30 Day	0

With Recirculation Valve

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적

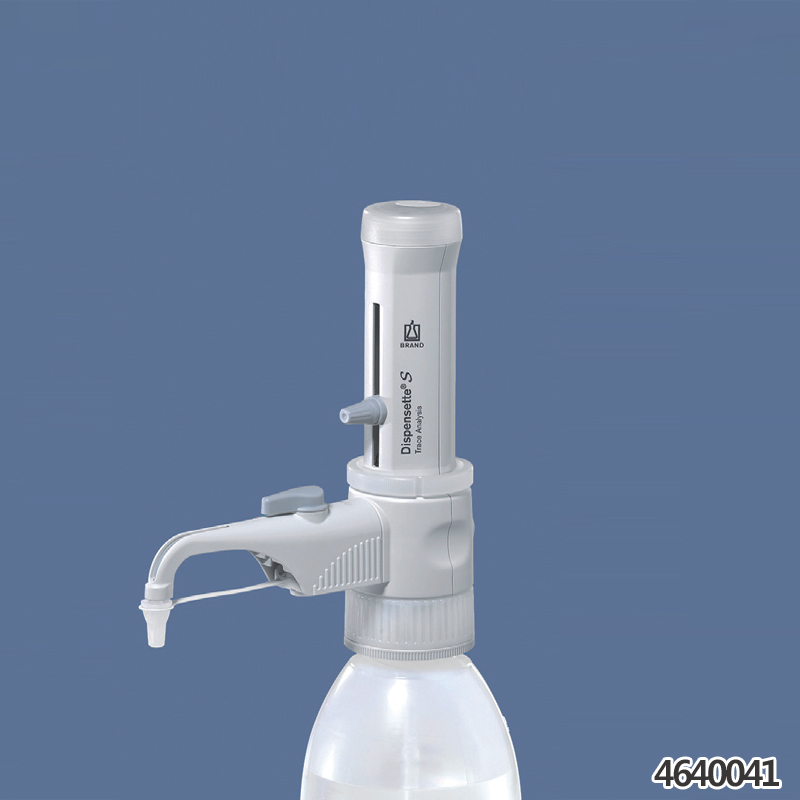

D03-59-650	4640041	Dispensette® S TA Bottle Top Dispenser Analog, w/Valve spring Plat./Ir., 1-10ml	1/EA	1,565,200원	30 Day	0
D03-59-654	4640241	Dispensette® S TA Bottle Top Dispense Analog, w/Valve spring Tantal, 1-10ml	1/EA	1,565,200원	3 Day	1

(0개)

Without Recirculation Valve
Cat. No	Model	용량	Valve spring	눈금	Accuracy	Coefficient of variation
D03-59-600	4640040	1 ~ 10 ml	Platin-Iridium	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)
D03-59-604	4640240	1 ~ 10 ml	Tantal	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)

With Recirculation Valve
Cat. No	Model	용량	Valve spring	눈금	Accuracy	Coefficient of variation
D03-59-650	4640041	1 ~ 10 ml	Platin-Iridium	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)
D03-59-654	4640241	1 ~ 10 ml	Tantal	0.2 ml	≤±0.5%(50 ul)	≤±0.1%(10 ul)

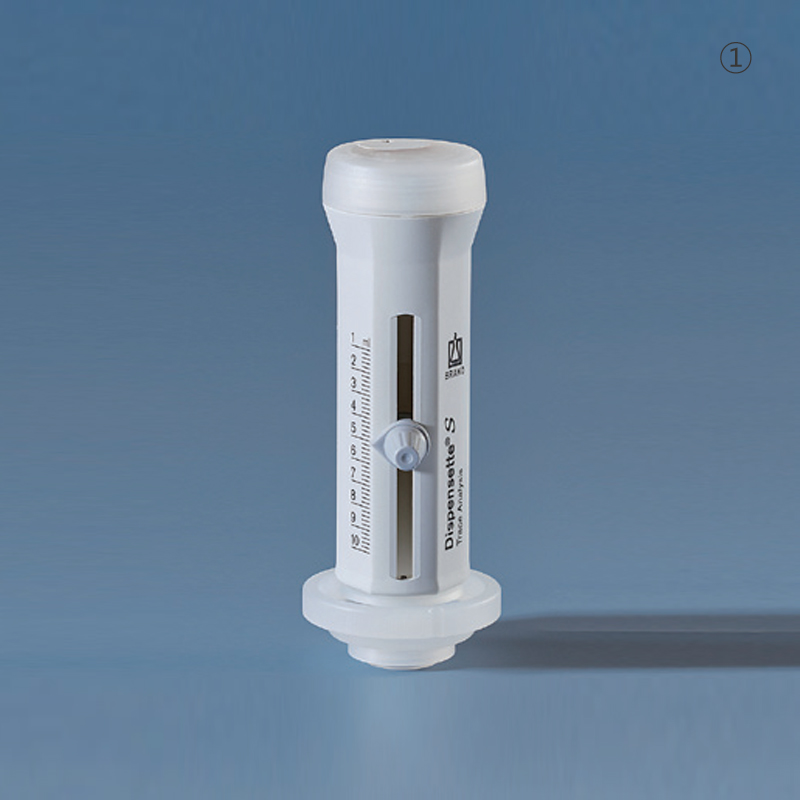

Dispensing Cartridge with Safety Ring ①
Cat. No	Model	용량	보증서
D03-59-660	708035	10 ml	포함

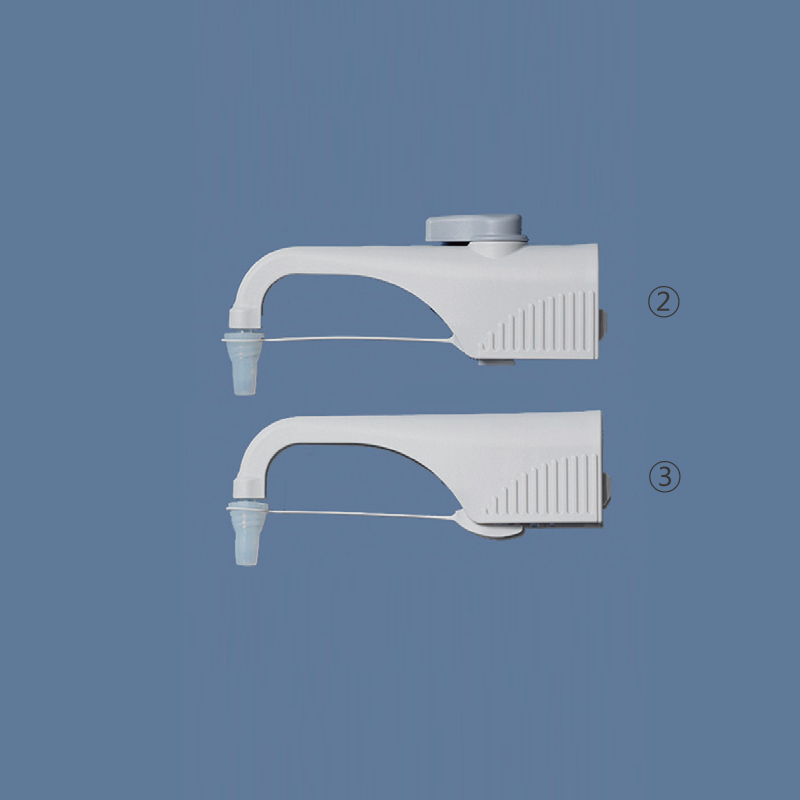

● Discharge Tube
with Recirculation Valve ②
Cat. No	Model	Valve Spring	Length
D03-59-664	708122	Platinum-iridium	105 mm
D03-59-654	708124	Tantalum	105 mm

without Recirculation Valve ③
Cat. No	Model	Valve Spring	Length
D03-59-672	708022	Platinum-iridium	105 mm
D03-59-676	708024	Tantalum	105 mm

without Recirculation Valve ③
Cat. No	Model	용량	Tube Size
D03-59-680	708132	10 ml	od3×id2 mm
