랩캠퍼스(Labcampus) : Porcelain Crucible / 자제 도가니

General instrument > 제품별 분류 > Crucible > 제품상세정보

Porcelain Crucible / 자제 도가니

■ Max. Temp : 1000℃
■ Water Absorption Capacity : 0%
■ Density : 2.4g/cm3
■ Jipo / LabCeramic®

(0개)

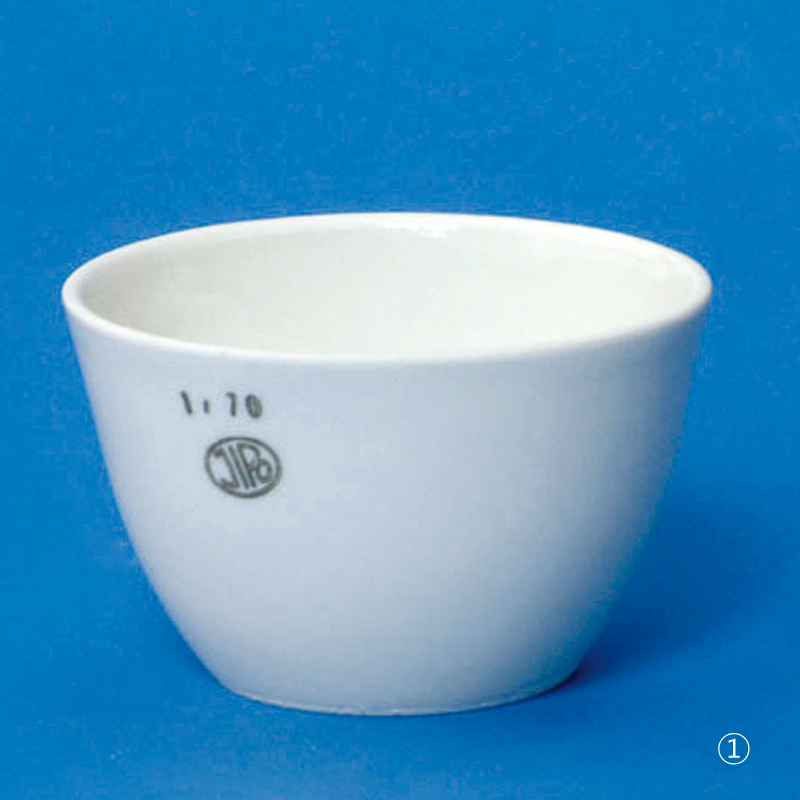

Low Form / 단형 자제 도가니 Only ①
Cat. No	Model	용량	Size
C24-128-111	1/30	5 ml	Φ30×h19 mm
C24-128-113	1/35	10 ml	Φ35×h22 mm
C24-128-115	1/40	17 ml	Φ40×h25 mm
C24-128-117	1/45	21 ml	Φ45×h28 mm
C24-128-119	1/50	34 ml	Φ50×h32 mm
C24-128-121	1/60	62 ml	Φ60×h38 mm
C24-128-123	1/70	91 ml	Φ70×h44 mm

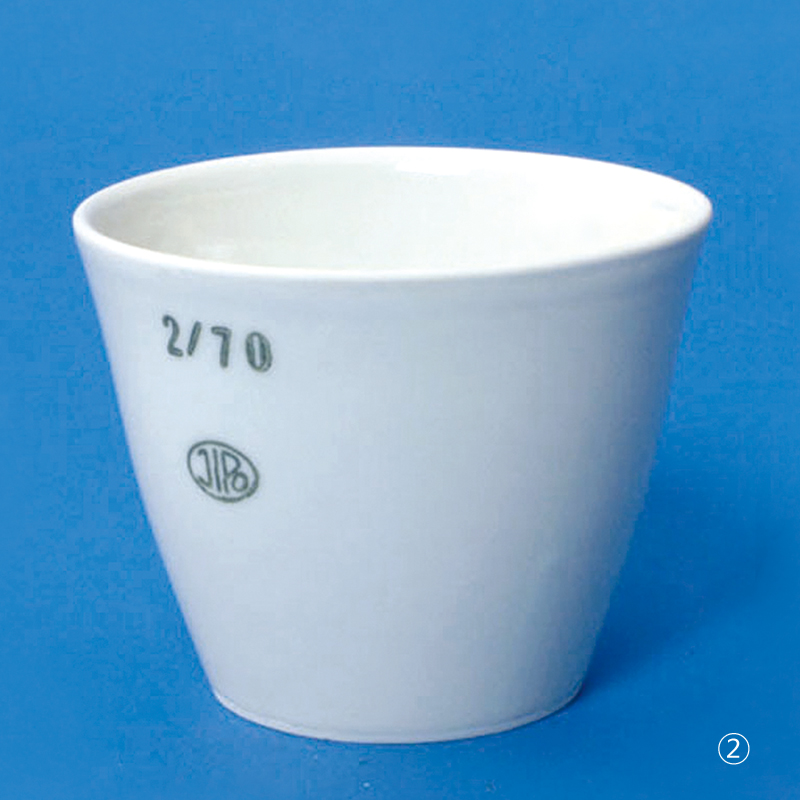

Middle Form / 중형 자제 도가니 Only ②
Cat. No	Model	용량	Size
C24-128-131	2/30	10 ml	Φ30×h25 mm
C24-128-133	2/35	12 ml	Φ35×h28 mm
C24-128-135	2/40	20 ml	Φ40×h32 mm
C24-128-137	2/45	30 ml	Φ45×h36 mm
C24-128-139	2/50	45 ml	Φ50×h40 mm
C24-128-141	2/60	80 ml	Φ60×h48 mm
C24-128-143	2/70	120 ml	Φ70×h56 mm
C24-128-145	2/80	200 ml	Φ80×h62 mm

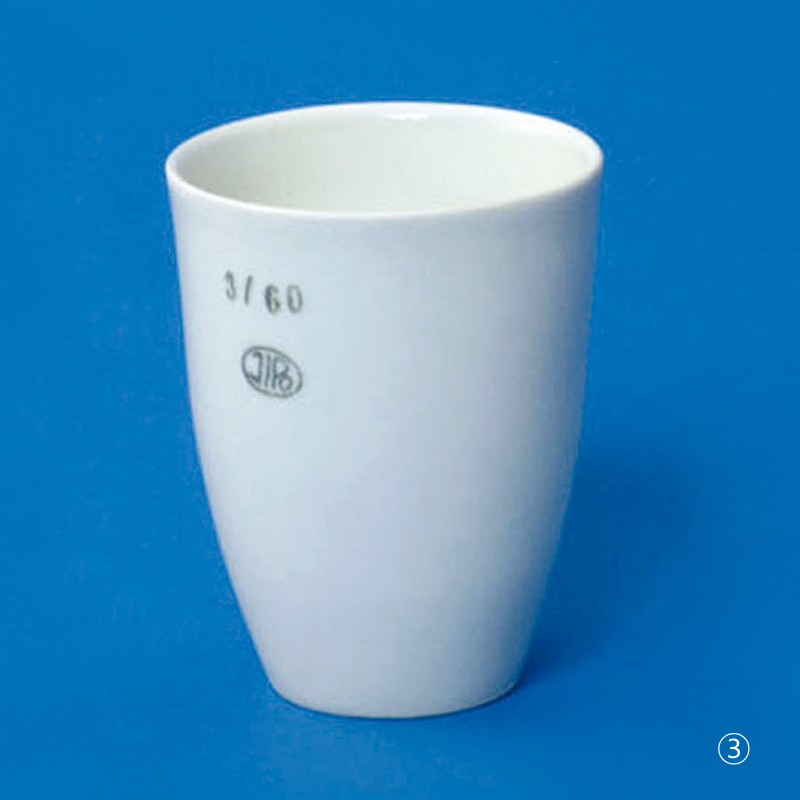

High Form / 장형 자제 도가니 Only ③
Cat. No	Model	용량	Size
C24-128-161	3/30	15 ml	Φ30×h38 mm
C24-128-163	3/35	26 ml	Φ35×h44 mm
C24-128-165	3/40	35 ml	Φ40×h50 mm
C24-128-167	3/45	50 ml	Φ45×h56 mm
C24-128-169	3/50	72 ml	Φ50×h62 mm
C24-128-171	3/60	120 ml	Φ60×h75 mm

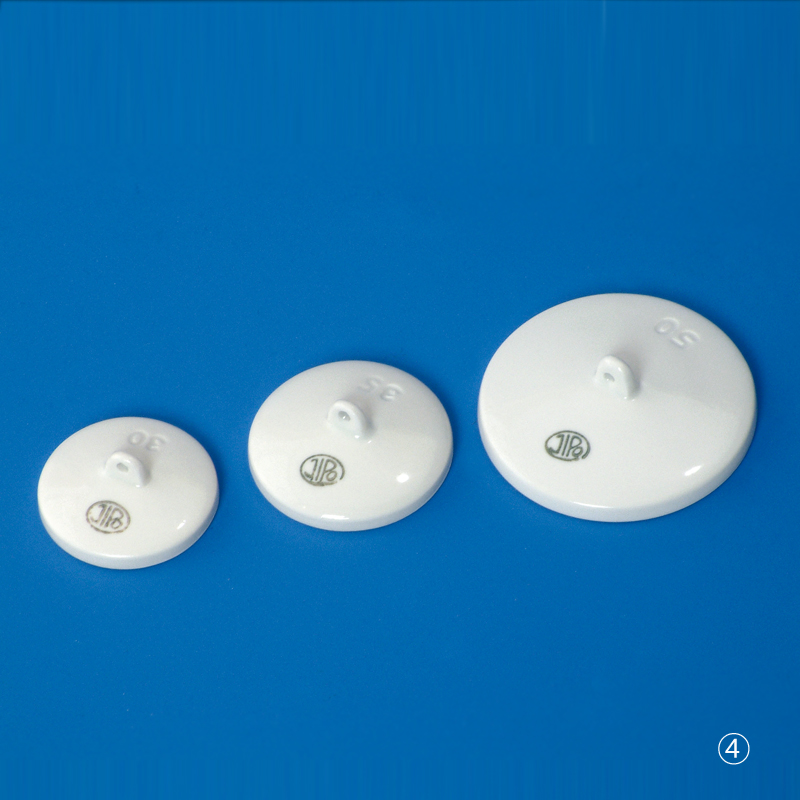

Crucrible Lid / 자제 도가니 뚜껑 Only ④
Cat. No	Model	Size	사용도가니
C24-128-201	D30	od34 mm	od30 mm용
C24-128-203	D35	od39 mm	od35 mm용
C24-128-205	D40	od44 mm	od40 mm용
C24-128-207	D45	od49 mm	od45 mm용
C24-128-209	D50	od54 mm	od50 mm용
C24-128-211	D60	od64 mm	od60 mm용
C24-128-213	D70	od74 mm	od70 mm용
C24-128-215	D80	od84 mm	od80 mm용
