랩캠퍼스(Labcampus) : Liquid Nitrogen Storage Vessels / 액체 질소 보관용 베셀, 소용량

General instrument > 제품별 분류 > Cryogenic > 제품상세정보

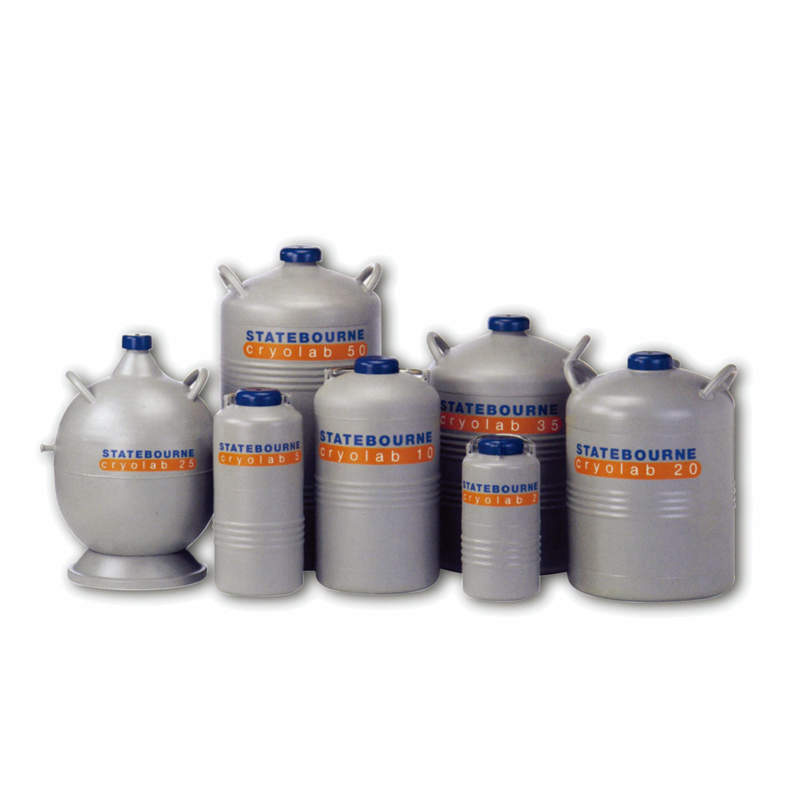

Liquid Nitrogen Storage Vessels / 액체 질소 보관용 베셀, 소용량

■ Strong, Lightweight Aluminium Construction
■ Roller Base와 LN2 Dispenser는 별도임 (Accessory란 참조)
■ Statebourne / Cryolab®

(0개)

Liquid Nitrogen Storage Vessels / 액체 질소 보관용 베셀, 소용량

Liquid withdrawal Device

Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
C25-07-612	9701056	Liquid wIth Drawal Device 51mm neck Cryolab 20,25	1/EA	2,285,800원	3 Day	1
C25-07-616	9701057, 1724800	Liquid wIth Drawal Device 63mm neck Cryolab 50	1/EA	2,362,900원	7 Day	0	단종
C25-07-622	9701157	Liquid wIth Drawal Device 51mm neck Cryolab 20,25 (w/4ft Transfer Hose)	1/EA	2,553,000원	7 Day	0	단종
C25-07-628	9701152	Liquid wIth Drawal Device 63mm neck Cryolab 50 (w/4ft Transfer Hose)	1/EA	2,629,900원	7 Day	0	단종

(0개)

상세 규격 표
Cat. No	Model	용량	Size
C25-07-005	Cryolab 2	2 L	Φ185×h385 mm
C25-07-010	Cryolab 5	5 L	Φ216×h495 mm
C25-07-015	Cryolab 10	10 L	Φ305×h560 mm
C25-07-020	Cryolab 20	20 L	Φ407×h570 mm
C25-07-025	Cryolab 25	25 L	Φ395×h585 mm
C25-07-030	Cryolab 35	35 L	Φ407×h650 mm
C25-07-035	Cryolab 50	50 L	Φ407×h810 mm

Liquid withdrawal Device
Cat. No	Model	적용 Vessel Neck Size
C25-07-610	9701306	51 mm for Cryolab 10
C25-07-612	9701056	51 mm for Cryolab 20, 25
C25-07-614	9701057A	63 mm for Cryolab 35
C25-07-616	9701057	63 mm for Cryolab 50
C25-07-622	9701157	51 mm for Cryolab 20, 25 (w/ 4ft Transfer Hose)
C25-07-624	9701152A	63 mm for Cryolab 35 (w/ 4ft Transfer Hose)
C25-07-628	9701152	63 mm for Cryolab 50 (w/ 4ft Transfer Hose)

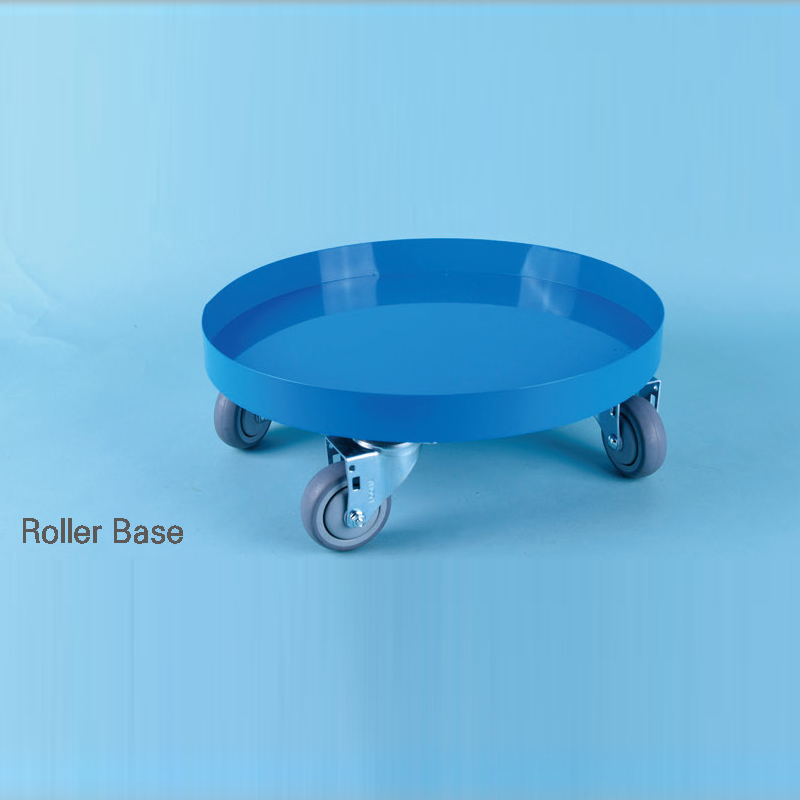

Roller Base
Cat. No	Model	Description
C25-07-500	9902082	for Cryolab 20, 35, 50
C25-07-510	9901063	for Cryolab 25
