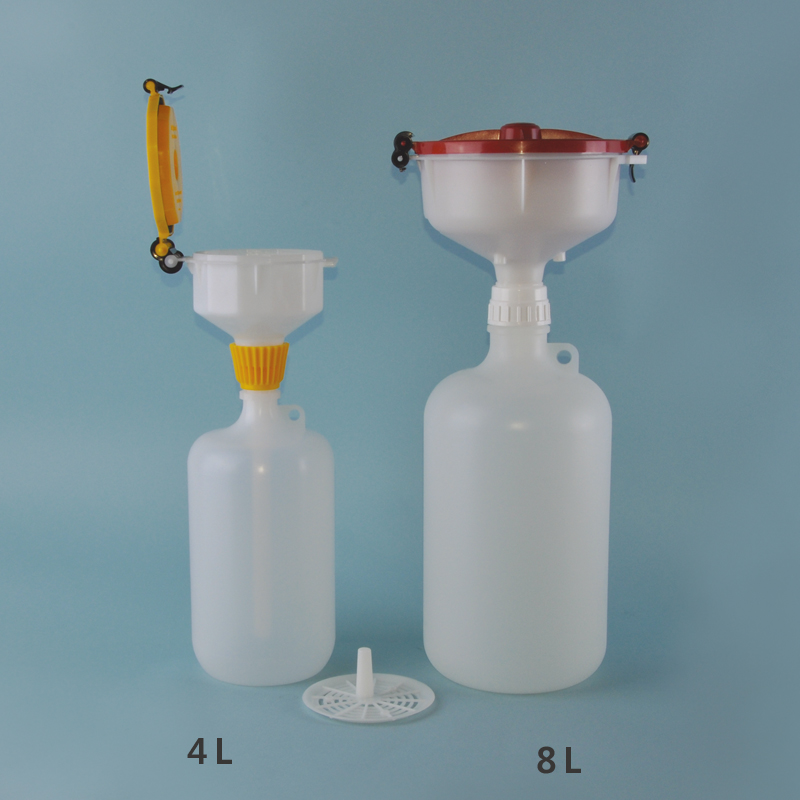

Safety Waste System, Safety Funnel+Container
Safety Funnel Only
Secondary Container
GL45 Adapter for 38-430 Thread
Cap Conecting Adapter
For Hose Barb, 호스 연결용
For PTFE Tubing, PTFE와 같은 딱딱한 호스 연결용
Vent Filter
Safety Cap Basic, GL45 Cap
Cat. No.
Model
Funnel Top
용 기
Thread
S01-132-101
SWC-301S
Φ152 mm
4 L, PP
38-430
S01-132-103
CG-1759-02S
Φ203 mm
8 L, PP
53 mm

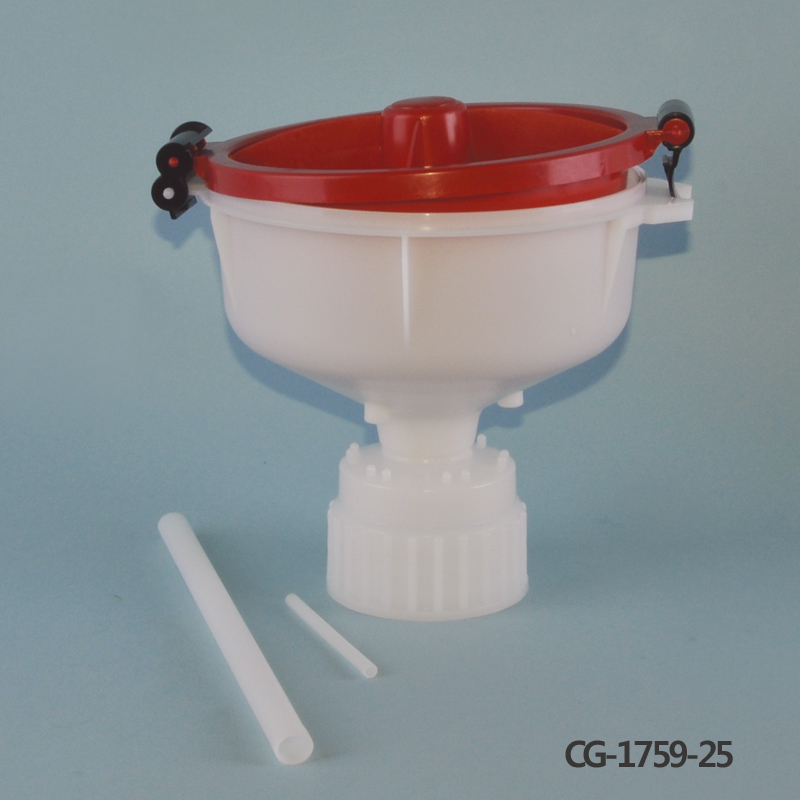

Safety Funnel Only
Cat. No.
Model
Funnel Top
Thread
S01-132-131
SWC301
Φ152 mm
38-430
S01-132-133
CG-1759-01
Φ203 mm
(2 L 용량)
S01-132-135
CG-1759-02
53 mm
S01-132-137
CG-1759-25
83 mm
S01-132-139
CG-1759-03
100 mm

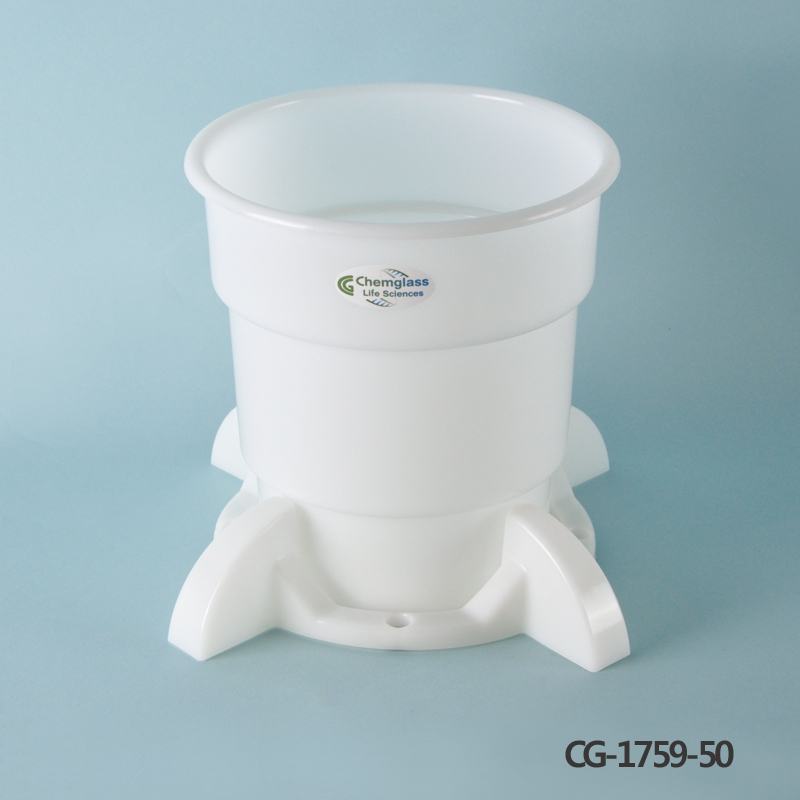

Secondary Container
Cat. No.
Model
재 질
규 격
S01-132-141
CG-1759-50
HDPE
4 L Bottle 용
GL45 Adapter for 38-430 Thread
Cat. No.
Model
Size
S01-132-145
CG-1759-84
상 38-430 Thread → 하 GL45
● 재질 : PP, -10 ~ 135℃ 내열, Autoclavable
Cap Conecting Adapter
Cat. No.
Model
상, Male
하
S01-132-149
SWC-301AD
38-430
Sealing Nut 포함
● 연결하고자 하는 Cap의 중앙에 홀을 뚫어 연결(Φ 28 mm)
● 캡속에서 Sealing Nut로 조일수 있음
HPLC Waste Line Adapter for Safety Funnel
● Funnel 주문시 요청에 의해 장착하여 출고
● LK Labkorea
For

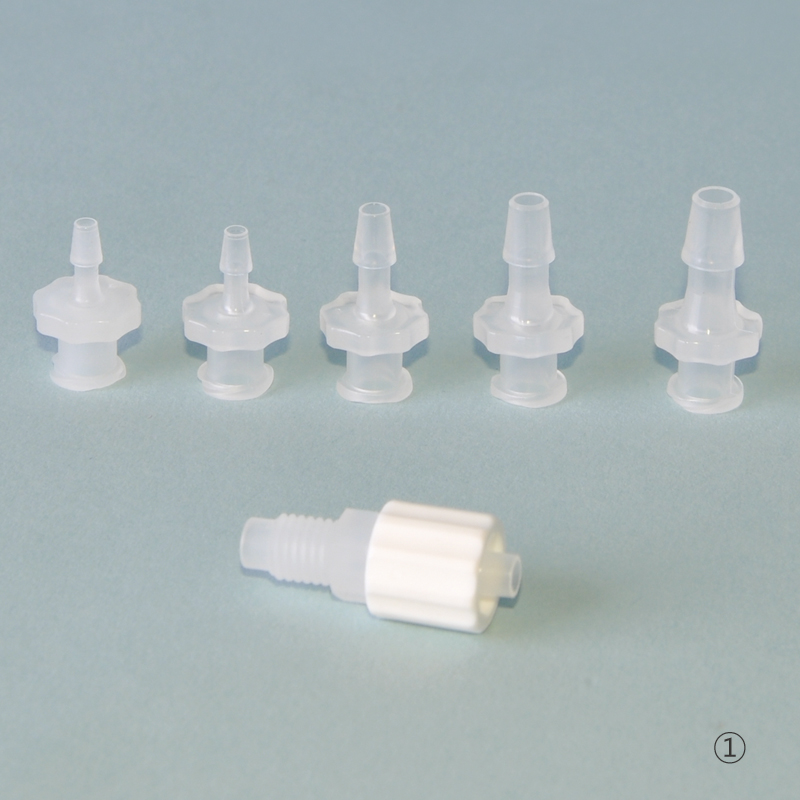

Hose Barb, 호스 연결용 ①
Cat. No.
Model
Connector od
S01-132-151
LB-HPLC159
1/16” / 1.59 mm
S01-132-153
LB-HPLC238
3/32” / 2.38 mm
S01-132-155
LB-HPLC318
1/8” / 3.18 mm
S01-132-157
LB-HPLC397
5/32” / 3.97 mm
S01-132-159
LB-HPLC476
3/16” / 4.76 mm
S01-132-161
LB-HPLC635
1/4” / 6.35 mm
● 재질 : Natural PP
● 최대 8개까지 장착하여 풀고 가능함
● 구성
① Female Luer to 1/4-28 UNF Male Thread ② Male Luer Lock to Hose Barb

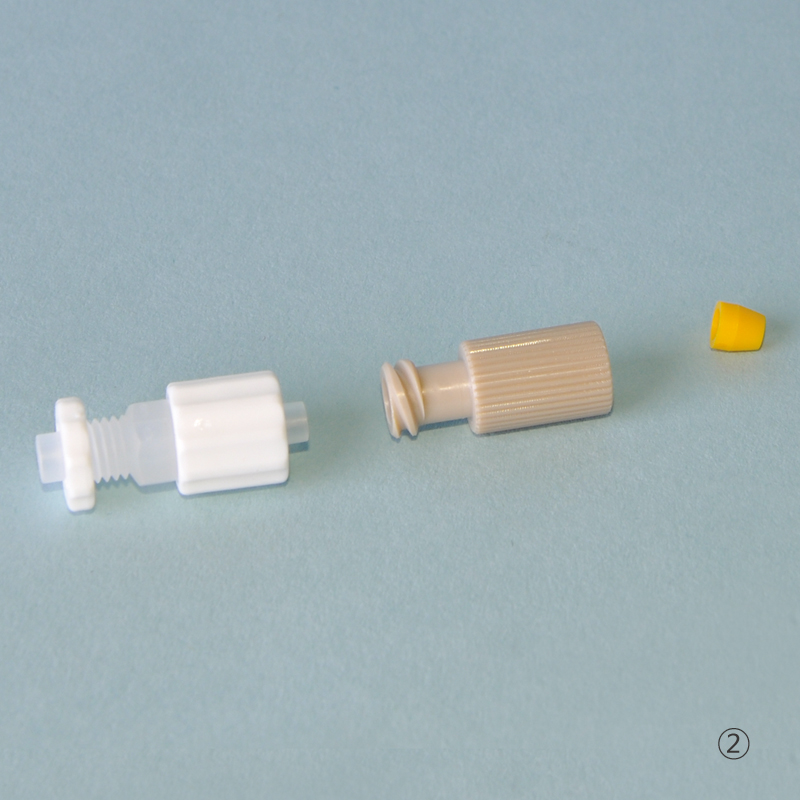

For PTFE Tubing, PTFE와 같은 딱딱한 호스 연결용 ②
Cat. No.
Model
Connector od
S01-132-171
LC-HPLC159
1/16” / 1.59 mm
S01-132-173
LC-HPLC318
1/8” / 3.18 mm
● 구성
① Female Luer Lock to 1/4-28 UNF Male Thread ② Peek Female Luer to 1/4-28 UNF Female Thread ③ Inveted Cone + 1/4-28 UNF Male

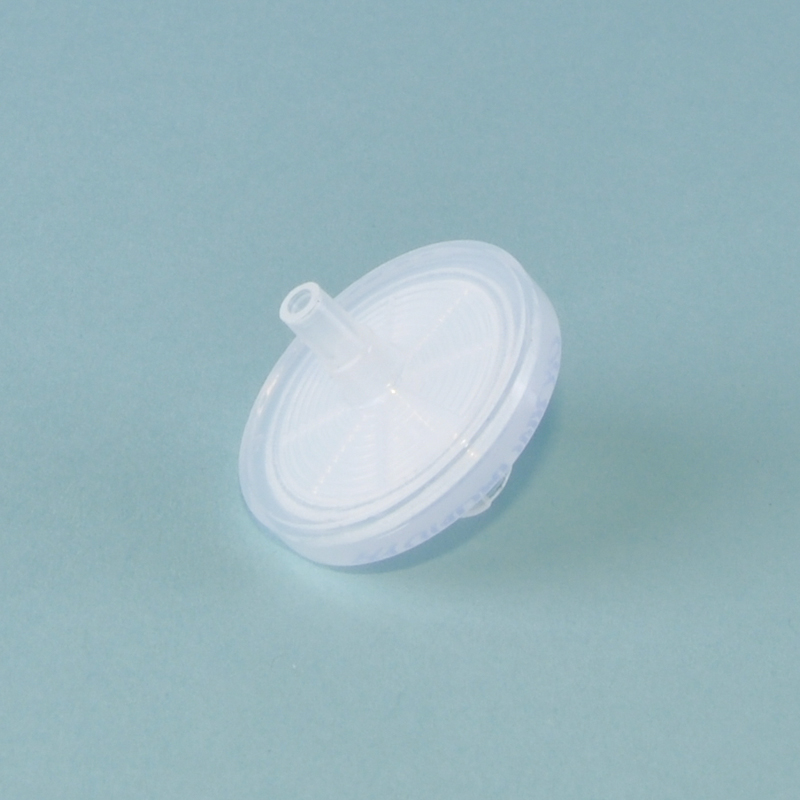

Vent Filter
Cat. No.
Model
Description
S01-132-177
VF-201LK
Vent Filter Only
S01-132-179
VF-201LKS

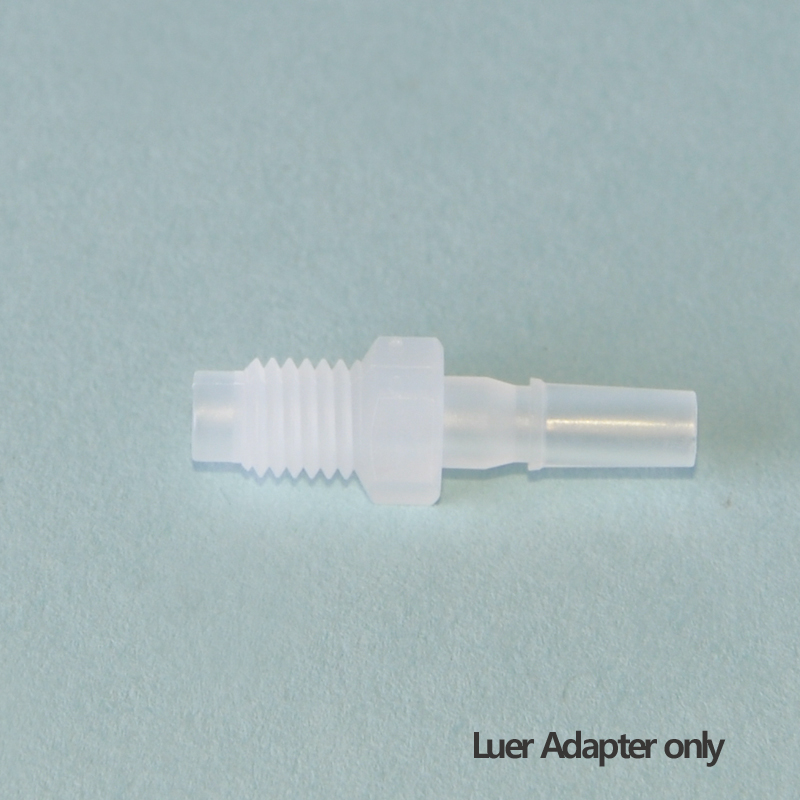

Vent Filter with Luer Adapter
● VF-201LKS : Female Luer Lock to 1/4-28 UNF Male Thread 포함
