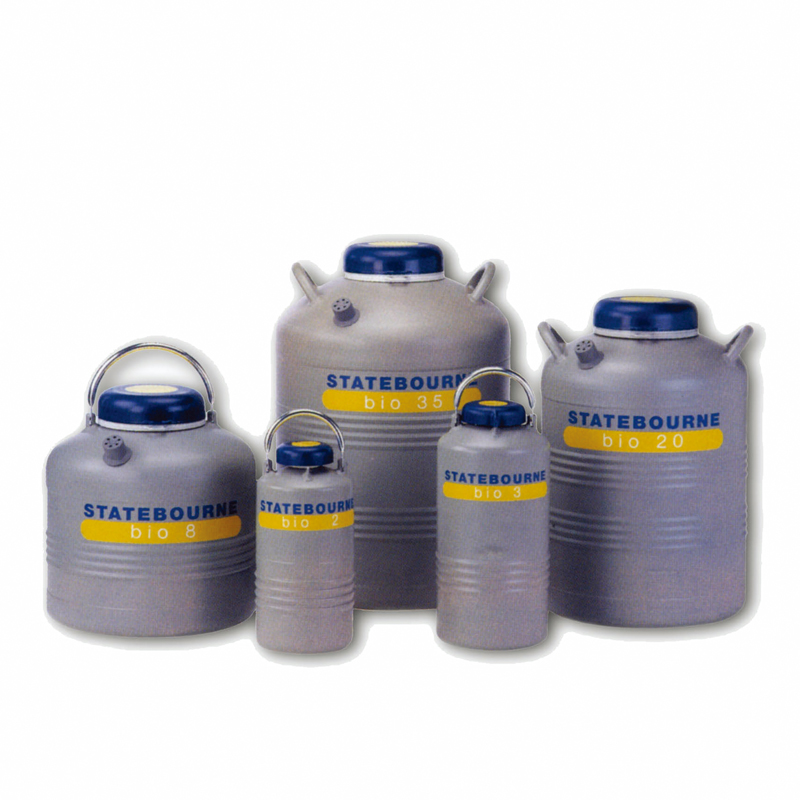

Canister-type Cryosystem / 캐니스터 타입 액체 질소 저장 탱크

■ Strong, lightweight aluminium construction
■ Statebourne

(0개)

Extended Hold-time Model

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	C25-07-095	Bio 2	Cryosystem Canister-type 2 Lit	1/EA	2,293,100원	7 Day	0	단종
	C25-07-100	Bio 3	Cryosystem Canister-type 3 Lit	1/EA	2,536,300원	7 Day	0	단종
	C25-07-105	Bio 8	Cryosystem Canister-type 8 Lit	1/EA	3,000,600원	7 Day	0	단종
	C25-07-110	Bio 10	Cryosystem Canister-type 10 Lit	1/EA	3,124,100원	7 Day	0	단종
	C25-07-115	Bio 20	Cryosystem Canister-type 20 Lit	1/EA	3,512,400원	7 Day	0	단종
	C25-07-120	Bio 35	Cryosystem Canister-type 35 Lit	1/EA	4,350,500원	7 Day	0	단종

Large Capacity Model

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	C25-07-125	Bio 12	Cryosystem Canister-type 12 Lit	1/EA	3,730,100원	7 Day	0	단종
	C25-07-130	Bio 21	Cryosystem Canister-type 21 Lit, 15.6kg	1/EA	4,582,800원	7 Day	0	단종
	C25-07-135	Bio 22	Cryosystem Canister-type 21 Lit, 15.7kg	1/EA	4,582,800원	7 Day	0	단종
	C25-07-140	Bio 34	Cryosystem Canister-type 34 Lit	1/EA	4,800,500원	7 Day	0	단종
	C25-07-145	Bio 36	Cryosystem Canister-type 35 Lit	1/EA	5,497,000원	7 Day	0	단종

Roller Base

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	C25-07-500	9902082	Cryosystem Roller Base for Φ407mm	1/EA	393,500원	3 Day	3
	C25-07-520	9902112	Cryosystem Roller Base for Φ480mm	1/EA	473,100원	3 Day	1

Other Accessory

	Cat. No	Model	Description	Unit	Price (VAT별도)	납기	재고	주문/견적
	C25-07-560	9702000	Cryosystem Cryoguard low level alarm BioRack-series	1/EA	2,642,300원	7 Day	0	단종
	C25-07-570	9701321	Cryosystem Temperature logger BioRack-series	1/EA	3,767,200원	7 Day	0	단종

(0개)

Extended Hold-time Model
Cat. No	Model	용량	Size
C25-07-095	Bio 2	2 L	Φ185×h390 mm
C25-07-100	Bio 3	3 L	Φ216×h464 mm
C25-07-105	Bio 8	8 L	Φ407×h475 mm
C25-07-110	Bio 10	10 L	Φ305×h640 mm
C25-07-115	Bio 20	20 L	Φ407×h640 mm
C25-07-120	Bio 35	35 L	Φ480×h730 mm

● With narrow neck openings for high thermal efficiency
● This models offer long tern storage possibilties with minimal LN2 consumption

상세 규격 표
Cat. No.	C25-07-095	C25-07-100	C25-07-105	C25-07-110	C25-07-115	C25-07-120
Model	Bio 2	Bio 3	Bio 8	Bio 10	Bio 20	Bio 35
Capacity	2 L	3 L	8 L	10 L	20 L	35 L
Evaporation Rate	0.08 L/day	0.11 L/day	0.10 L/day	0.10 L/day	0.10 L/day	0.10 L/day
Static Hoding Time	25 day	27 day	80 day	100 day	200 day	350 day
Weight Empty	3 kg	4.3 kg	8.6 kg	7.9 kg	11.1 kg	18.6 kg
Weight Full	4.6 kg	6.7 kg	15.1 kg	16 kg	27.3 kg	46.9 kg
Neck Diameter	32 mm	51 mm	51 mm	51 mm	51 mm	51 mm
Roller Base	×	×	O	×	O	O
Number of Canister	3	6	6	6	6	6
Canister Dia. / Height	25 / 120 mm	38 / 120 mm	38 / 120 mm	38 / 275 mm	38 / 275 mm	38 / 275 mm
2ml Vial Capacity	×	×	×	180 ea	180 ea	180 ea
Straw Capa. 0.25 / 0.5cc	360 / 120ea	1200 / 500ea	1200 / 500ea	2400 / 1000ea	2400 / 1000ea	2400 / 1000ea

Large Capacity Model
Cat. No	Model	용량	Size
C25-07-125	Bio 12	12 L	Φ408×h470 mm
C25-07-130	Bio 21	21 L	Φ480×h579 mm
C25-07-135	Bio 22	21 L	Φ480×h537 mm
C25-07-140	Bio 34	34 L	Φ480×h710 mm
C25-07-145	Bio 36	35 L	Φ480×h710 mm

● With wide neck openings for easy access
● This models allow the storage of large quantities of biological material

상세 규격 표
Cat. No.	C25-07-125	C25-07-130	C25-07-135	C25-07-140	C25-07-145
Model	Bio 12	Bio 21	Bio 22	Bio 34	Bio 36
Capacity	12 L	21 L	21 L	34 L	35 L
Evaporation Rate	0.19 L/day	0.19 L/day	0.28 L/day	0.18 L/day	0.30 L/day
Static Hoding Time	63 day	110 day	75 day	189 day	117 day
Weight Empty	10.8 kg	15.6 kg	15.7 kg	17.8 kg	19.1 kg
Weight Full	20.4 kg	32.6 kg	32.7 kg	45.3 kg	47.4 kg
Neck Diameter	70 mm	89 mm	120 mm	89 mm	120 mm
Roller Base	O	O	O	O	O
Number of Canister	9	6	10	6	10
Canister Dia. / Height	46 / 120mm	68 / 120mm	73 / 120mm	69 / 275mm	73 / 275mm
2ml Vial Capacity	×	×	×	684 ea	1020 ea
Straw Capa. 0.25 / 0.5cc	4680 / 2200ea	4920 / 2300ea	8200 / 3800ea	9840 / 4200ea	16400 / 7800ea

Accessory

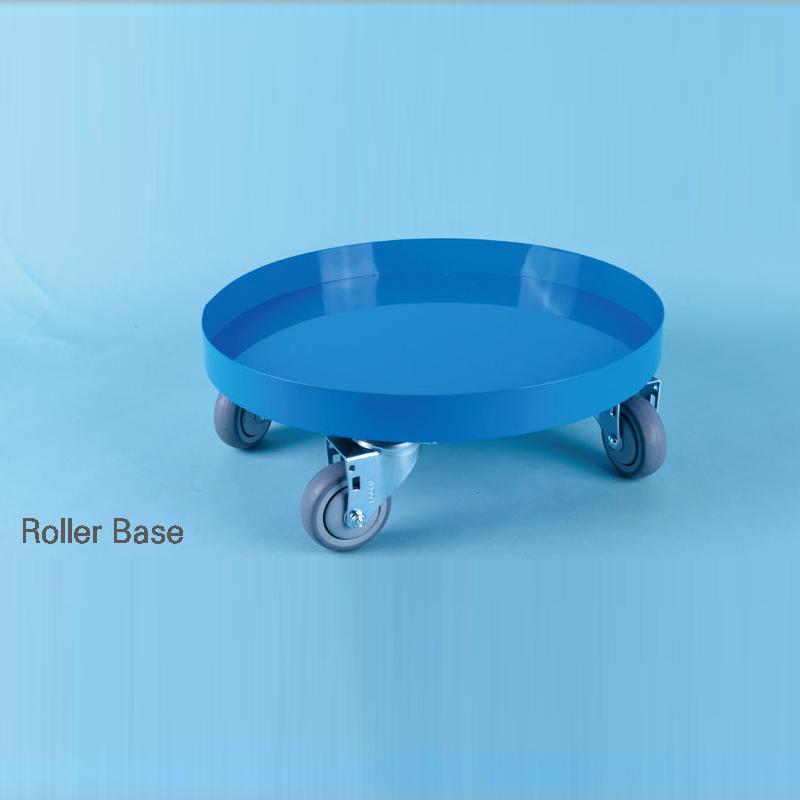

Roller Base
Cat. No	Model	규격
C25-07-500	9902082	for Bio 8, 20, 12
C25-07-520	9902112	for Bio 21, 22, 34, 35, 36

Other Accessory
Cat. No	Model	규격
C25-07-560	9702000	Cryoguard low level alarm
C25-07-570	9701321	Temperature Logger
