 15 Point Stirring Heating Block / 15구 교반식 히팅 블럭, 2 mag |
|
| Optional Accessory |
|
|
 |
|
|
|
|

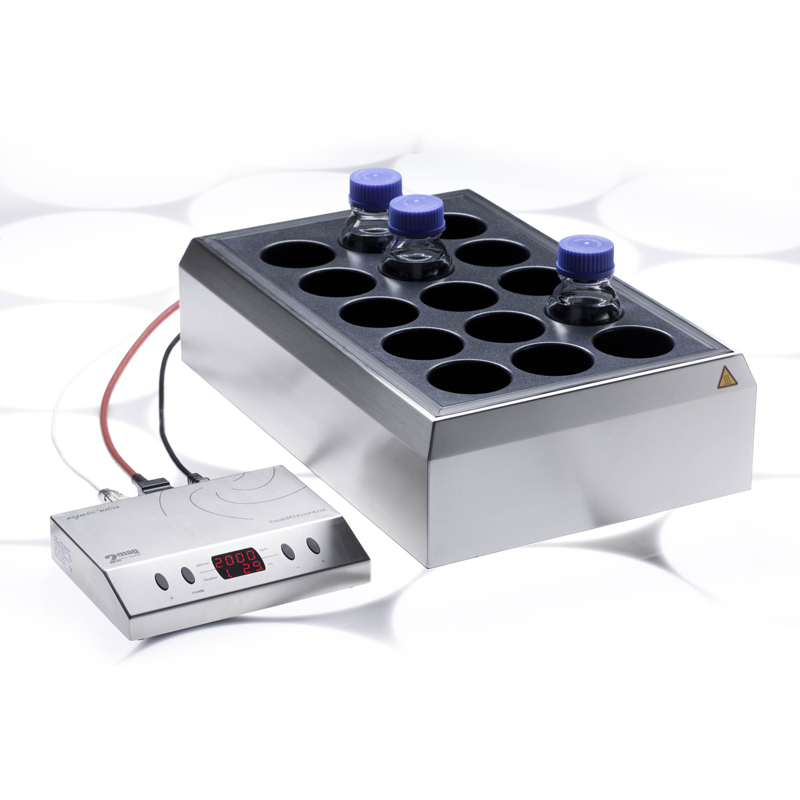

15 Point Stirring Heating Block
| Cat. No |
Model |
Hole Size |
Stirring Volume |
| H04-75-333 |
63100 |
Φ57.5×h48 mm |
1 ~ 150 ml |
| H04-75-340 |
63250 |
Φ71.5×h78 mm |
1 ~ 400 ml |
상세 규격 표
| Cat. No. |
H04-75-333 |
H04-75-340 |
| Model |
63100 |
63250 |
| Stirring Point |
15 |
| Point Distance |
65 mm |
84 mm |
| Hole Size |
Φ57.5×h48 mm |
Φ71.5×h78 mm |
| Stirring Volume |
1 ~ 150 ml |
1 ~ 400 ml |
| 전용 용기 |
100 ml Lab. Bottle |
250 ml Lab. Bottle |
| Stirring Power |
40 W |
| Power Setting |
4 ~ 40 W (10 Step) |
| Max. Temp. |
Max. 200℃ |
| Speed Range |
100 ~ 2000 rpm |
| Size |
w280×d430×h120 mm |
w335×d515×h150 mm |
| Weight |
23 kg |
31 kg |
| Power |
230V, 50/60 Hz |
|
|
|
|
