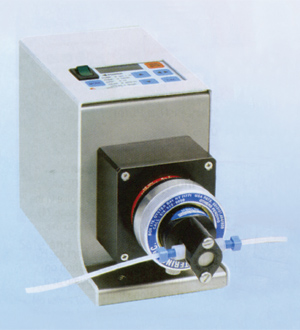

 Micro Piston Pump / 마이크로 피스톤 펌프 |
|
|
 |
|
|
|
|
* Pump Head 재질 : Ceramic, PVDF
* Operation Mode
- Pumping by Drive Speed (rpm)
- Pumping by Flow Rate (ml/min)
- Adjustable Stroke Volume
- Dispensing by Volume (ml)
- Dispensing by Time (0.1s up to 999 hrs)
- Dispensing by Volume within a pre - set time
- Interval dispensing by volume with a pause
- Interval dispensing by time with a pause
- Setting the number of dispensing cycles
- Pause time setting (from 0.1s up to 999hrs)
- Piston stroke back - steps for drip - free dispensing
- Reversible Rotation Direction
* Speed Range : 40 ~ 1800 rpm (0.1 rpm 단위), 차압 : Max. 6.9 Bar
* Size : w100 x d250 x h135 mm
* DC 50W Motor, 110V ~ 230V, 50/60Hz
* Calibration 및 RS232 기능 기본 장착
| Cat. No. |
Model |
Flow Rate |
Volume/Rev. |
Head |
| P06-236-306 |
Reglo-RH00 |
0.1 ~ 45 ml/분 |
2.5 ~ 25 ul |
RH00 |
| P06-236-312 |
Reglo-RH0 |
0.2 ~ 90 ml/분 |
5 ~ 50 ul |
RH0 |
| P06-236-318 |
Reglo-RH1 |
0.4 ~ 180 ml/분 |
10 ~ 100 ul |
RH1 |
|
|
|
|
|
 |
|
Micro Tubing Pump / 마이크로 튜빙 펌프
|
|
|
| | | | | | | | |
|
|
|
