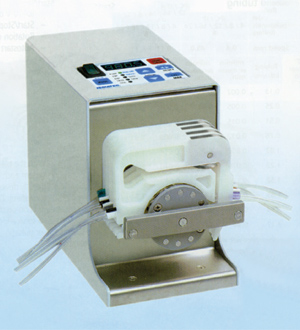

 Micro Tubing Pump / 마이크로 튜빙 펌프 |
|
|
 |
|
|
|
|
* 6 Roller (High Flow Rate용), 12 Roller (Less Pulsation)
* Tubing Type : 3 - Stop Color-coded Tubing, 0.13 ~ 3.17 mm i.d.
* Operation Mode
- Pumping by Drive Speed (rpm)
- Pumping by Flow Rate (ml/min, ul/.min)
- Dispensing by Volume (ml)
- Reversible Rotation Direction
- Factory - set flow rates for all available tube sizes
- Dispensing by time (0.1s up to 999 hrs)
- Interval dispensing by volume with a pause
- Interval dispensing by time with a pause
- Setting the number of dispensing cycles
- Pause time setting (from 0.1s up to 999 hrs)
- Piston stroke back - steps for drip - free dispensing
- Roller back - steps for drip - free dispensing
* Speed Range : 1.6 ~ 160 rpm (2 - channel), 1.0 ~ 100 rpm (4 - channel)
* 차압 : Max. 1.0 Bar
* Size : w178 x d100 x h135 mm (2 - channel), w190 x d100 x h135 mm (4 - channel)
* DC 20W Motor, 110V ~ 230V, 50/60 Hz
* Calibration 및 RS232 기능 기본 장착
| Cat. No. |
Model |
Flow Rate |
Channel |
Roller |
| P06-236-406 |
Reglo-MS26 |
0.003 ~ 68 ml/분 |
2 |
6 |
| P06-236-412 |
Reglo-MS28 |
0.002 ~ 57 ml/분 |
8 |
| P06-236-418 |
Reglo-MS212 |
0.002 ~ 38 ml/분 |
12 |
| P06-236-424 |
Reglo-MS46 |
0.002 ~ 43 ml/분 |
4 |
6 |
| P06-236-430 |
Reglo-MS48 |
0.002 ~ 35 ml/분 |
8 |
| P06-236-436 |
Reglo-MS412 |
0.001 ~ 24 ml/분 |
12 |
|
|
|
|
|
 |
|
Micro Piston Pump / 마이크로 피스톤 펌프
|
|
|
| | | | | | | | |
|
|
|
