 IsotempⓇ Basic ULT Freezer, 기본형 - IsotempⓇ Basic ULT Freezer |
|
| IsotempⓇ ULT Freezer |
|
|
 |
|
|
|
|

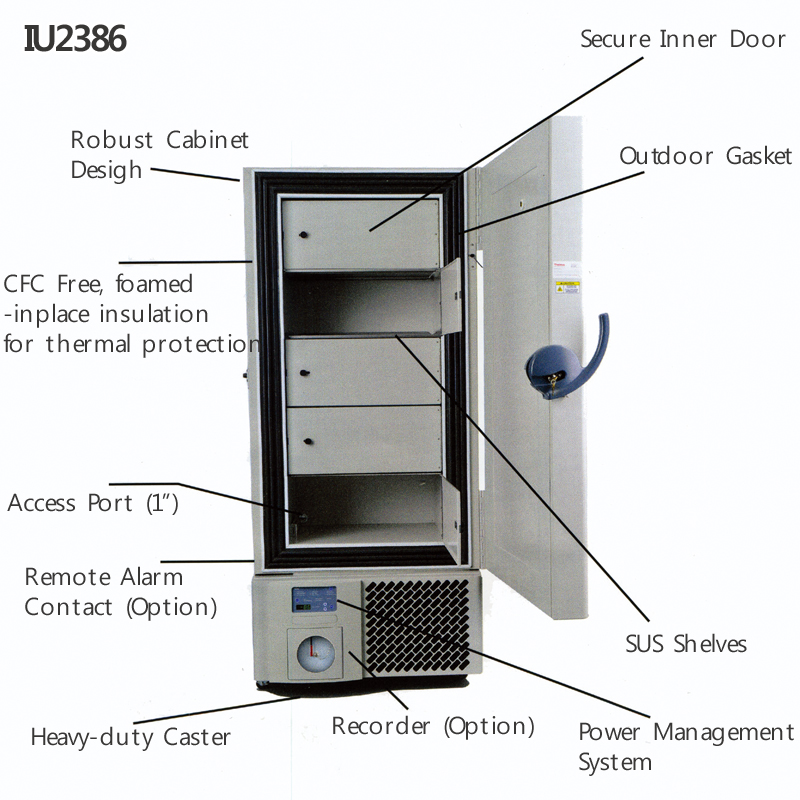

* 내부는 칸칸으로 나누어져 있으며, 각각 Inner Door 부착되어 있어 메인 문을 열어도 외부 공기의 내부 유입을 최소화 시켜줌
* Alarm / Monitor System (Isotemp Basic Type)
(Power Failure, High or Low Temp., Probe Failure, Door Open, Clean Gasket, Low Battery, Hot Condenser and Clean Filter)
* Voltage Buck / Boost
- Protective device used to correct low or high voltage into the unit
- Protects and extends the life of electrical components
* Optional Φ152 mm Chart Recorder for Validation
* Temperature Range : -50℃ ~ -86℃
* Battery Backup 기능 : 정전시 Control Panel을 사용할 수 있도록 해줌
* Optional Integrated LN2 or CO2 Back-up System
Isotemp® Basic ULT Freezer, 기본형
Temperature Range : -50℃ ~ -86℃
| Cat. No |
Model |
Capacity |
| F06-55-111 |
IE1386V |
368.1 L |
| F06-55-121 |
IE1786V |
489.9 L |
| F06-55-131 |
IE2386V |
651.3 L |

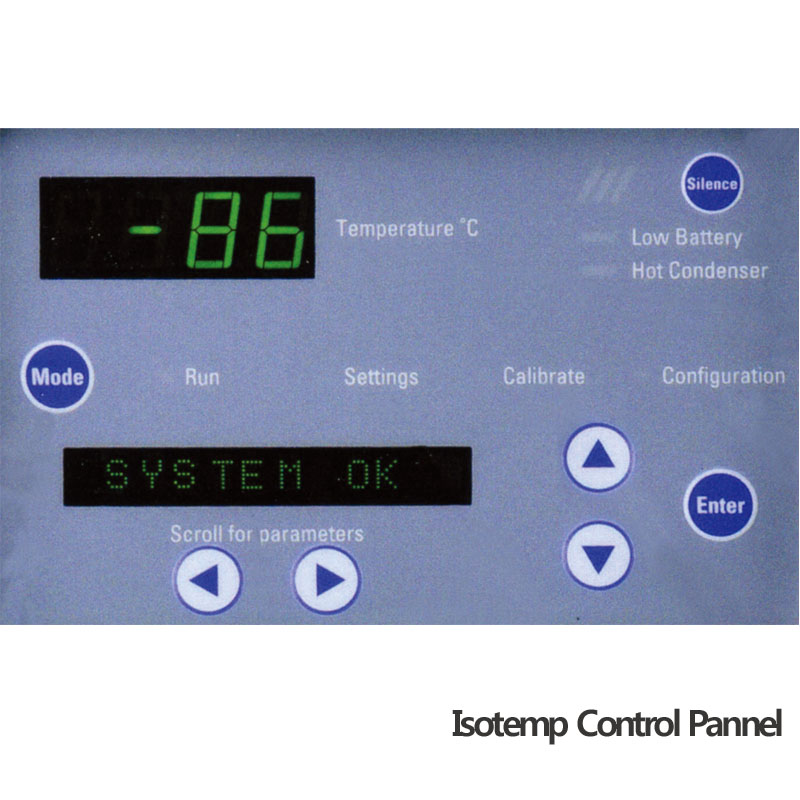

- ● Isotemp® Basic Control 사양
- Audible/Visual Alarms
- Low Battery and Hot Condenser Indicators
- Calibrate : Calibrate control, probe temp. and sample probe temp. (option)
- Setting : Temp., set point, over and undertemp. alarm, back up system (option)
- Mode : Select run, settings, calibrate or configuration
- Temp. : Displays actual and sample probe (option) temperatures

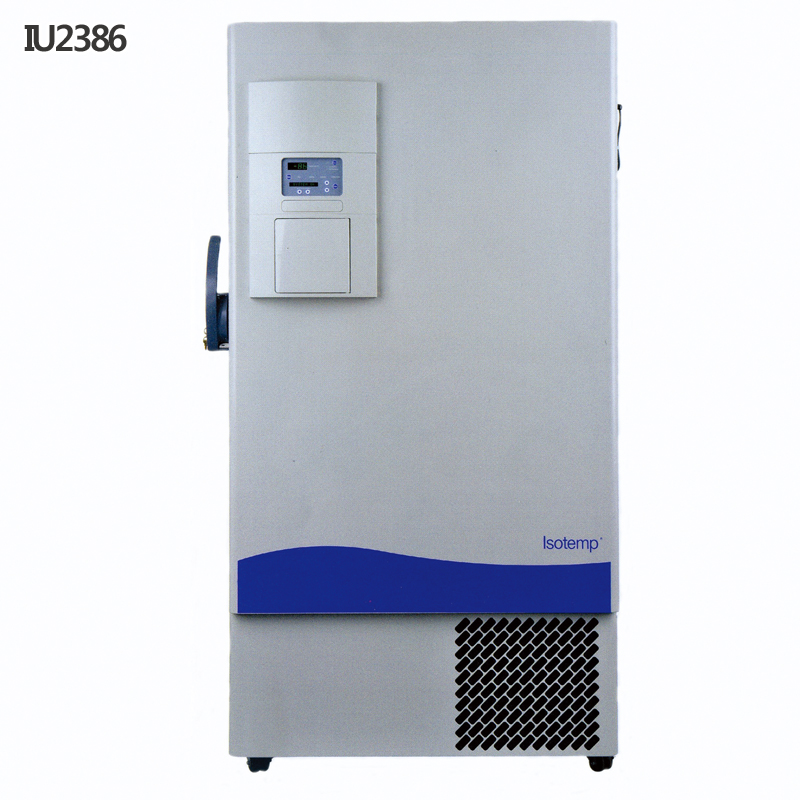

Isotemp® ULT Freezer, 표준형 Temperature Range : -50℃ ~ -86℃
| Cat. No |
Model |
Capacity |
| F06-55-211 |
IU1386V |
368.1 L |
| F06-55-221 |
IU1786V |
489.9 L |
| F06-55-231 |
IU2386V |
651.3 L |
| F06-55-241 |
IU2886V |
792.8 L |
- ● Standard RS232 and 4-20mA Analog Output
- Provide temperature data to independent monitoring devices
● Isotemp® Control 사양
- Isotemp® Basic Control 사양
- Configuration : Configure access code, serial output, temperature alarm test
and system battery test
- Massage Center : 본 장치의 운전 상태를 보여줌
| Model |
IE1386V |
IE1786V |
IE2386V |
- |
| IU1386V |
IU1786V |
IU2386V |
IU2886V |
| 온도 범위 |
-50℃ ~ -86℃ |
| 용량 |
약 368.1 L |
약 489.9 L |
약 651.3 L |
약 792.8 L |
외부 치수
(w x d x h) |
846×836×1976 (mm) |
846×940×1976 (mm) |
1036×940×1976 (mm) |
1189×940×1976 (mm) |
내부 치수
(w x d x h) |
584×490×1308 (mm) |
584×643×1308 (mm) |
777×643×1308 (mm) |
930×686×1308 (mm) |
| 중량 |
약 323 kg |
약 376 kg |
약 426 kg |
약 494 kg |
| 냉매 |
CFC-Free Refrigerant |
| Refrigeration |
2×1 HP (2545 BTUH) |
| 전원 |
AC220V, 50/60Hz |
|
|
|
|
|
 |
|
