 Ultra-Low Temperature Freezer, -86℃ / 초저온 냉동고, Chest Type |
|
|
 |
|
|
|
|
* Microprocessor Temperature Control
* 환경을 중시 Non 프레온 냉매사용
* Optional Φ152 mm Chart Recorder for Validation
* Numerous audible/visual alarms as well as high/low alarm test, offering peace of mind monitoring for
sample protection
* Highly visible display, intuitive controls and simplified programming and to check and monitor parameters and conditions
* Robust cabinet design constructed of high-strength steel with corrosion-resistant coating for long-life durability
* Convenient, hinged air filter grill allows for easy access for inspection, cleaning and/or changing
* Temperature Range : -50℃ ~ -86℃
* Battery Backup 기능 : 정전시 Control Panel을 사용할 수 있도록 해줌
* Standard RS232 and 4-20mA Analog Output
- Provide temperature data to independent monitoring devices
* Massage Center : 본 장치의 운전 상태를 보여줌
* Φ25 mm Diameter access port for easy access through freezer wall
* Voltage Buck / Boost
- Protective device used to correct low or high voltage into the unit
- Protects and extends the life of electrical components
* Optional Integrated LN2 or CO2 Back-up System

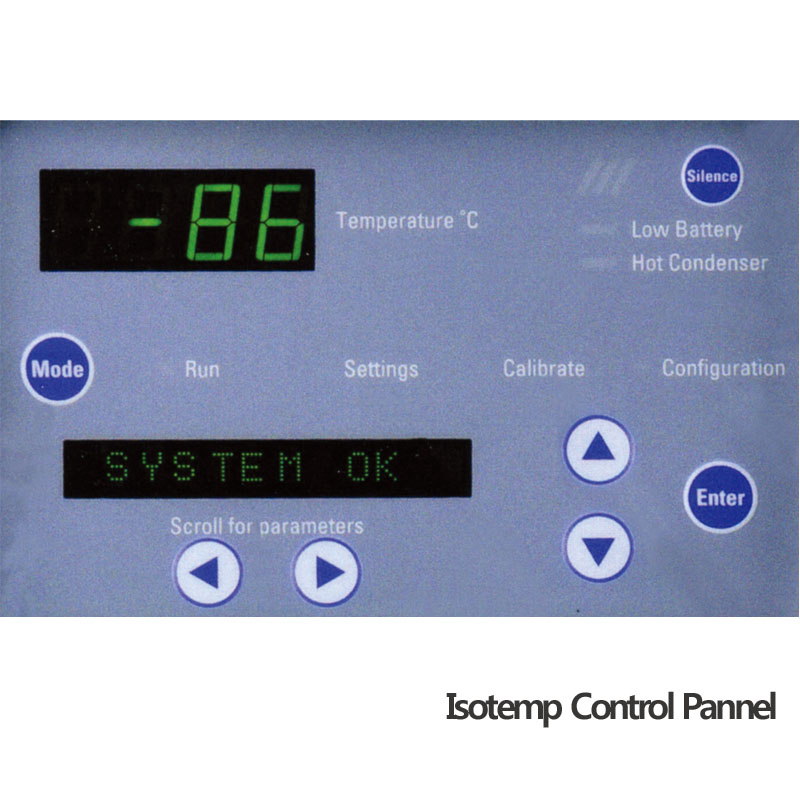

* Isotemp® Control 사양
- Isotemp® Basic Control 사양
- Configuration : Configure access code, serial output, temperature alarm test and system battery test
- Massage Center : 본 장치의 운전 상태를 보여줌
Temperature Range : -50℃ ~ -86℃
| Cat. No |
Model |
Capacity |
| F06-55-311 |

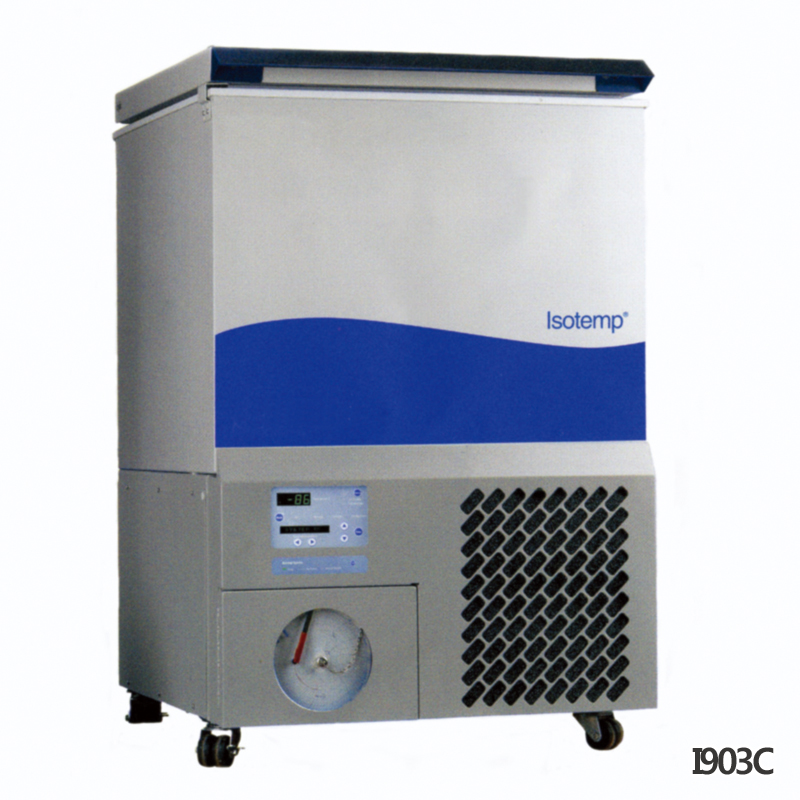

I903CV |
84.9 L |
| F06-55-321 |

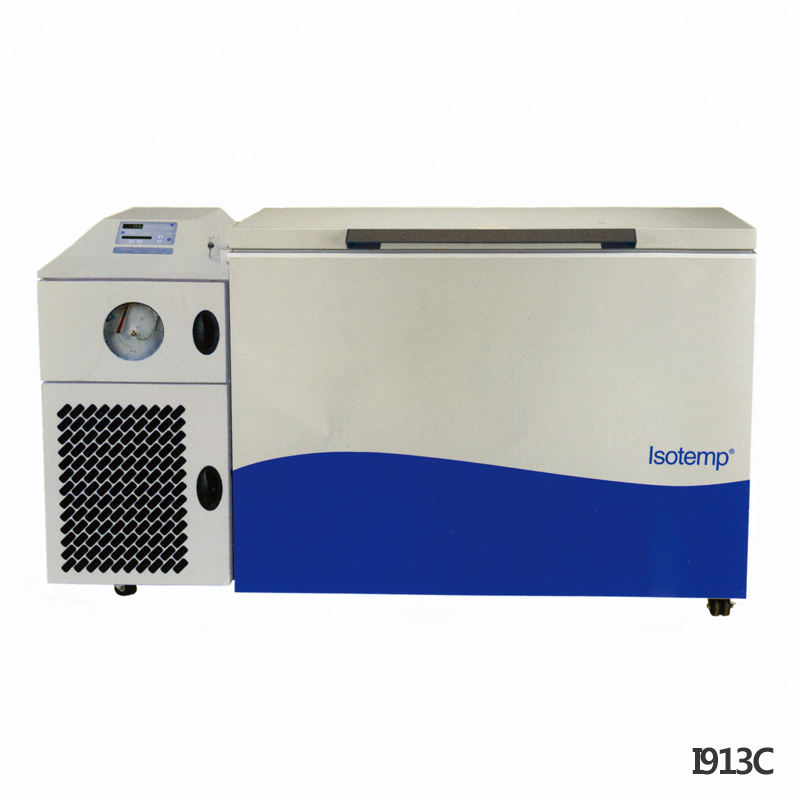

I913CV |
359.6 L |
| F06-55-331 |
I917CV |
481.4 L |
| F06-55-341 |
I920CV |
566.3 L |
Specification
| Model |
F06-55-311 |
F06-55-321 |
F06-55-331 |
F06-55-341 |
| I903CV |
I913CV |
I917CV |
I920CV |
| 온도 범위 |
-50℃ ~ -86℃ |
| 용량 |
약 84.9 L |
약 359.6 L |
약 481.3 L |
약 566.3 L |
외부 치수
(w x d x h) |
724×759×1113 (mm) |
1829 X 848X 1029 (mm) |
2225×859×1029 (mm) |
2438×848×1029 (mm) |
내부 치수
(w x d x h) |
470×470×419 (mm) |
1080×470×711 (mm) |
1494×470×711
(mm) |
1689×470×711
(mm) |
| 중량 |
약 196 kg |
약 325 kg |
약 372 kg |
약 378 kg |
| 냉마 |
CFC-Free Refrigerant |
| Refrigeration |
2×1 HP (2545 BTUH) |
| 전원 |
AC220V, 50/60 Hz |
|
|
|
|
|
 |
|
