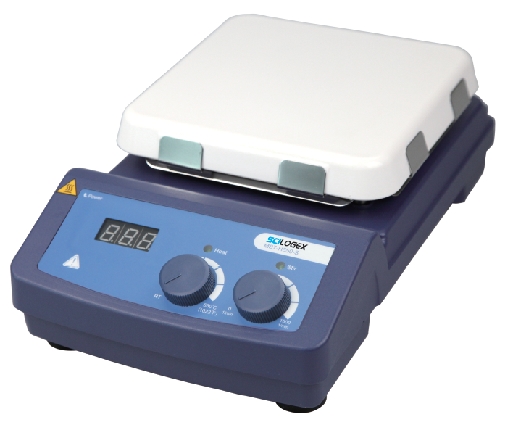

MS7-H550-S LED Digital Magnetic Hotplate Stirrer Features:
- Easy-to-read LED display
- Heat only, stir only or heat and stir together functions
- Low temperature stability
- Accessory PT-1000 sensors for medium temperature control available
- Electronic speed control for constant speed even during changes in load
- Maintenance free brushless motor for long life
- High magnetic adhesion
- Hot warning above 50째C
- 2 YEAR WARRANTY
MS7-H550-S LED Digital Magnetic Hotplate Stirrer Specifications:
Hotplate/Stirrer
|
: |
MS7-H550-S |
| Temp range |
: |
Ambient - 550째C |
| Speed range |
: |
0-1500rpm (Analog)
|
| Temp display accuracy |
: |
짹1째C |
| Temp control accuracy with PT- 1000 Sensor |
: |
짹1째C |
Temp increments
|
: |
5째C |
| Heat output |
: |
1000W |
| Max. Stirring Qty. |
: |
10 Liters |
| Heating rate (1 liter water) |
: |
6K/min |
| Heat display |
: |
LED |
| Motor type |
: |
Shaded Pole
|
| Plate size |
: |
7 x 7' |
| Plate material |
: |
Ceramic-Glass |
| Dimensions |
: |
14'L x 8.5'W x 4.5'H |
| Weight |
: |
11lbs |
| Voltage |
: |
110Volts 50Hz/60Hz |
MS7-H550-S LED Digital Magnetic Hotplate Stirrer Ordering Information:
| Catalog No. |
: |
Model |
| 81322100 |
: |
MS7-H550-S LED Digital Magnetic Hotplate Stirrer, with Ceramic-Glass Hotplate, 110V, 50Hz/60Hz |
MS7-H550-S LED Digital Magnetic Hotplate Stirrer Accessories:
| Catalog No. |
: |
Description |
|
| 18900016 |
: |
SCILOGEX PT1000 Sensor |
 |
|
18900136
|
:
|
SCILOGEX PT1000 Sensor with glass protective sleeve for use with corosive chemicals
|
|
|
18900017
|
:
|
SCILOGEX PT1000 Sensor Support Stand & Clamp
|
 |
Click to Download PDF: SCILOGEX Heating, Stirring, Mixing & Distilling Catalog
|
